Beveled Clamp for a 90° Glass-to-Glass Corner

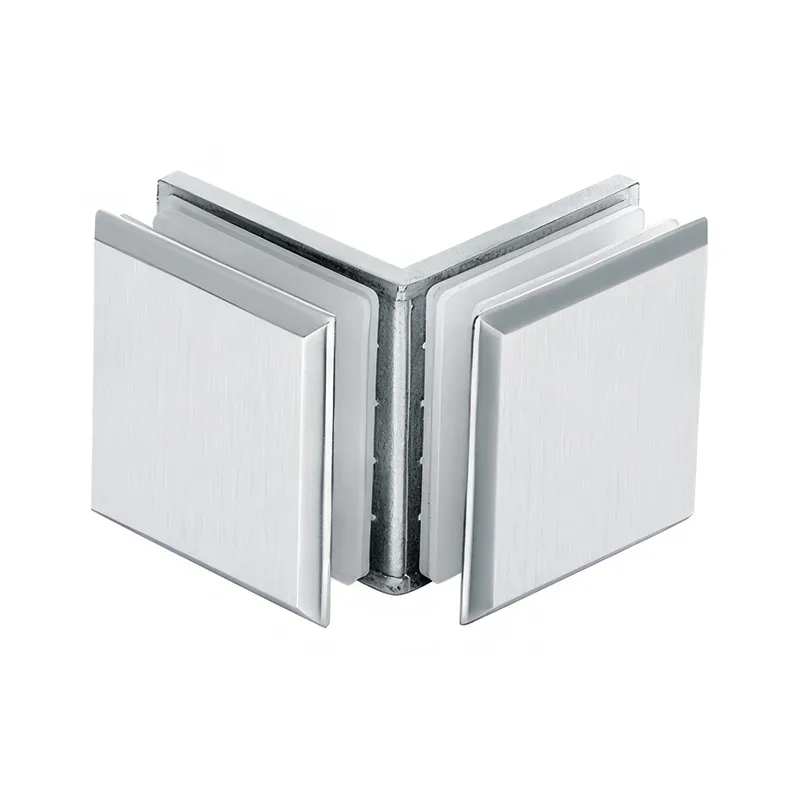

SSG290 connects two fixed shower panels at a right angle. This 90 degree beveled stainless steel glass clamp uses sloping face borders to coordinate with beveled shower hardware. SSG090 is the square-profile alternative. For wall attachment, choose a wall mount model such as SSG201 or SSG202 according to the fixing arrangement.
Features and Specifications
| Model | SSG290 |
|---|---|
| Material | Cast stainless steel; 304 and 316 options available |
| Mounting type | Glass-to-glass |
| Connection angle | 90° |
| Profile | Beveled |
| Glass type | Monolithic tempered glass |
| Glass thickness | 6–12 mm |
| Application | Fixed shower glass panels |
| Glass preparation | Round holes required; confirm hole diameter and position against the model-specific fabrication drawing |
| Finishes | Brushed Stainless Steel, Polished Stainless Steel, Matte Black |
Glass Preparation and Installation
Prepare the round holes before tempering the glass. Confirm the hole diameter and position for the model being ordered, and use the appropriate gaskets for the selected glass thickness.
Align the fixed panels to the specified connection angle before securing the clamp. These fittings secure fixed glass panels; select hinges separately for the moving door.
Material and Finish Options
Specify 304 or 316 stainless steel when ordering. Choose Brushed Stainless Steel, Polished Stainless Steel or Matte Black to coordinate with the other shower fittings. Confirm the material grade and finish together for the project.
