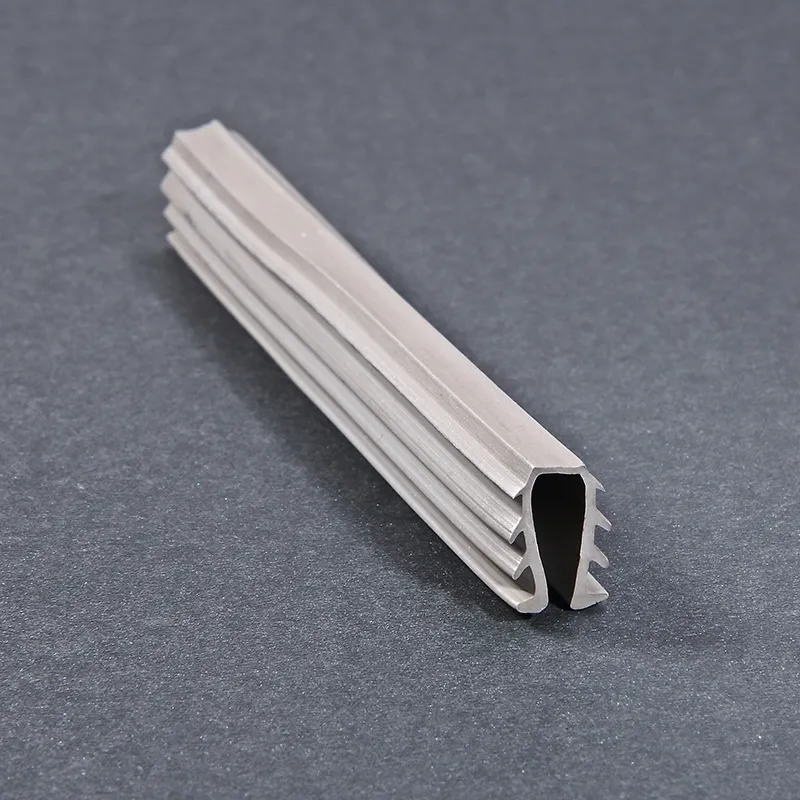

EVA Shower Header U Channel Liner

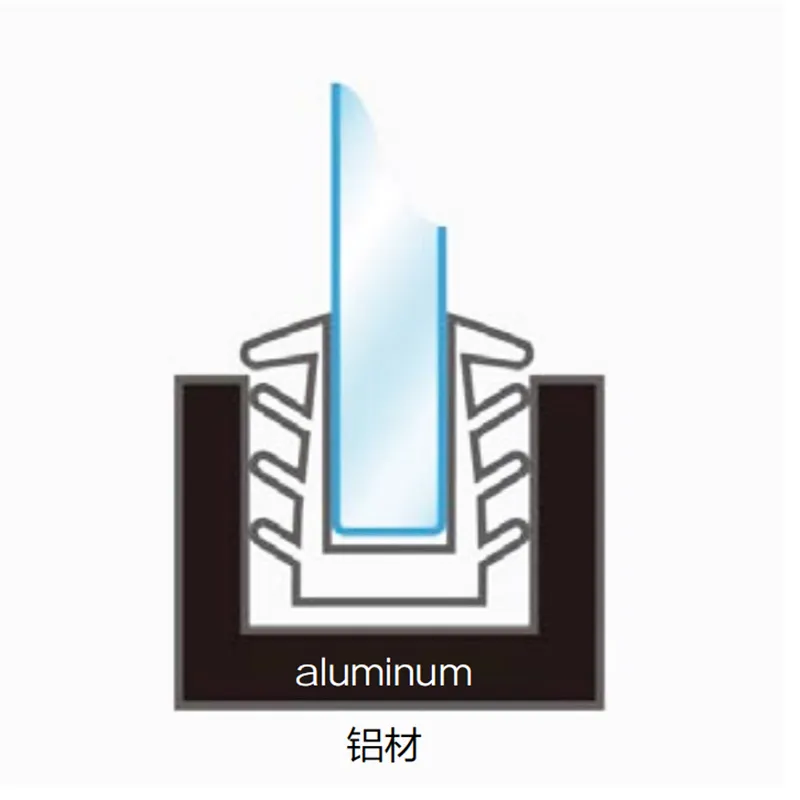

MAXGO PS50 is an EVA shower header U channel liner for a compatible glass-and-aluminum channel assembly. The U-shaped section surrounds the glass edge, while exterior ribs engage with the surrounding metal channel.
Profile and application
- Material: Clear EVA.
- Cross-section: U-shaped EVA liner with multiple external retaining ribs.
- Typical application: Matching shower header or glazing channel, as illustrated by the glass-and-aluminum section in the gallery.
Sizes and selection
Use the product gallery to compare the section and installation arrangement. Request a dimensioned specification for your required configuration.
Specify the glass thickness and aluminum-channel internal width and depth. Confirm the exact liner cross-section shown in the gallery before ordering; similarly shaped liners are not automatically interchangeable.
Installation checks
Use the liner within the specified channel system and check that both glass and insert seat uniformly. The EVA liner cushions the interface; the surrounding hardware must provide the required structural support.
Check the finished enclosure for splash control. Seal performance depends on the joint clearance, door alignment and water direction. Clean with mild soapy water and a soft cloth.
Compare profiles
Compare PS48 for a different ribbed PVC glazing insert section. Browse the PVC shower seal range for other cross-sections.
For a quotation, send model PS50, the required profile size, finished length and quantity, together with a drawing or photo of the installation.
