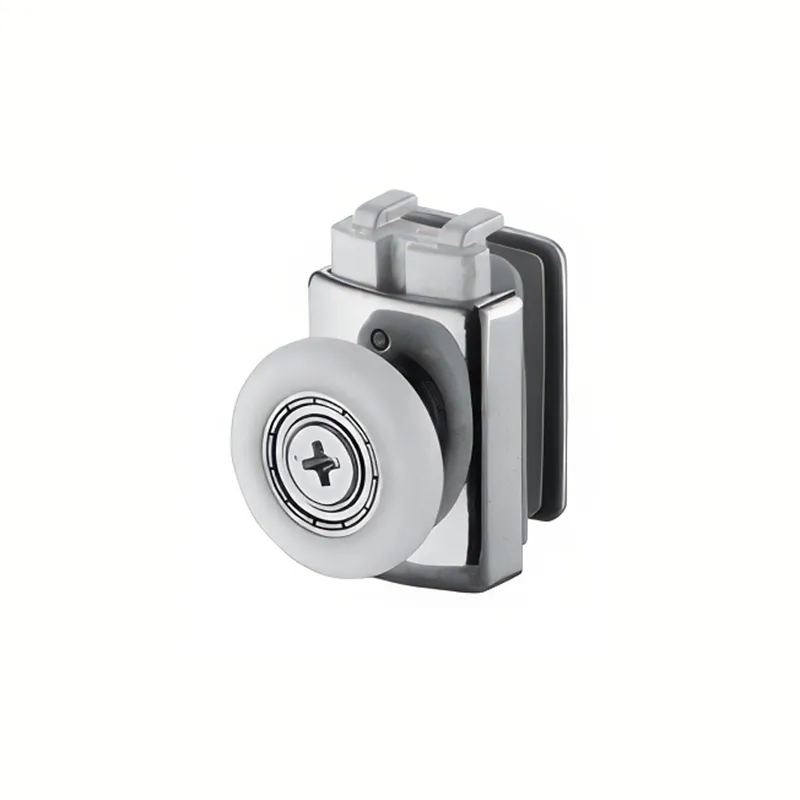

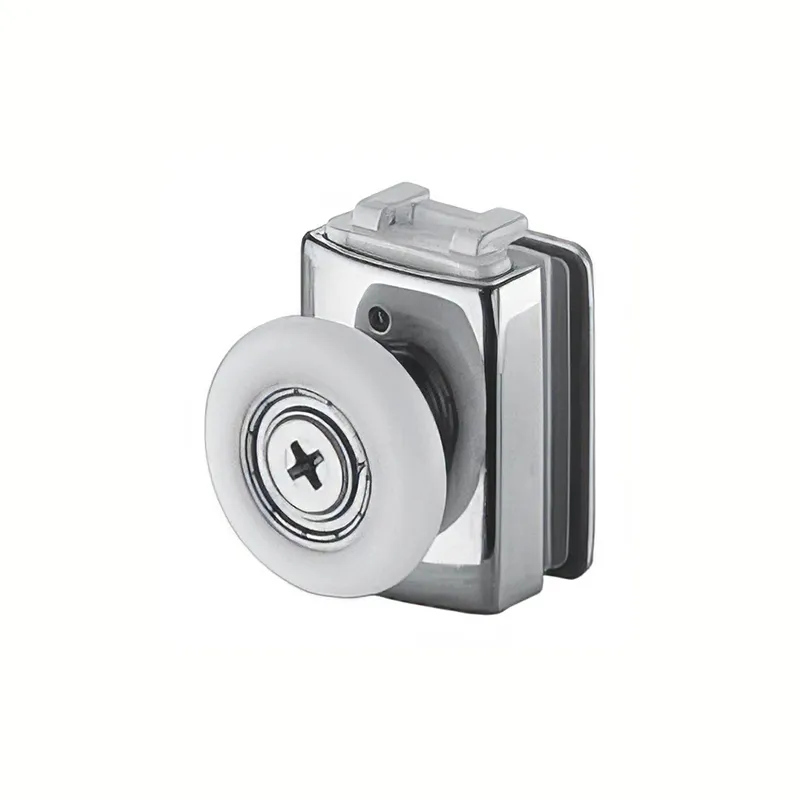

MAXGO DRZ01 zinc alloy single shower rollers are designed for 6–8 mm glass sliding doors. Steel bearings and nylon wheel outer surfaces are combined with adjustable upper assemblies and quick-release lower assemblies.
Features and Specifications
- Body: zinc alloy.
- Bearings: steel.
- Wheel outer material: nylon.
- Roller design: single-wheel assembly.
- Glass thickness: 6–8 mm.
- Wheel diameters: multiple sizes available; specify the required diameter when ordering.
- Maximum glass door weight: 20 kg with two upper and two lower roller assemblies per door.
- Upper rollers: height adjustable.
- Lower rollers: quick release for door removal and cleaning.
Matching DRZ01 to the Enclosure

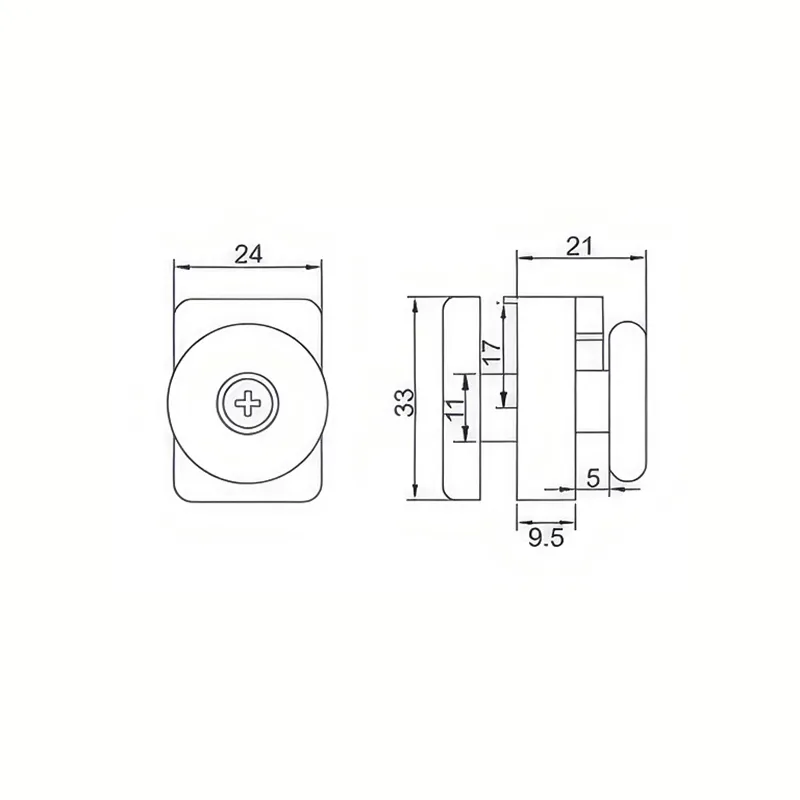

Check the DRZ01 body shape, wheel position and glass fixing dimensions against the enclosure drawing. For replacement work, compare the original roller with the technical drawing before choosing a wheel diameter.
DRZ01 and DRZ03 use single-wheel assemblies; DRZ04, DRZ05, DRZ07 and DRZ09 use double-wheel assemblies. Within each group, the main differences are body shape and wheel spacing. Compare the drawings when selecting a model.
Installation and Cleaning
Fit two upper and two lower assemblies per glass door. Adjust the upper roller height to align the panel with the track, then check that the lower rollers engage correctly and the door moves freely. Support the glass before operating the lower quick-release mechanism to remove the door for cleaning.
Finishes and Ordering
Available finishes include Polished Chrome, Brushed Nickel and Matte Black. Specify the model, finish and wheel diameter when ordering. For replacement enquiries, send photos of the original upper and lower rollers together with wheel width, glass hole dimensions and track measurements.
