Glass to Glass Shower Seal, Arched Bridge

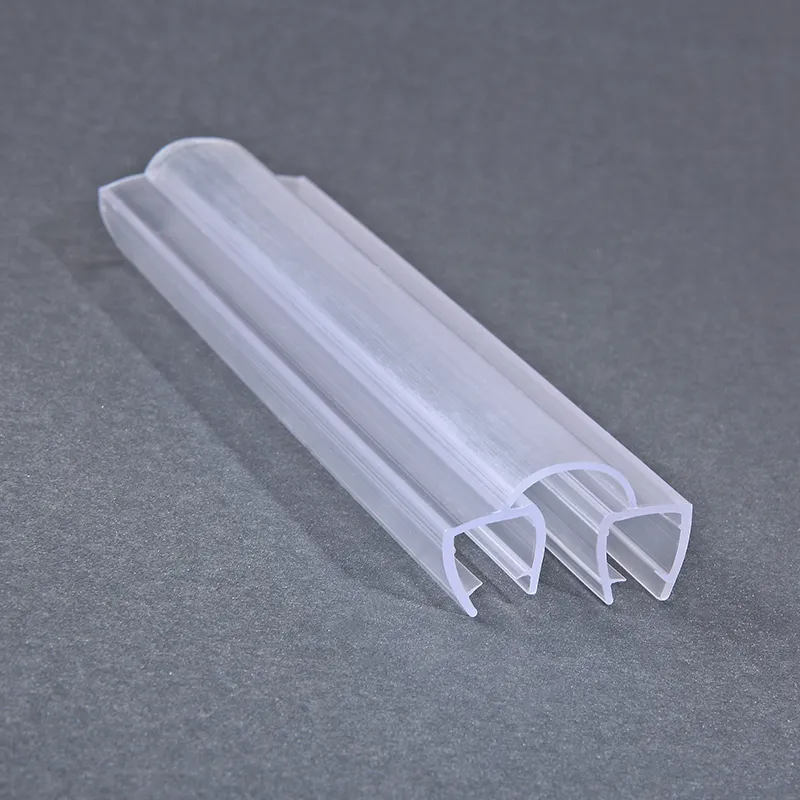

MAXGO PS11 is a glass to glass shower door seal with two separate U-shaped grips joined by a curved PVC bridge. The arched cross-section covers the space between adjacent glass edges and distinguishes this profile from a single-edge jamb or bottom wipe.
Profile and application
- Material: Clear PVC.
- Cross-section: Two glass-gripping channels linked by a smooth arched flexible bridge.

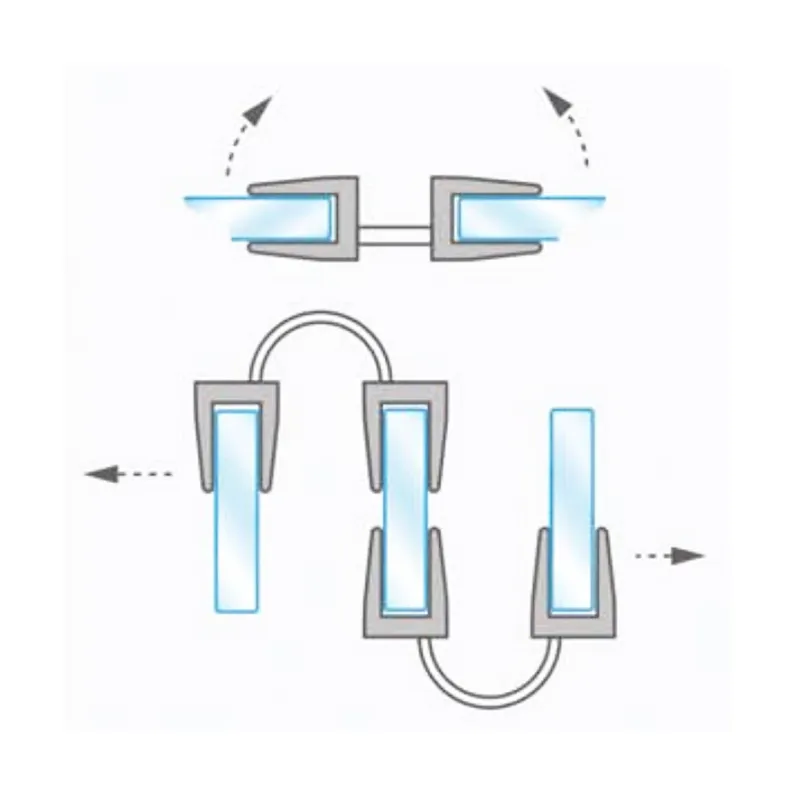

- Typical application: Adjacent shower glass edges where both grips and the connecting bridge suit the panel layout. Confirm movement compatibility before use at an operable joint.
Sizes and selection
| Glass thickness (mm) | Bridge a (mm) |
|---|---|
| 6 | 20 |
| 8 | 20 |
| 10 | 20 |

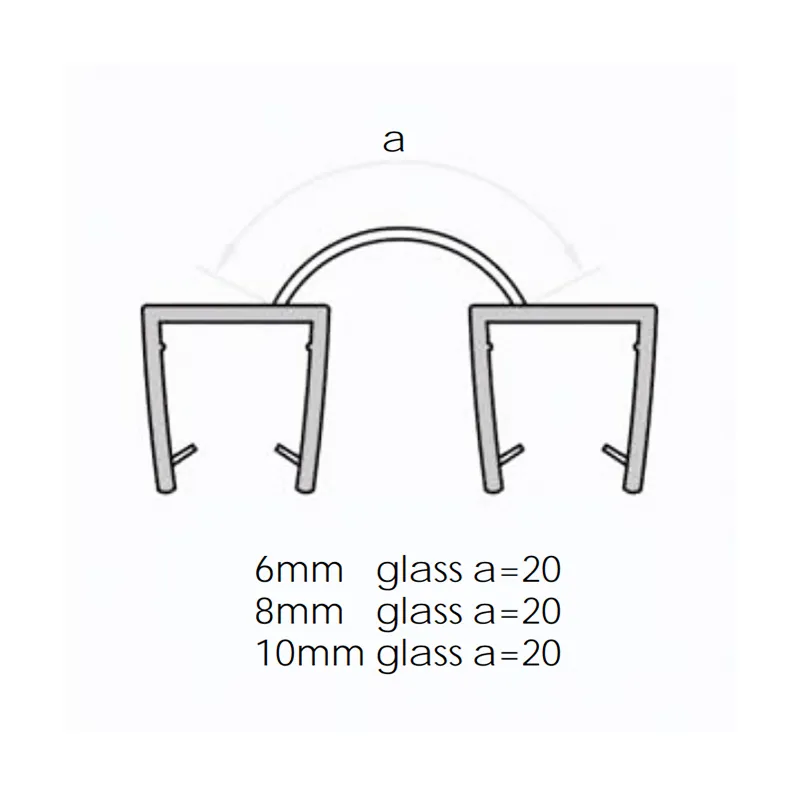

Dimensions are taken from the profile drawing in this product gallery. Each glass thickness requires its corresponding channel size.
Dimension a follows the curved bridge in the drawing; it is not the straight glass-to-glass clearance. Provide the panel gap and joint arrangement so MAXGO can check the correct fit.
Installation checks
Align both channels with the glass edges and fit without stretching the bridge. Confirm that the profile does not carry panel weight or restrict any required movement.
Check the finished enclosure for splash control. Seal performance depends on the joint clearance, door alignment and water direction. Clean with mild soapy water and a soft cloth.
Compare profiles
Compare PS12 for a corrugated bridge with a different span and folding shape. Browse the PVC shower seal range for other cross-sections.
For a quotation, send model PS11, the required profile size, finished length and quantity, together with a drawing or photo of the installation.
