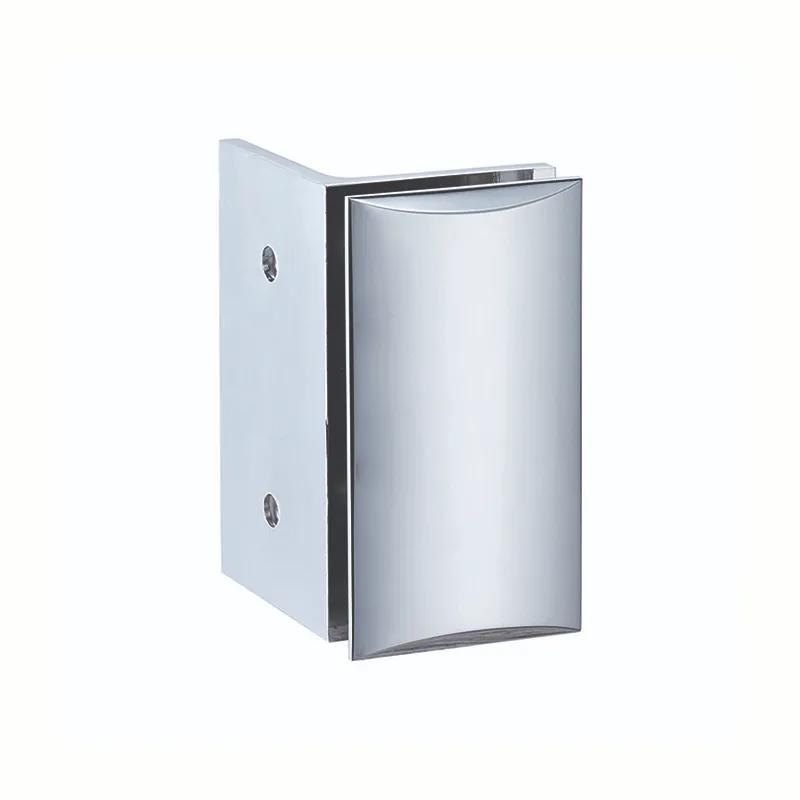

The MAXGO GCH303 90 degree curved wall bracket fixes a stationary shower panel perpendicular to the wall. The curved glass clamping face and right-angle wall flange combine a shaped exterior with a practical wall-to-glass connection.
Choose GCH303 for a 90° wall junction when the curved-face style matches the enclosure hardware. Confirm the flange orientation and available wall fixing space before setting the panel position.
GCH303 features and specifications
- Material: Solid brass
- Connection: 90° wall to glass
- Profile: Curved face with beveled perimeter
- Glass: Monolithic tempered glass, 8–12 mm (5/16"–1/2")
- Glass preparation: Round holes to the drawing approved for the ordered clamping-plate size
Glass preparation and installation
50 mm and 55 mm clamping-plate versions are available. Specify the required clamping-plate size when ordering.
Drawing key: 55 mm clamping-plate size reference; 50 mm version: 90° wall-to-glass dimensions and glass drilling.
Before glass fabrication, obtain the glass preparation drawing approved for the ordered clamping-plate size. Do not combine dimensions from the two versions. Confirm hole positions and edge distances against the actual bracket before ordering the glass. Complete all glass cutting and drilling before tempering. Fit gaskets appropriate for the glass thickness and keep metal surfaces clear of the glass.
Use wall fixings suitable for the substrate and panel layout. Determine bracket quantity and positions for the individual enclosure.
Finishes and ordering
Available finishes are Polished Chrome, Brushed Nickel, Polished Nickel, Matte Black and Satin Brass. Specify GCH303, the clamping-plate size, finish, glass thickness and quantity when requesting a quotation.
Related models
For the same wall-to-glass configuration with a flat beveled face, compare GCH203. Browse the shower glass bracket range for other connection angles and profiles.
