90° Concealed Screw Wall-to-Glass Shower Hinge
The MAXGO SCH002 concealed screw shower hinge connects a moving frameless shower door to the wall using a offset back plate. Solid brass construction and cover plates provide a clean finished appearance for 8–12 mm tempered glass.
The SCH slim-gap design keeps the hinge-side clearance narrow. Use the model drawing to determine the finished glass clearance.
Adjustable Closing Position and Self-Centering
The closing position is adjustable by ±15°. The hinge self-centers when the door returns to within 15° of the selected closing position. The adjustment range sets the closed position; the self-centering range describes the return action around that position.
Product Specifications
| Model | SCH002 |
|---|---|
| Mounting configuration | 90° Wall-to-Glass |
| Exterior design | Slim Gap |
| Back plate | Offset Back Plate |
| Glass thickness | 8–12 mm tempered glass |
| Material | Solid brass |
| Closing-position adjustment | ±15° |
| Self-centering | Within 15° of the selected closing position |
| Cycle test | At least 100,000 opening and closing cycles |
| Springs and pin | Hardened stainless steel |
| Screw covers | Concealed fixing screws; snap-on covers |
| Finishes | Polished chrome, brushed nickel, matte black and satin brass |

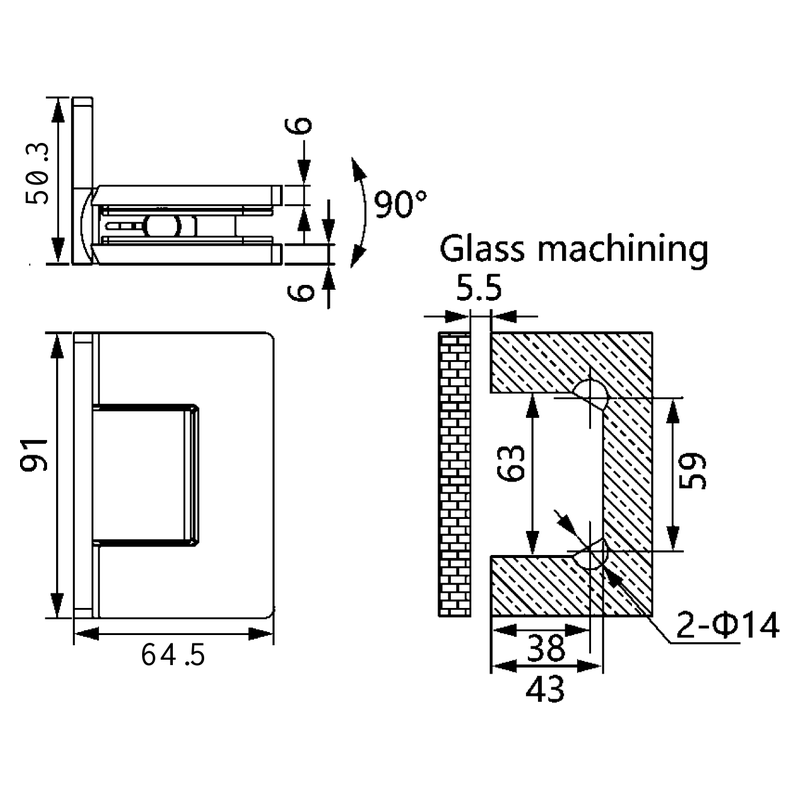

Back Plate and Technical Drawing
SCH001 and SCH002 share the basic hinge-body dimensions and glass preparation. Their back plate arrangements differ: SCH001 has a full back plate and SCH002 an offset back plate. Match the wall fixing layout to the selected model.
Trade Enquiries and Model Selection
Compare SCH001 for the alternative back plate, or browse all concealed screw shower door hinges. For project quotations, specify the model, mounting layout, glass thickness, door dimensions, door weight, finish and quantity.
