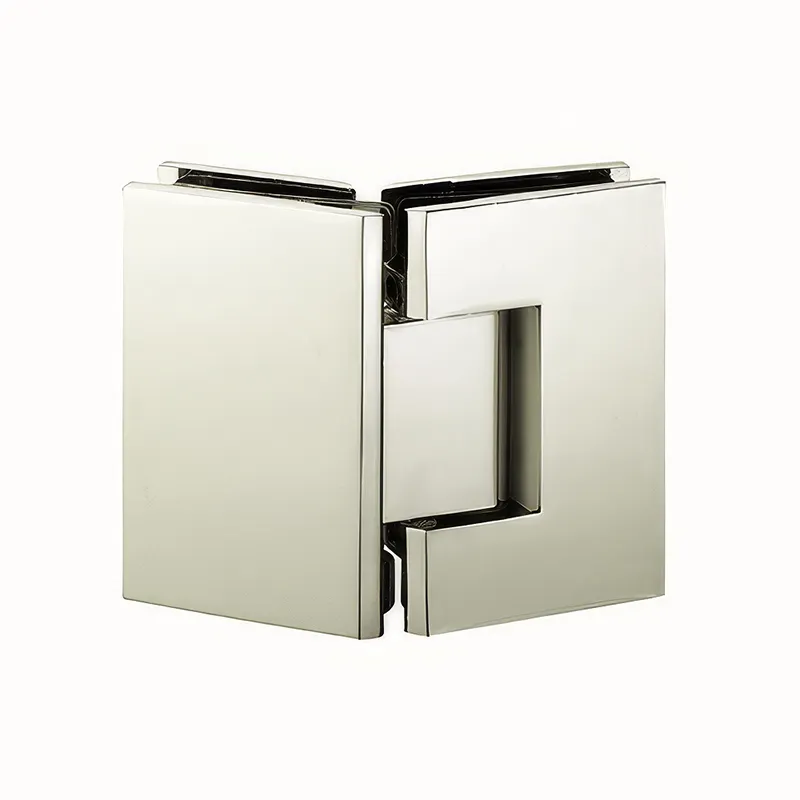

SHS035 135° Glass-to-Glass Shower Door Hinge
SHS035 is a standard-duty shower door hinge with square corners and a flat face, made from forged solid brass for 8–12 mm tempered glass. It connects the moving glass door to a fixed glass panel in a 135° enclosure configuration.
Specifications
| Model | SHS035 |
|---|---|
| Application | Glass-to-Glass |
| Mounting configuration | 135° |
| Profile | Square Corner |
| Material | Forged solid brass |
| Glass thickness | 8–12 mm tempered glass |
| Body dimensions | 90 mm (3.54 in) high; each glass-clamping plate is 55 mm (2.17 in) wide |
| Load capacity | 2 hinges: 45 kg (approximately 99 lb); 3 hinges: 60 kg (approximately 132 lb) |
| Self-centering | Within 15° of the closed position |
| Cycle test | At least 100,000 opening and closing cycles |
| Optional pivot pin | Reversible 5° pivot pin |
| Optional screw cover | Snap-on screw cover |
| Finishes | Polished Chrome, Brushed Nickel, Matte Black, Satin Brass |

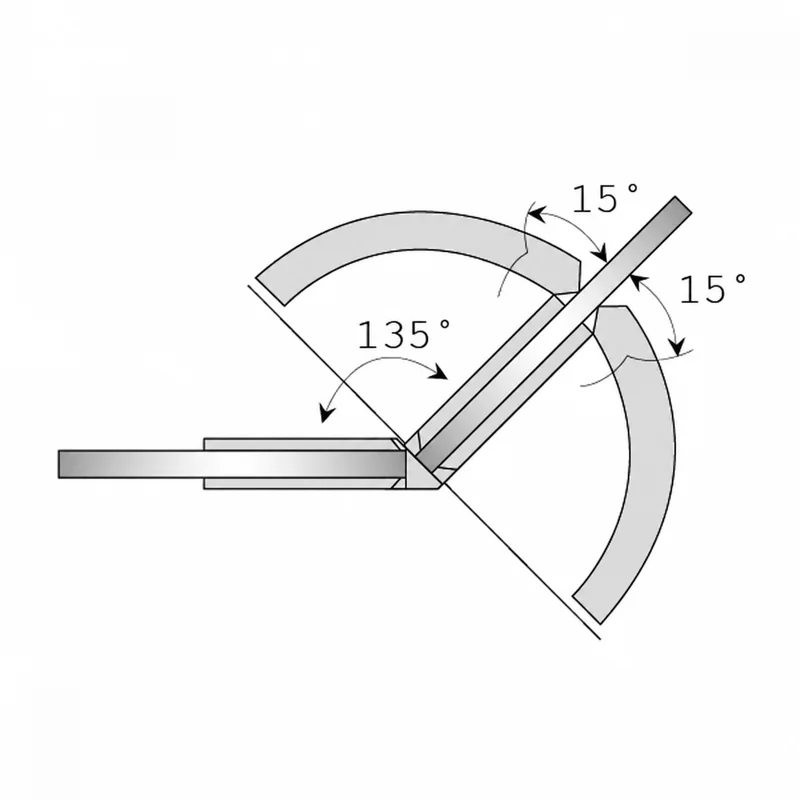

Self-Centering and Optional Components
The hinge returns the door to its closed position from within 15°. All SHS standard-duty models support the optional reversible 5° pivot pin and snap-on screw cover. Specify these options when requesting a quotation.
Model Selection and Quotation
Choose SHS035 for its square corner and 135° glass-to-glass configuration. For a 90° glass-to-glass configuration in the same profile family, see SHS090. Compare other profiles in our standard duty shower door hinges range.
Include the model, finish, glass thickness, door dimensions, door weight and quantity in your enquiry. Request the model-specific glass preparation drawing before fabrication; the mounting configuration angle describes the panel arrangement, not the door opening range.
