MAXGO SDR01 double shower door rollers combine a 304 stainless steel body with stainless steel bearings for 6–8 mm glass sliding doors. Match the wheel spacing and mounting dimensions to the enclosure before selecting the wheel diameter.
Features and Specifications
- Body: 304 stainless steel.
- Bearings: stainless steel.
- Wheel outer material: nylon or POM.
- Glass thickness: 6–8 mm.
- Standard wheel diameters: 23, 26 and 28 mm. Other sizes are available on request.
- Maximum weight per glass door: 30 kg with two upper and two lower roller assemblies.

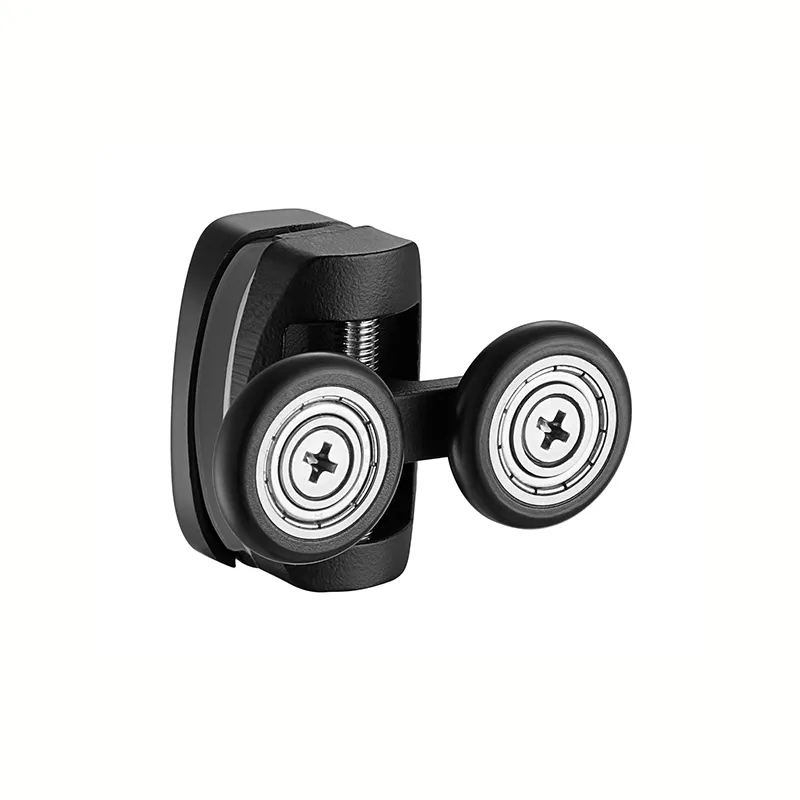

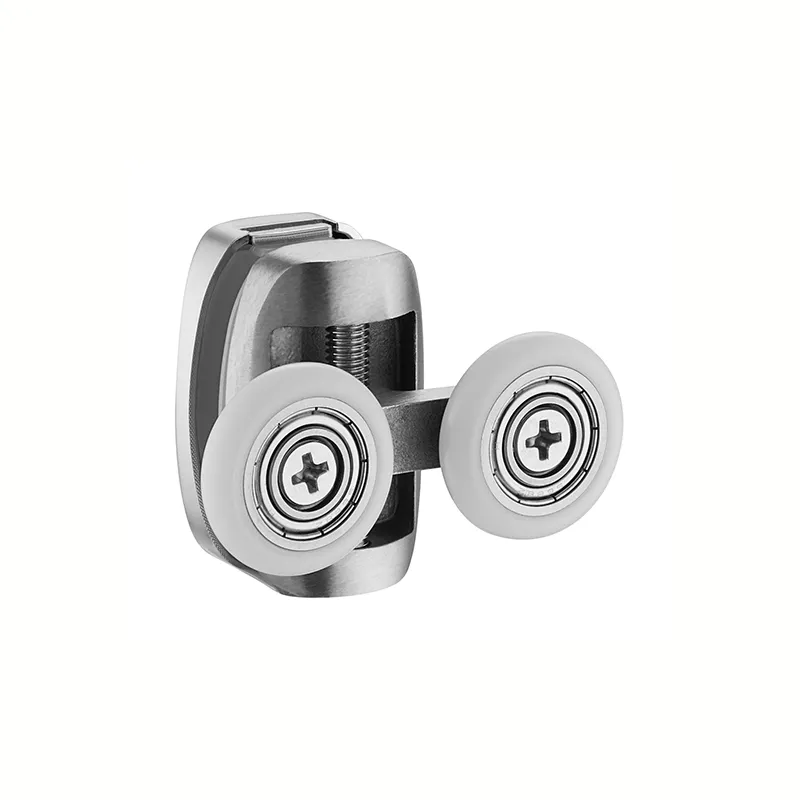

- Upper rollers: height adjustable.

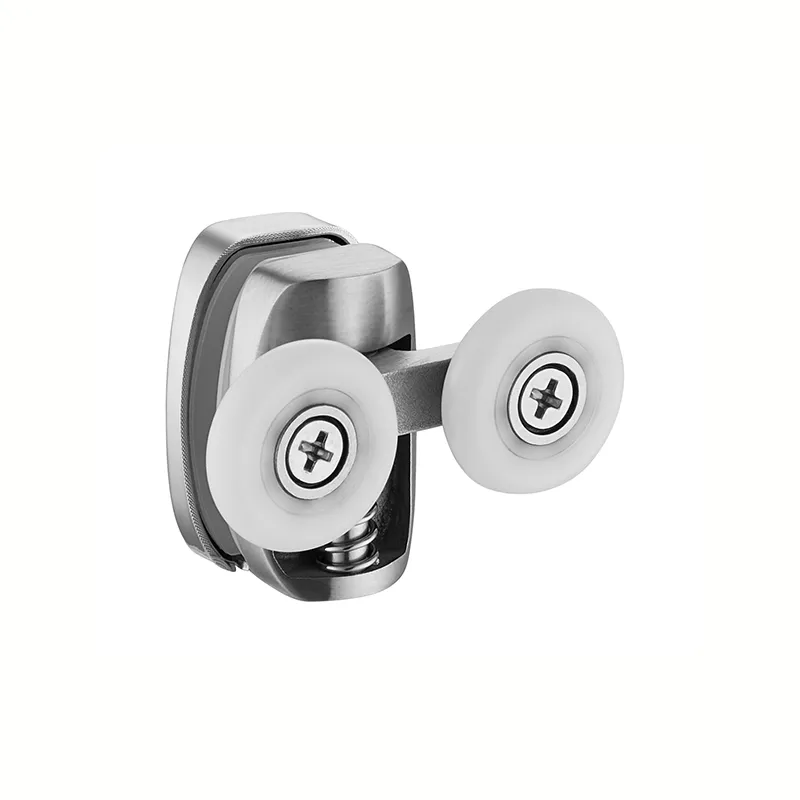

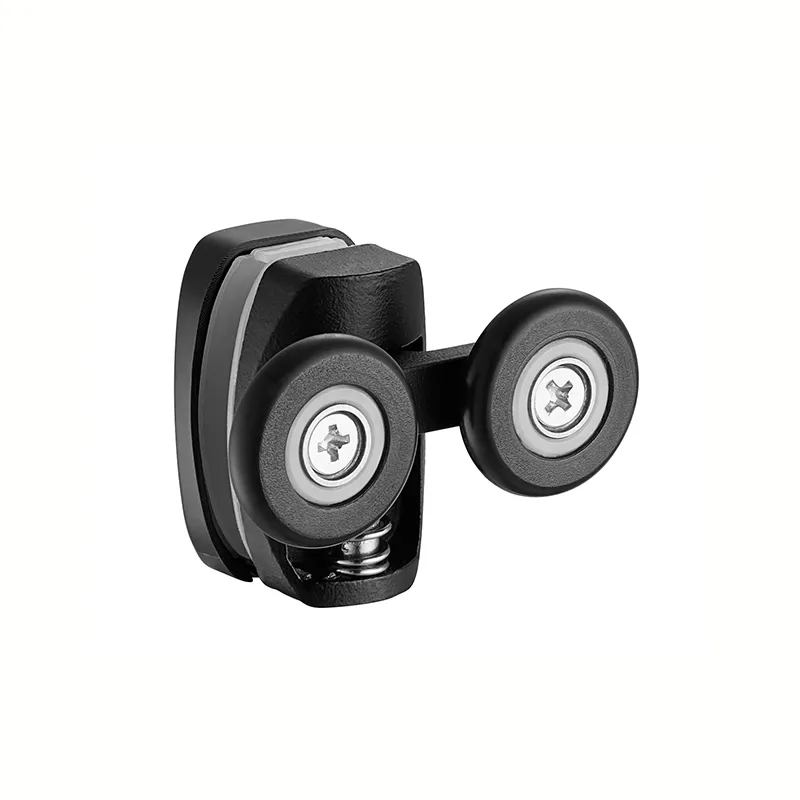

- Lower rollers: spring-loaded quick release.
- Warranty: 10 years.
Matching SDR01 to the Enclosure

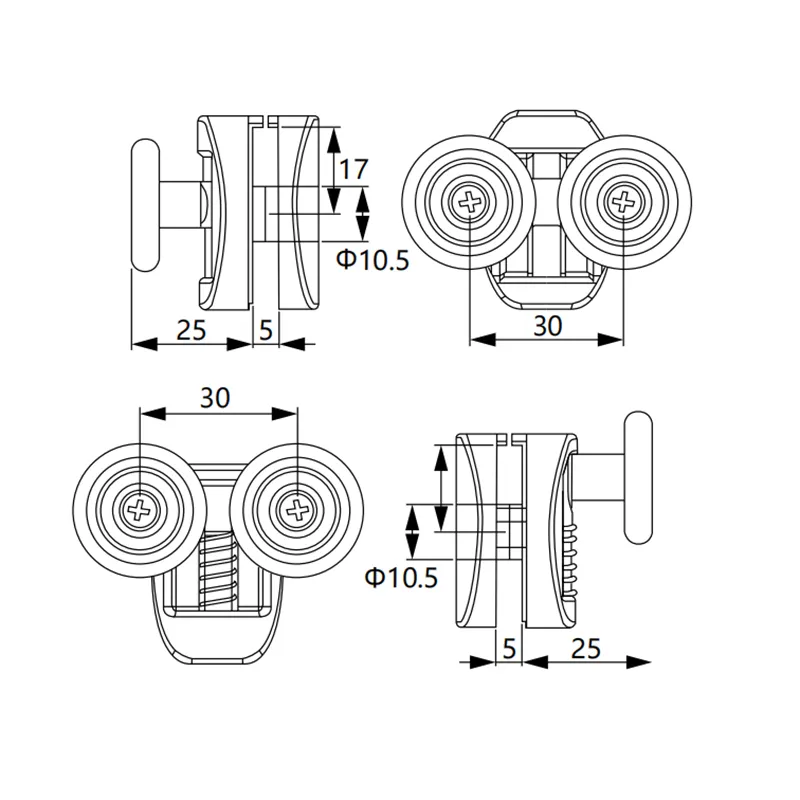

For a replacement on a quadrant shower enclosure, compare the SDR01 drawing with the original assembly, including wheel centre spacing, glass fixing hole and wheel offset. A similar appearance alone does not establish a fit.
The main differences between SDR01, SDR02, SDR04, SDR06 and SDR07 are wheel spacing and body shape. Select by the technical drawing and mounting geometry; their basic adjustment and quick-release functions are similar.
Installation and Cleaning
Fit two upper and two lower assemblies per glass door. Set the upper roller height so the panel runs correctly in its track, and check that the lower spring-loaded rollers engage securely. Support the glass when using the quick-release mechanism to remove the door for cleaning.
Finishes and Ordering
Finishes include polished stainless steel, satin and matte black. Specify the model, wheel diameter, wheel outer material and finish when ordering. For replacement enquiries, provide photos of the original rollers and measurements of the track and glass mounting holes.
