SCE001 Adjustable 90° Round Corner Wall-to-Glass Shower Hinge

SCE001 Adjustable 90° Wall-to-Glass Shower Hinge

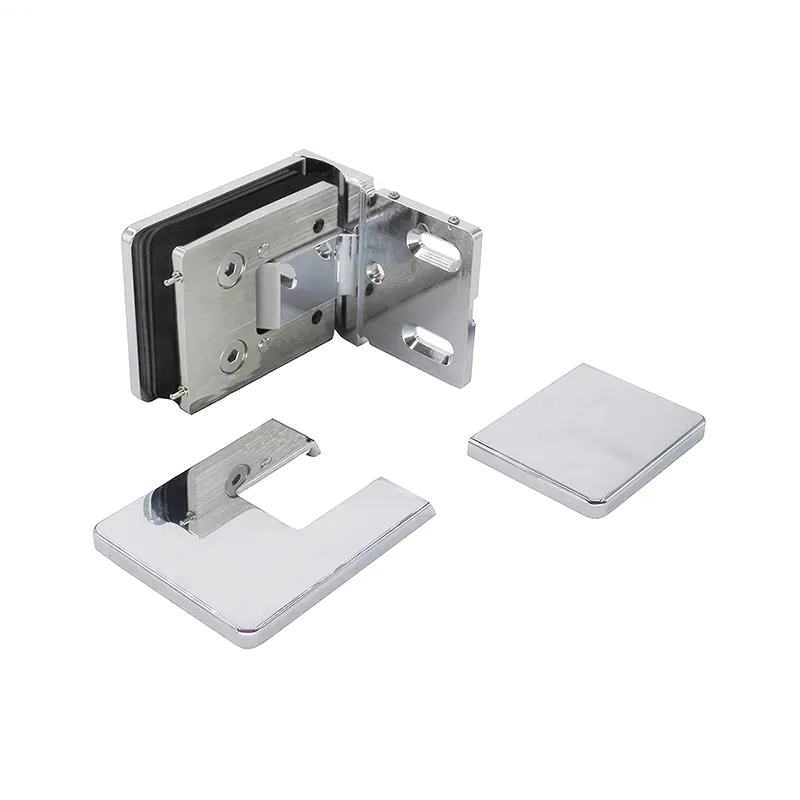

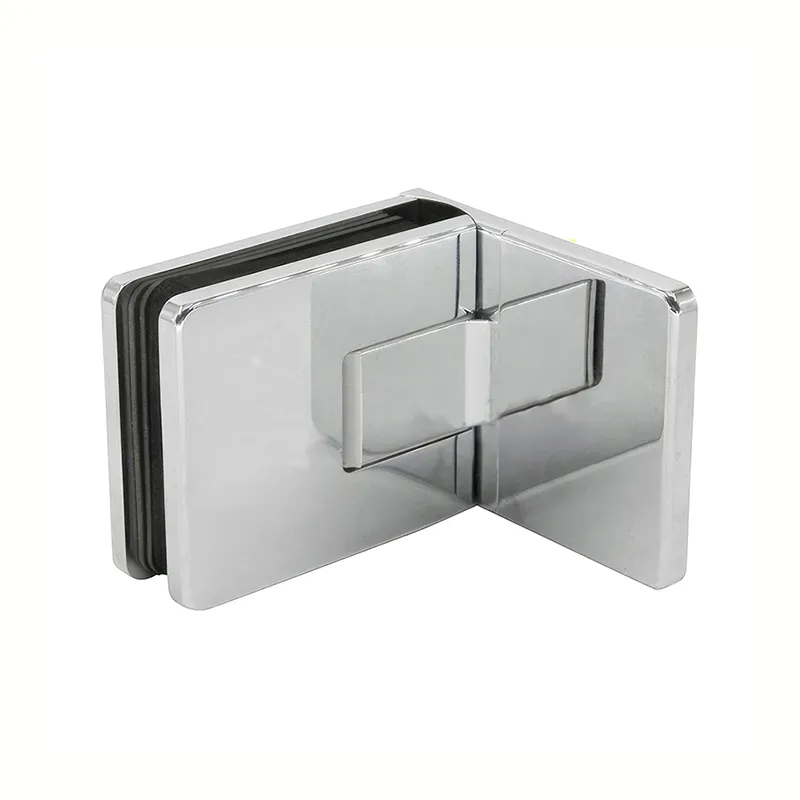

SCE001 mounts a frameless shower door to the wall in a 90° configuration. It features rounded outer corners, an offset back plate and snap-on covers that conceal the mounting screws.

SCE001 and SCE201 have similar adjustment and mounting functions, but their outer corner designs and product dimensions differ. Check the drawing for the selected model when matching the hinge to an existing glass door or planning a new cut-out.

Adjustable Closing Position

The closed position can be adjusted after the door is installed. Loosen the Allen adjustment screws, align the door with the enclosure, then retighten the screws to set its closing position.

The hinge self-centers as the door returns to within approximately 15° of the set position.

Glass Preparation

Confirm the SCE001 dimensions, glass cut-out, hinge positions and door-to-wall gap against its own technical drawing before fabrication. Do not use the SCE201 drawing as a substitute merely because the two hinges have similar functions.

Product Specifications

• Model: SCE001
• Application: Wall-to-Glass
• Mounting Configuration: 90°
• Exterior Profile: Round Corner
• Back Plate: Offset Back Plate
• Material: Solid Brass
• Glass Thickness: 8–12 mm Tempered Glass
• Closing Position: Adjustable After Installation
• Self-Centering: Within Approximately 15° of the Set Closing Position
• Screw Cover: Snap-on Covers Conceal Mounting Screws
• Spring and Pin: Hardened Stainless Steel
• Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
• Overall Dimensions and Glass Cut-Out: Refer to the SCE001 Technical Drawing

Selecting SCE001

Choose SCE001 when a 90° wall-to-glass installation calls for a round corner hinge with concealed screws. Compare its dimensions and glass cut-out with the project drawing before selecting it in place of SCE201.
For a rectangular exterior profile with different product dimensions, see the SCE201 Adjustable 90° Wall-to-Glass Shower Hinge.
For a full back plate configuration, see the SCH001 Adjustable 90° Wall-to-Glass Shower Hinge.
