Beveled Wall Mount Clamp for Fixed Glass

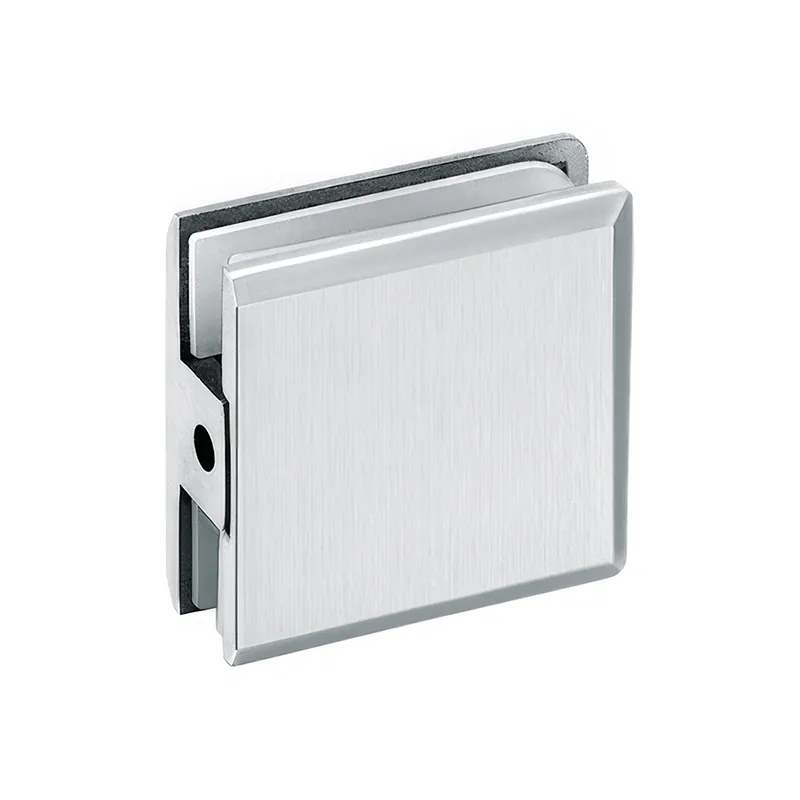

SSG201 is a beveled wall mount stainless steel glass clamp with a compact direct-mount body. It secures a fixed shower panel to the wall and has a sloping border around the visible face. This profile can be coordinated with beveled hinges and fittings. SSG001 is the square-profile alternative; SSG202 uses a projecting wall plate.
Features and Specifications
| Model | SSG201 |
|---|---|
| Material | Cast stainless steel; 304 and 316 options available |
| Mounting type | Direct wall mount |
| Profile | Beveled |
| Glass type | Monolithic tempered glass |
| Glass thickness | 6–12 mm |
| Application | Fixed shower glass panels |
| Glass preparation | Round holes required; confirm hole diameter and position against the model-specific fabrication drawing |
| Finishes | Brushed Stainless Steel, Polished Stainless Steel, Matte Black |
Glass Preparation and Installation
Prepare the round holes before tempering the glass. Confirm the hole diameter and position for the model being ordered, and use the appropriate gaskets for the selected glass thickness.
Confirm that the wall construction and fixing position suit the mounting arrangement. These fittings secure fixed glass panels; select hinges separately for the moving door.
Material and Finish Options
Specify 304 or 316 stainless steel when ordering. Choose Brushed Stainless Steel, Polished Stainless Steel or Matte Black to coordinate with the other shower fittings. Confirm the material grade and finish together for the project.
