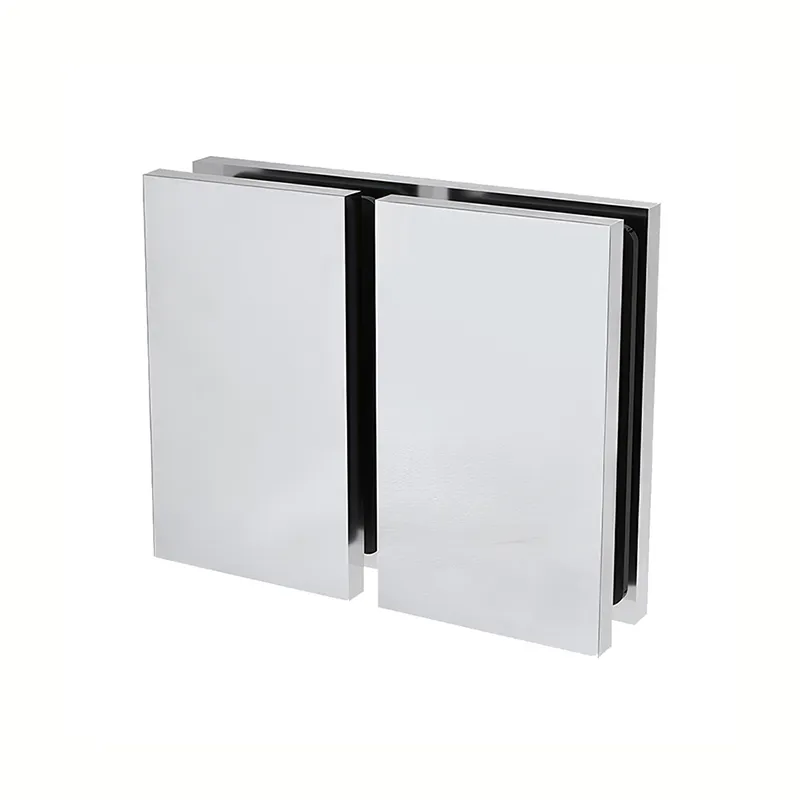

SCH580 is a 180 degree concealed screw glass bracket for joining two fixed glass panels in an inline arrangement. Two rectangular cover plates hide the clamping screws on the finished face.
Features & Specifications
Model: SCH580
Material: Solid brass
Cover plates: Snap-on covers conceal the clamping screws
Glass: 3/8″–1/2″ (10–12 mm) monolithic tempered glass; confirm the gasket and clearance combination for the selected thickness
Application: Fixed glass panels in frameless shower enclosures
Configuration & Dimensions
180° inline glass-to-glass connection. Choose SCH535 for a 135° junction or SCH590 for a 90° corner; SCH501 and SCH502 are wall mount models.
Glass Fabrication & Installation
Confirm the required glass holes or cut-outs using the model-specific fabrication template before tempering. The body dimension drawing alone is not a glass preparation template.
Check panel alignment and supporting fixings, fit the appropriate protective gaskets, and tighten the clamping screws evenly. Fit the cover plates after the connection is secured.
Available Finishes
Polished Chrome, Satin Chrome, Matte Black and Satin Brass. Specify the required finish when requesting a quotation.
Ordering
Provide the model, finish, glass thickness and quantity. MAXGO can confirm the corresponding technical drawing and OEM/ODM requirements before production.
