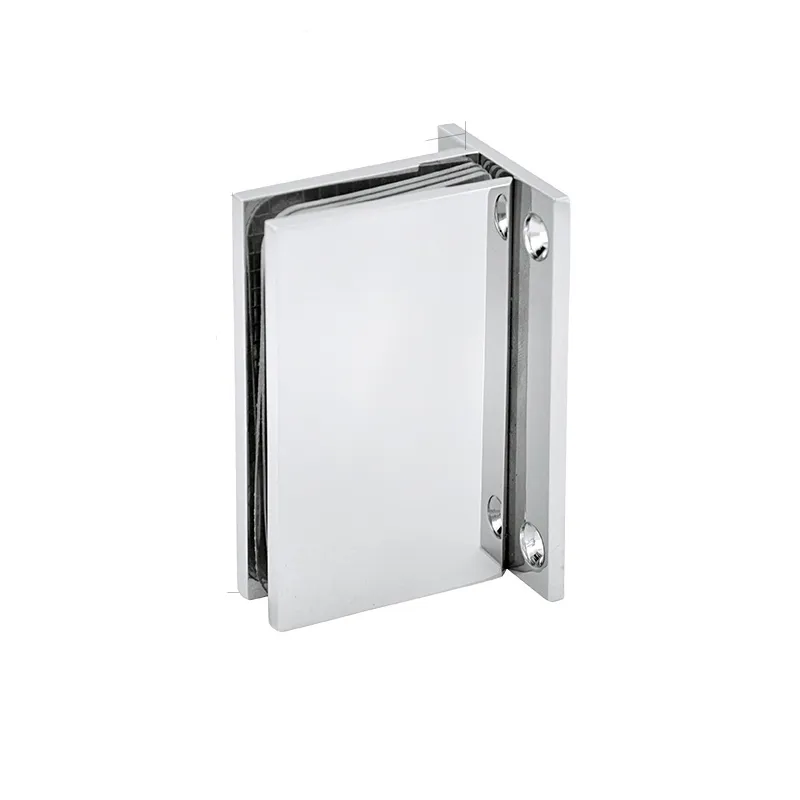

The MAXGO GCH002 square wall mount glass bracket connects a fixed shower glass panel to the wall. Its solid brass construction and square profile suit frameless shower enclosures with straight-edged hardware. This model is designed for monolithic tempered glass from 5/16" to 1/2" (8 to 12 mm) thick.
GCH002 specifications
- Model: GCH002
- Material: Solid brass
- Connection: Wall to fixed glass panel
- Profile: Square
- Glass type: Monolithic tempered glass
- Glass thickness: 8–12 mm (5/16"–1/2")
- Glass preparation: Edge cutout as shown in the GCH002 dimension drawing
Dimensions and glass preparation
Refer to the GCH002/GCH202 dimension and glass cutout drawing in the product gallery when preparing the glass. The drawing identifies the cutout dimensions and the 2-R8 corner reliefs. Confirm the template against the selected bracket before glass fabrication, and complete all cutting before tempering.
Use gaskets suitable for the selected glass thickness and keep the glass separated from the metal surfaces. The wall fixing method should suit the installation substrate and the complete panel layout. Bracket quantity and placement should be determined for the individual enclosure.
Available finishes
Choose from Polished Chrome, Brushed Nickel, Polished Nickel, Matte Black and Satin Brass. Select the finish above to coordinate the bracket with the other hardware in your shower enclosure. Include the model, finish and glass thickness in your enquiry.
Related shower glass brackets
For a beveled profile in this wall-mount format, see the GCH202 wall mount beveled flange bracket. You can also browse the shower glass bracket range to compare wall-to-glass and glass-to-glass configurations.
