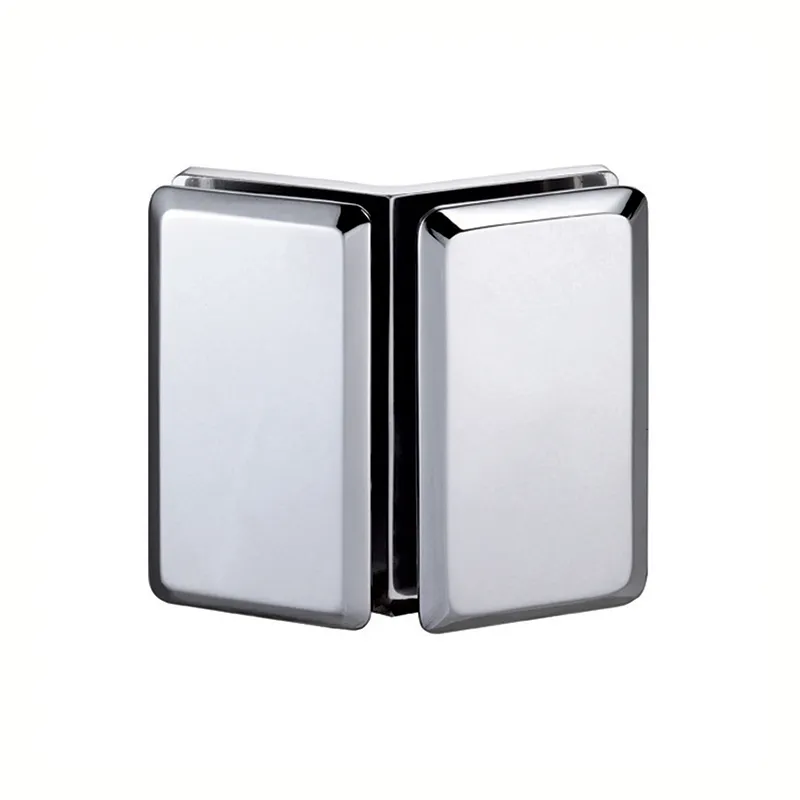

The MAXGO GCH235 135 degree beveled glass bracket connects fixed panels at an angled shower corner. Its beveled borders and rounded plate corners coordinate with matching beveled shower fittings.
Use this 135° model for angled glass-to-glass layouts. The connection angle is fixed, so confirm the enclosure geometry before preparing either panel.
GCH235 features and specifications
- Material: Solid brass
- Connection: 135° glass to glass
- Profile: Beveled edges with rounded corners
- Glass: Monolithic tempered glass, 8–12 mm (5/16"–1/2")
- Glass preparation: Round holes to the drawing approved for the ordered clamping-plate size
Glass preparation and installation
50 mm and 55 mm clamping-plate versions are available. Specify the required clamping-plate size when ordering.

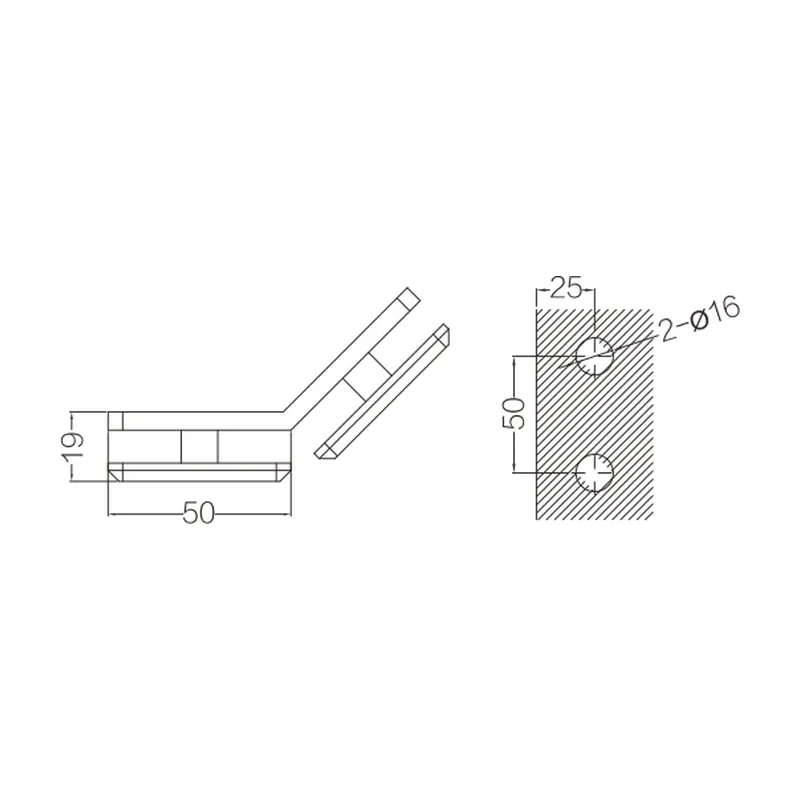

Drawing key: 55 mm clamping-plate size reference; 50 mm version: 135° glass-to-glass dimensions and glass drilling.
Before glass fabrication, obtain the glass preparation drawing approved for the ordered clamping-plate size. Do not combine dimensions from the two versions. Confirm hole positions and edge distances against the actual bracket before ordering the glass. Complete all glass cutting and drilling before tempering. Fit gaskets appropriate for the glass thickness and keep metal surfaces clear of the glass.
Align the panels at the specified connection angle before securing the bracket. Determine bracket quantity and positions for the individual enclosure.
Finishes and ordering
Available finishes are Polished Chrome, Brushed Nickel, Polished Nickel, Matte Black and Satin Brass. Specify GCH235, the clamping-plate size, finish, glass thickness and quantity when requesting a quotation.
Related models
For the same 135° connection with a curved face, compare GCH335. Browse the shower glass bracket range for other connection angles and profiles.
