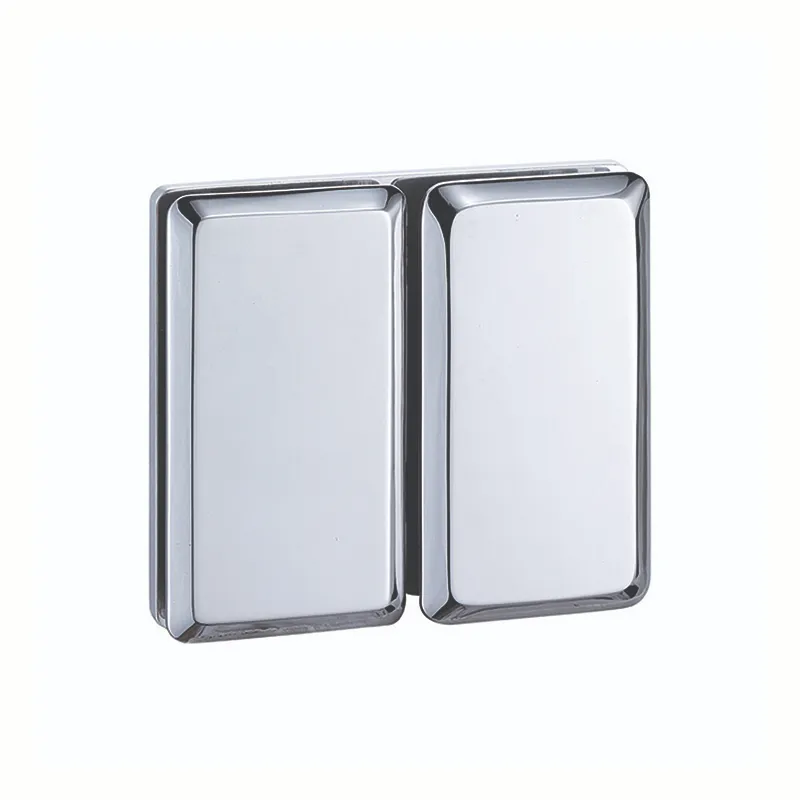

The MAXGO GCH280 180 degree beveled glass bracket joins two fixed shower panels inline. Its beveled perimeter frames the flat plate faces, with rounded corners for a softer hardware outline.
The 180° configuration maintains a straight panel-to-panel junction. Confirm the glass alignment, joint spacing and bracket positions as part of the full enclosure layout.
GCH280 features and specifications
- Material: Solid brass
- Connection: 180° glass to glass
- Profile: Beveled edges with rounded corners
- Glass: Monolithic tempered glass, 8–12 mm (5/16"–1/2")
- Glass preparation: Round holes to the drawing approved for the ordered clamping-plate size
Glass preparation and installation
50 mm and 55 mm clamping-plate versions are available. Specify the required clamping-plate size when ordering.
Drawing key: 55 mm clamping-plate size reference; 50 mm version: 180° glass-to-glass dimensions and glass drilling.
Before glass fabrication, obtain the glass preparation drawing approved for the ordered clamping-plate size. Do not combine dimensions from the two versions. Confirm hole positions and edge distances against the actual bracket before ordering the glass. Complete all glass cutting and drilling before tempering. Fit gaskets appropriate for the glass thickness and keep metal surfaces clear of the glass.
Align the panels at the specified connection angle before securing the bracket. Determine bracket quantity and positions for the individual enclosure.
Finishes and ordering
Available finishes are Polished Chrome, Brushed Nickel, Polished Nickel, Matte Black and Satin Brass. Specify GCH280, the clamping-plate size, finish, glass thickness and quantity when requesting a quotation.
Related models
For a curved-face bracket in the same inline arrangement, compare GCH380. Browse the shower glass bracket range for other connection angles and profiles.
