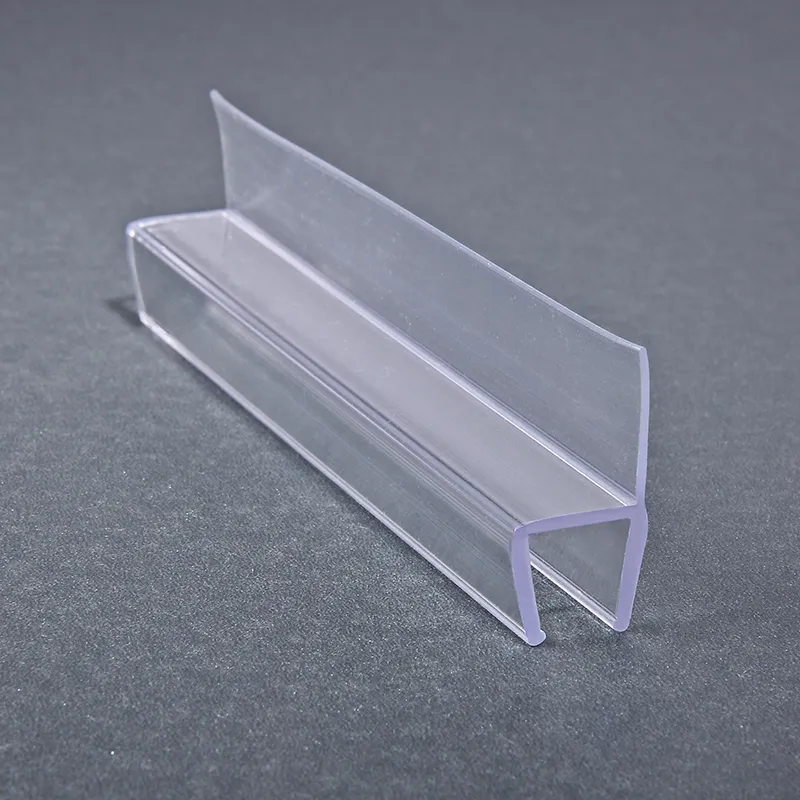

PSU07 is a polycarbonate H jamb shower seal with a projecting side leg. Its ultra-clear profile combines a glass-gripping channel with an offset sealing section for the edge joints illustrated in the drawing.
Application and profile design

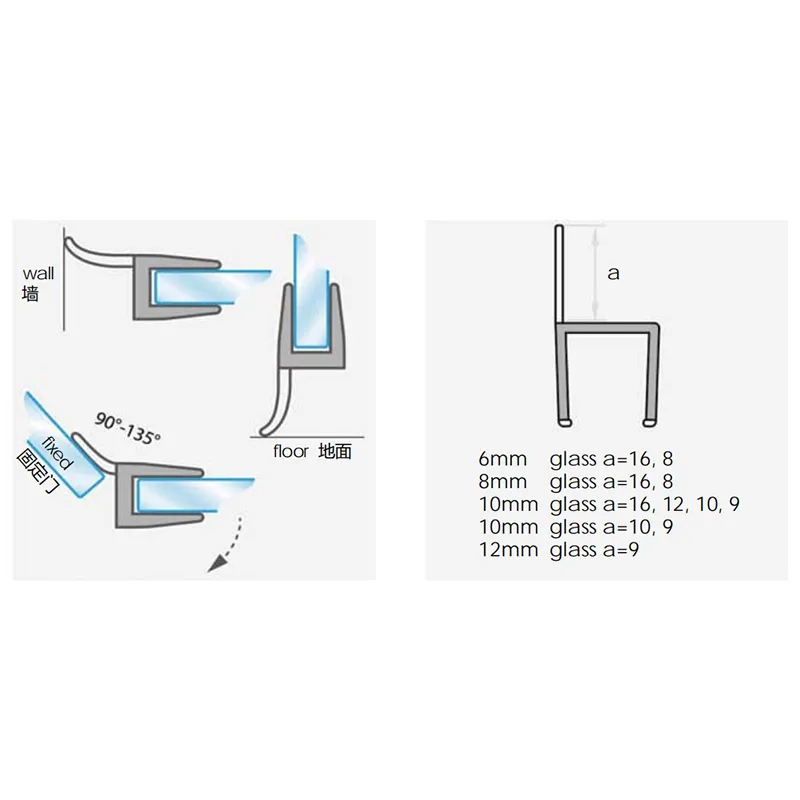

The drawing shows wall contact, floor contact and glass-to-glass layouts marked 90°–135°. Select the leg dimension and channel size for the intended position, and test the contact as the door opens and closes.
Features and specifications
- Model: PSU07
- Seal profile material: PC (polycarbonate)
- Appearance: ultra-clear, high transparency
- Profile: Glass channel with an offset side leg
- Glass type: monolithic tempered glass
Dimensions
| Glass thickness (mm) | a options (mm) |
|---|---|
| 6 | 16, 8 |
| 8 | 16, 8 |
| 10 | 16, 12, 10, 9 |
| 12 | 9 |
All dimensions are in millimeters. Dimension a follows the label in the section drawing; multiple values indicate alternative profile sizes. These are profile dimensions, not a guaranteed installation gap.
Fitting notes
Measure the glass thickness and the joint before selecting the profile. Check the channel fit and sealing contact before cutting to length. Test the door movement after fitting to ensure the profile does not obstruct opening or closure.
Related PC profile
PSU07 has an offset leg, while PSU03 uses an angled wipe. PSU08 has a rounded bulb rather than a fin or leg. See PSU03 for its profile and dimensions.
