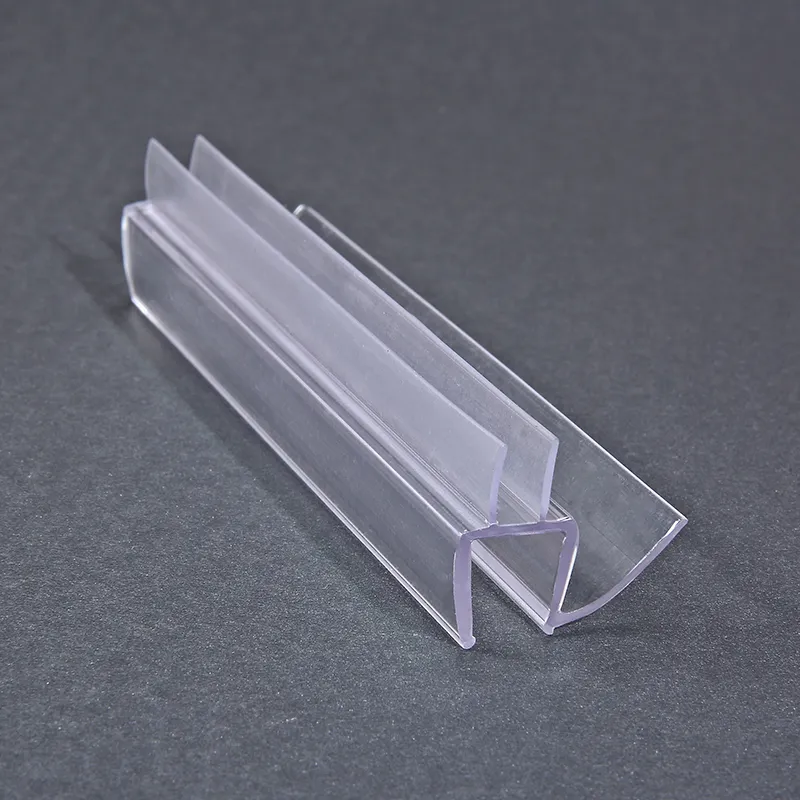

PSU06 is an ultra-clear polycarbonate bottom seal with a drip rail and two wipe fins. The rail directs runoff toward the shower side, while the bottom wipes help limit splashes below the glass door.
Application and profile design
Snap the channel onto the bottom glass edge with the drip rail facing into the enclosure. Check the floor clearance and wipe contact before trimming, then test the complete opening and closing movement.
Features and specifications
- Model: PSU06
- Seal profile material: PC (polycarbonate)
- Appearance: ultra-clear, high transparency
- Profile: Drip rail with two bottom wipe fins
- Glass type: monolithic tempered glass
Dimensions
| Glass thickness (mm) | a (mm) | b (mm) |
|---|---|---|
| 6 | 6 | 11 |
| 8 | 8 | 13 |
| 10 | 9 | 17.5 |
| 12 | 9 | 17.5 |

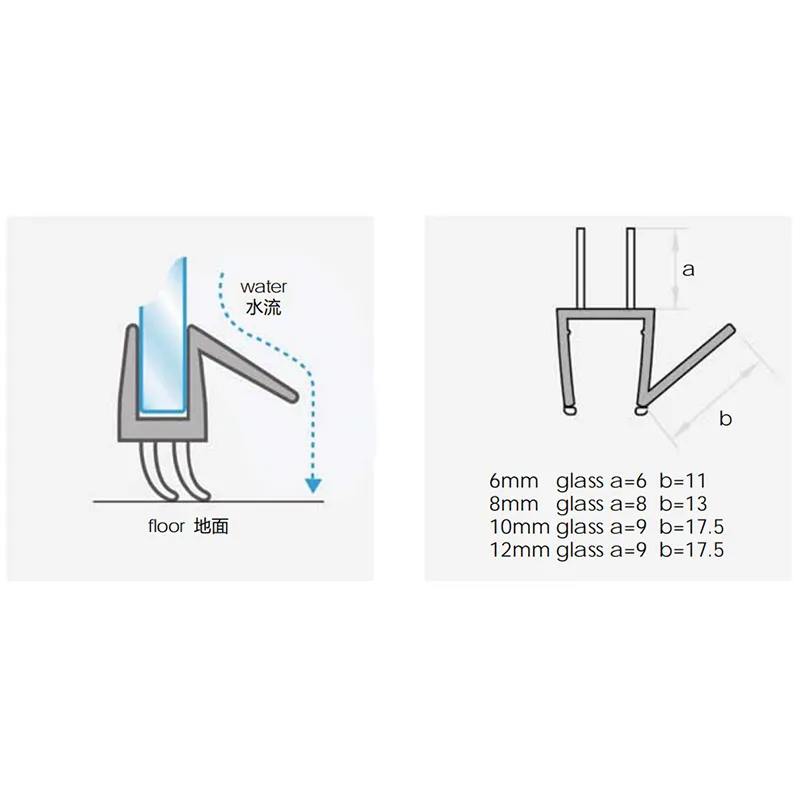

All dimensions are in millimeters. The letters a and b refer to the dimensions in the section drawing. These are profile dimensions, not a guaranteed installation gap.
Fitting notes
Measure the glass thickness and the joint before selecting the profile. Check the channel fit and sealing contact before cutting to length. Test the door movement after fitting to ensure the profile does not obstruct opening or closure.
Related PC profile
PSU10 has a different single-wipe section with a drip rail and is shown for 8 and 10 mm glass. Compare the full cross-section and fin dimensions before selecting either profile. See PSU10 for its profile and dimensions.
