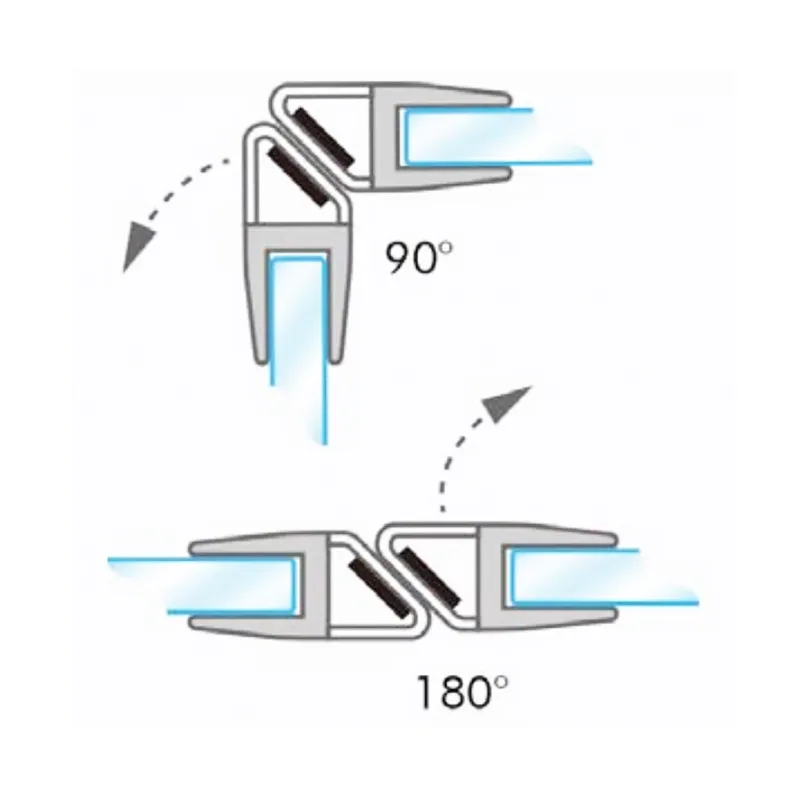

PS14 is a 45 degree magnetic shower seal profile for the closing edges of glass shower doors. Its angled magnetic face allows paired profiles to form the 90° corner or 180° inline arrangements shown in the installation drawing.
Application and profile selection
The 45° designation describes the magnetic face of the profile. Select the complete pair by the final glass arrangement and glass thickness. PS14 can also work with PS24 at the T-shaped junction shown on the PS24 page.
Features and specifications
- Model: PS14
- Material: co-extruded PVC profile with magnetic strip
- Glass: monolithic tempered glass; select the matching channel size

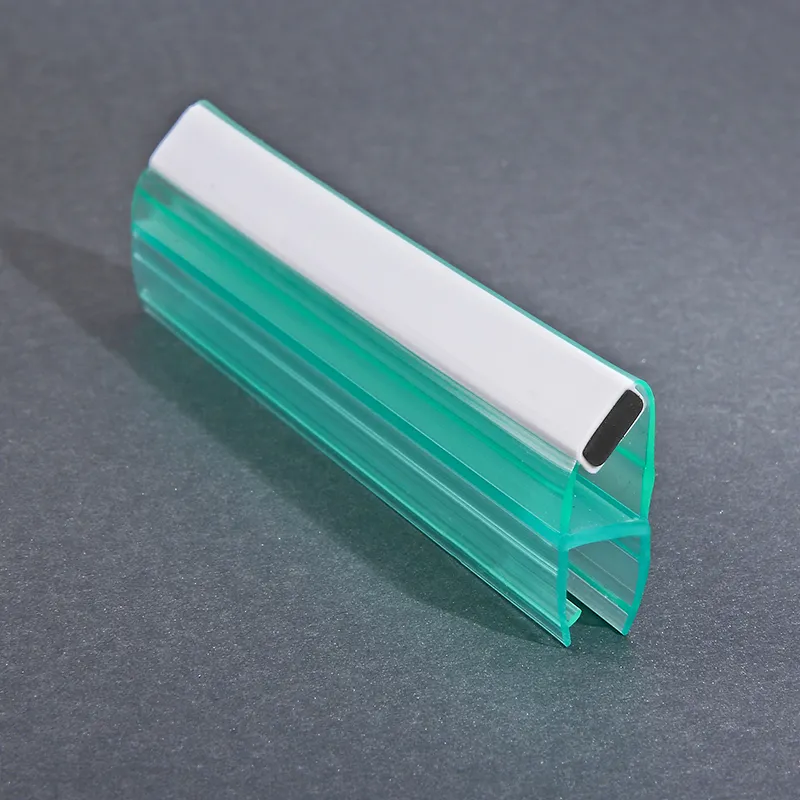

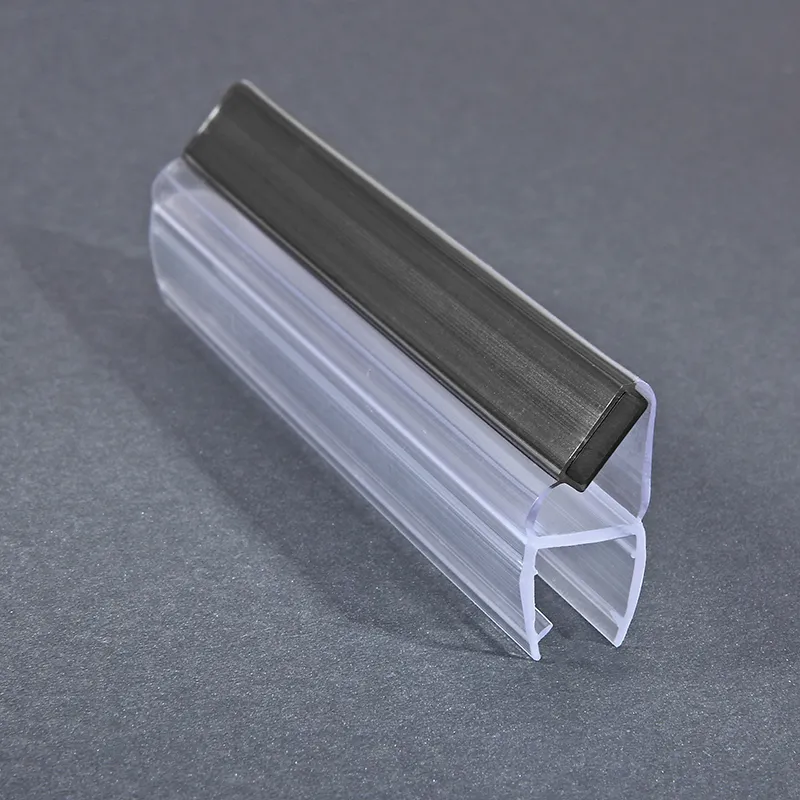

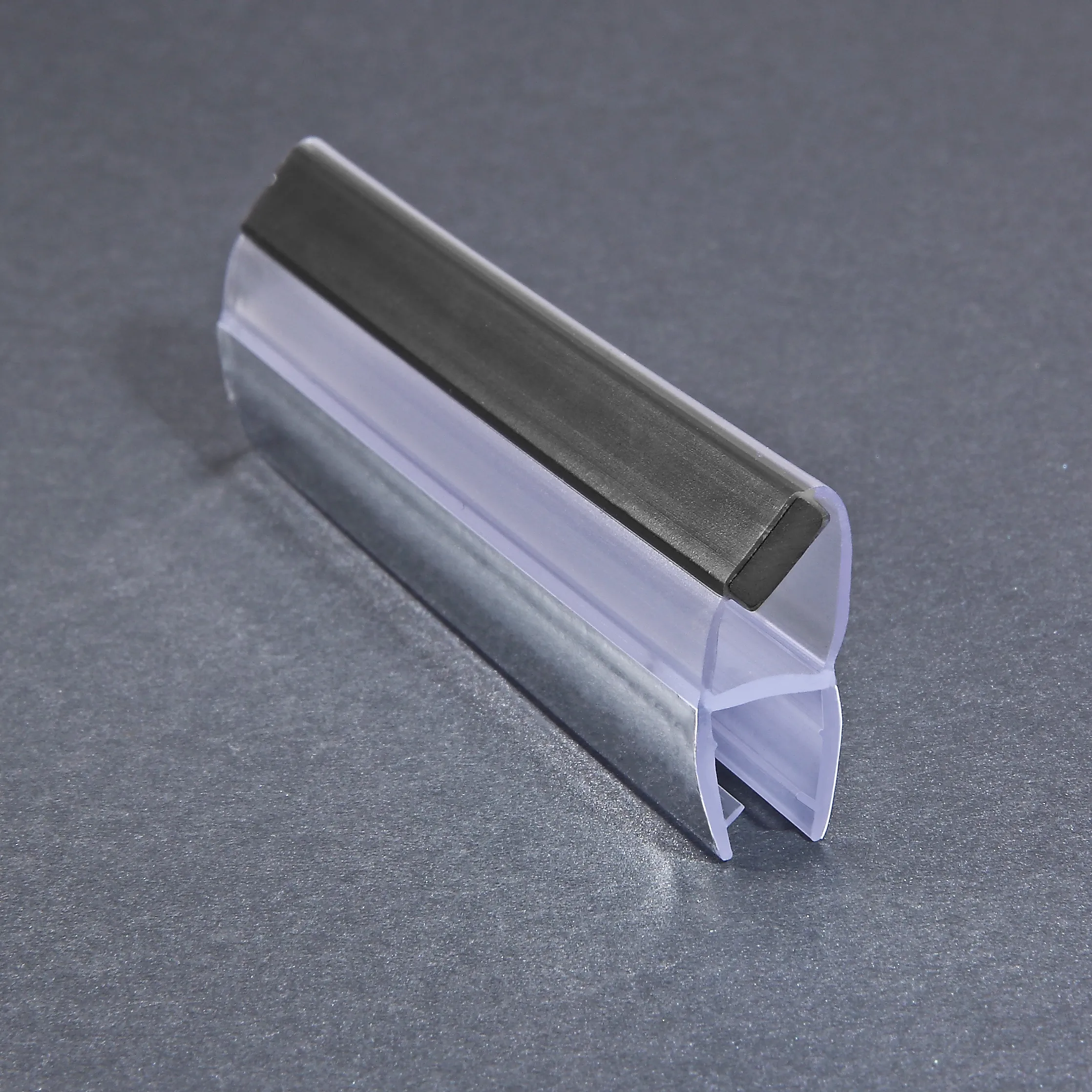

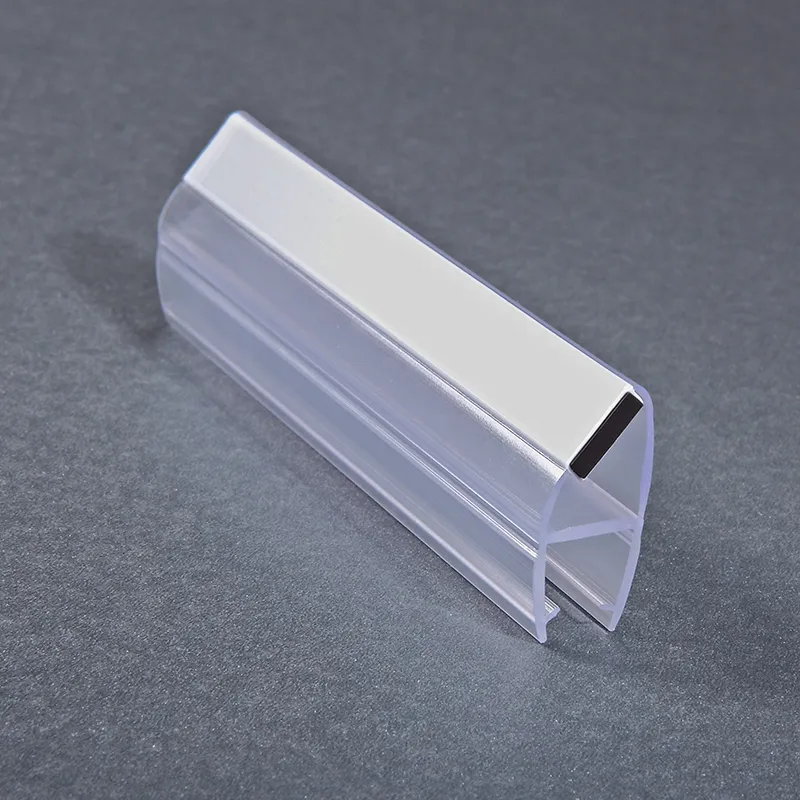

- Magnetic strip options: white or black

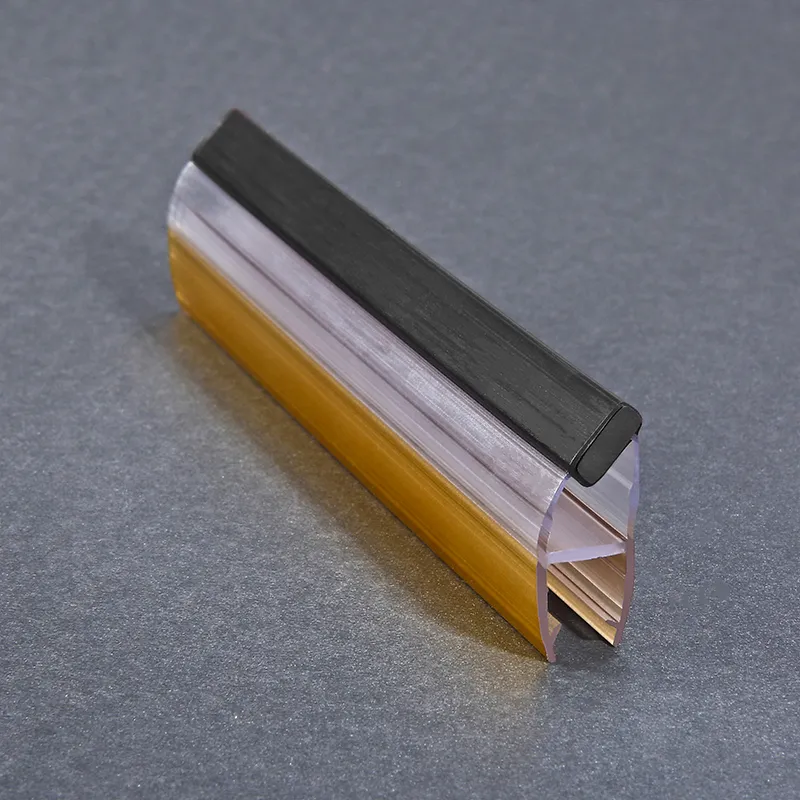

- PVC profile: clear or custom colors to match the enclosure design
Dimensions
| Glass thickness (mm) | a (mm) | b (mm) |
|---|---|---|
| 6 | 14 | 21 |
| 8 | 17 | 22 |
| 10 | 20 | 24 |
| 12 | 20 | 22.5 |
| 15 | 18 | 20 |

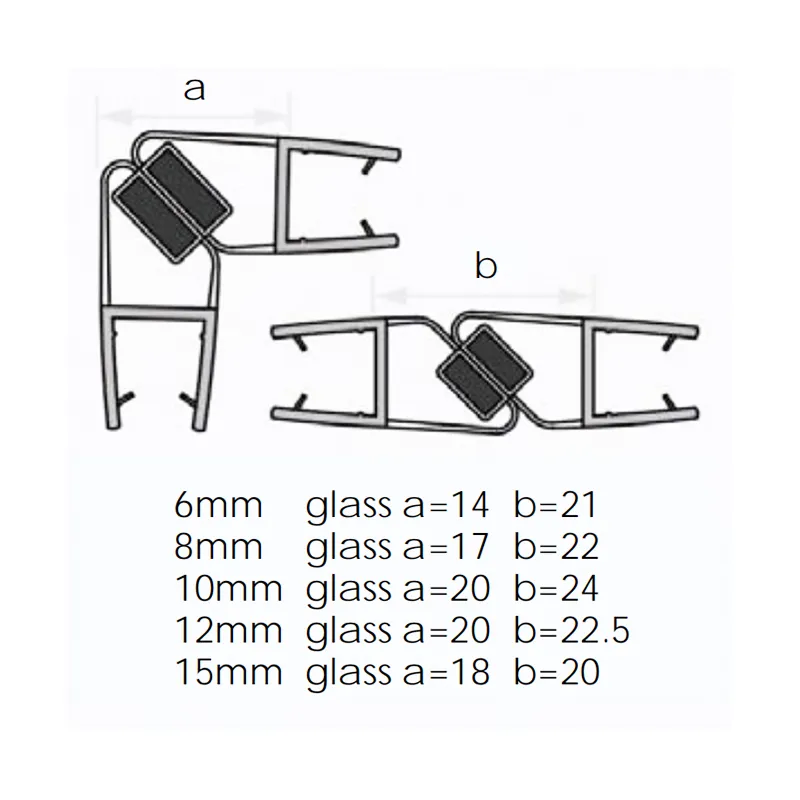

All dimensions are in millimeters. The letters a and b refer to the labels in the product drawing. Use the drawing to check the full profile geometry.
Installation notes
Measure the glass and check the closed joint before fitting. Align the magnetic faces and confirm that they attract before cutting the profiles to the required height. Test the door movement and closure after fitting.
Related profile
PS18 also supports 90°/180° arrangements, but has a different cross-section and dimensions. Check the drawing before substituting one profile for the other. See PS18 for its drawing and sizes.
