PS26 is a curved glass magnetic shower door seal for the meeting edges of curved sliding doors. The raised magnetic housing forms the 180° closing arrangement shown in the product drawing.
Application and profile selection

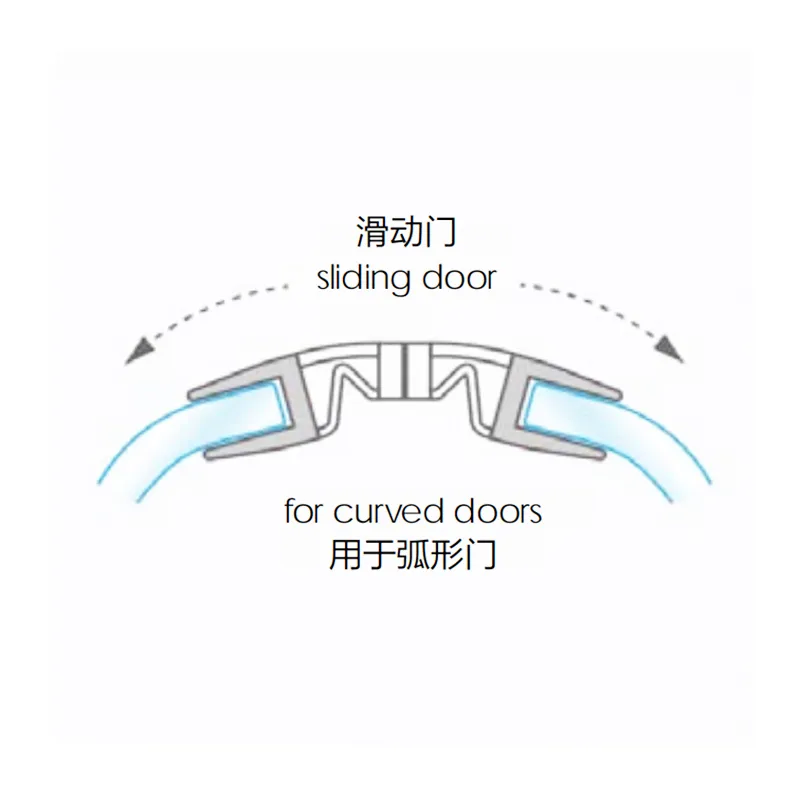

Fit the paired profiles to the closing vertical edges of the curved glass. Check the curvature, glass thickness and closed alignment together; the nominal closure angle alone does not determine whether a replacement profile will fit.
Features and specifications
- Model: PS26
- Material: co-extruded PVC profile with magnetic strip
- Glass: monolithic tempered glass; select the matching channel size
- Magnetic strip options: white or black
- PVC profile: clear or custom colors to match the enclosure design
Dimensions
| Glass thickness (mm) | a (mm) |
|---|---|
| 8 | 22 |
| 10 | 22 |

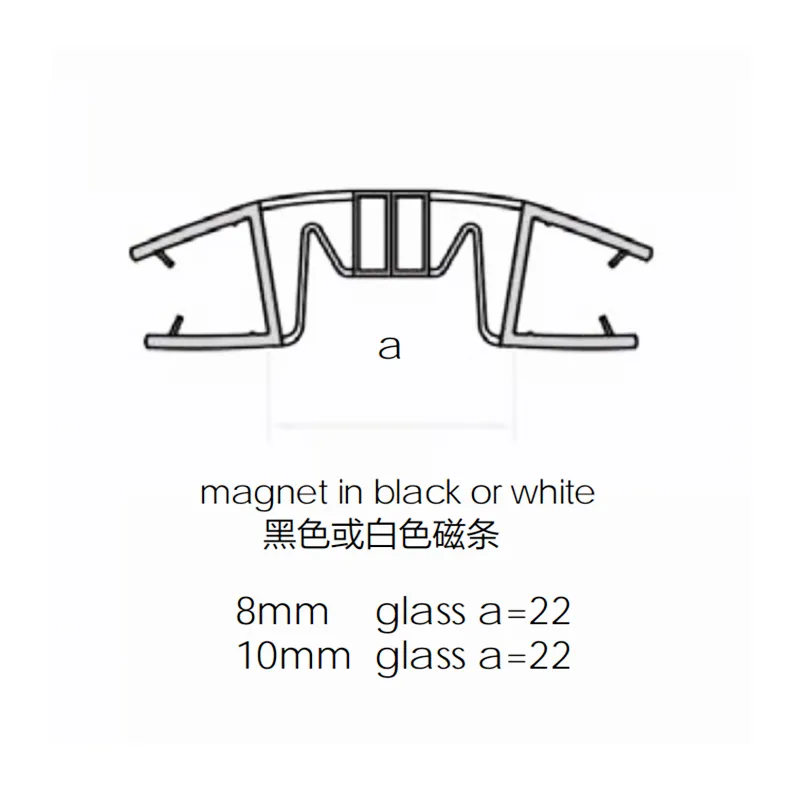

All dimensions are in millimeters. Dimension a refers to the label in the product drawing. Use the drawing to check the full profile geometry.
Installation notes
Measure the glass and check the closed joint before fitting. Align the magnetic faces and confirm that they attract before cutting the profiles to the required height. Test the door movement and closure after fitting.
Related profile
PS26 is shown for 8 and 10 mm glass. PS27 has a different curved profile and is shown for 6 and 8 mm glass. For 8 mm applications, compare both cross-sections rather than selecting by glass thickness alone. See PS27 for its drawing and sizes.
