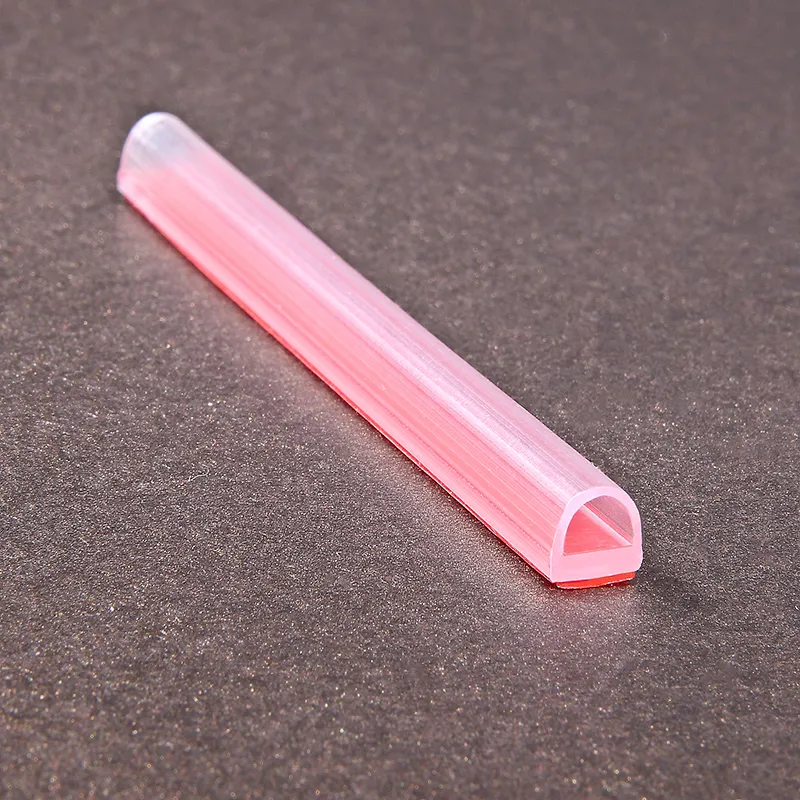

PS205 is an adhesive vinyl bulb shower door seal with a translucent PVC body and pre-applied 3M tape. The rounded bulb sits directly on a flat bonding base, creating a compact sealing section.
Application and profile design

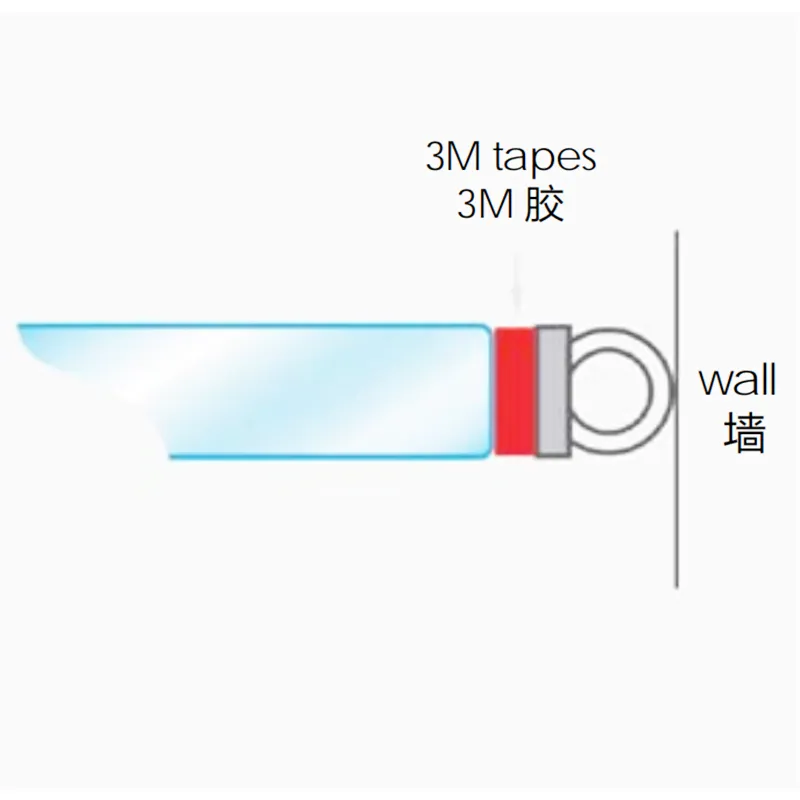

The installation drawing shows the base bonded to the glass edge, with the bulb making contact against the wall. Choose the section for the actual glass-to-wall clearance and check the bulb contact when the door closes.
Features and specifications
- Model: PS205
- Material: PVC (vinyl)
- Adhesive: pre-applied 3M tape
- Profile: Rounded bulb directly on the bonding base
- Glass thickness: 8–10 mm
- Appearance: clear / translucent
Dimensions
| Glass thickness (mm) | a (mm) | b (mm) |
|---|---|---|
| 8–10 | 6.5 | 5.5 |

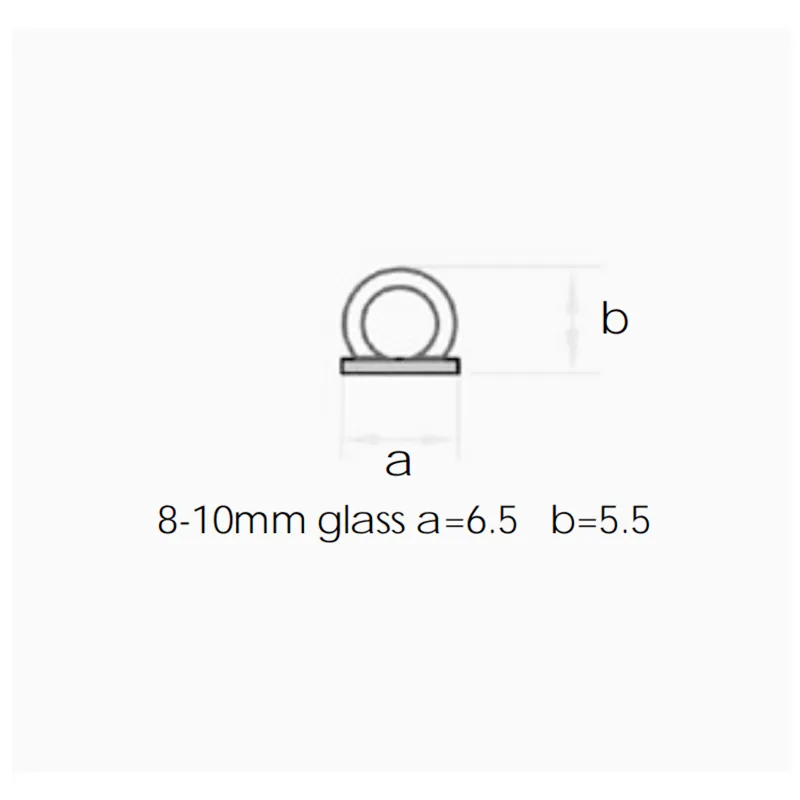

All dimensions are in millimeters. The letters a and b refer to the section drawing. Profile dimensions are not a guaranteed installation gap.
Installation notes
Test the profile position before removing the tape liner. Prepare a clean, dry bonding surface, align the strip, then press it evenly into place. Follow the tape supplier’s instructions for surface preparation and bond development before exposing the installation to water.
Related profile
PS208 has a connecting neck between the base and bulb, giving it a different projection and section height. Compare both drawings for the required contact position. See PS208 for the related profile.
