180° Adjustable Glass-to-Glass Shower Hinge

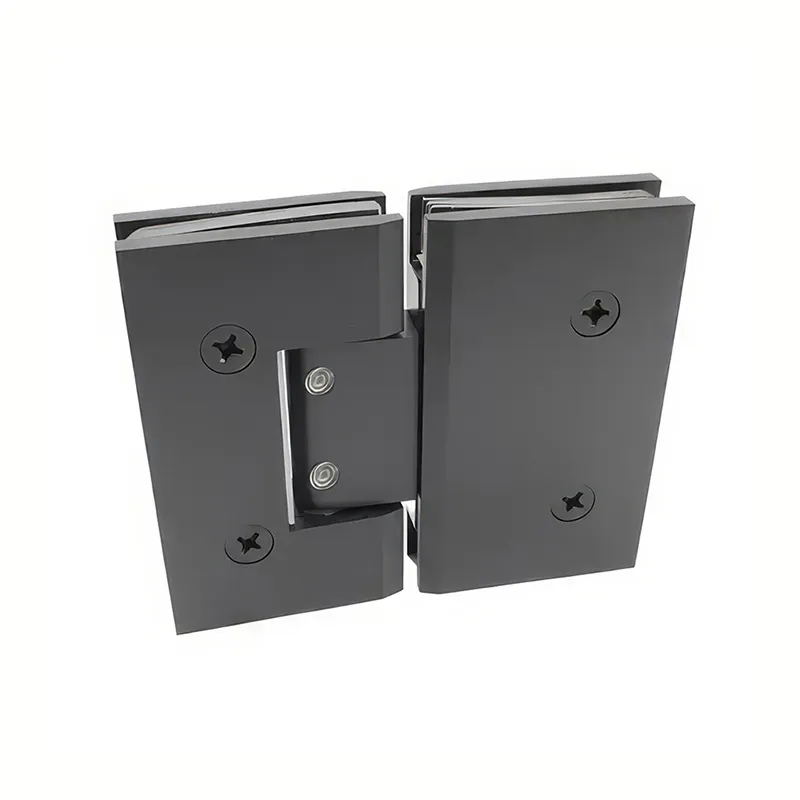

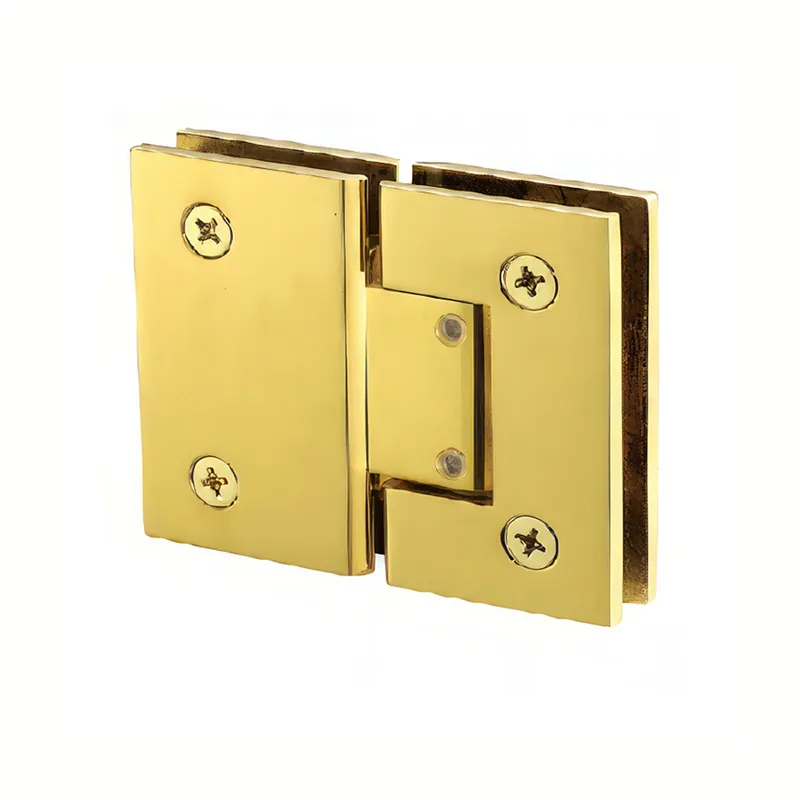

The MAXGO ASH080 connects a moving shower door to a fixed glass panel in a 180° mounting configuration. Its square-corner profile and forged solid brass construction suit frameless shower enclosures using 8–12 mm tempered glass.
This ASH model has visible fixing screws and no snap-on cover, distinguishing it from the covered ASE design.
±15° Adjustment and 15° Self-Centering
The closing position can be adjusted by ±15° after installation. Once the position is set, the hinge self-centers when the door returns to within 15° of the selected center position. These are separate specifications: the adjustment sets the closed position, while the self-centering range describes the return action around that position.
Product Specifications
| Model | ASH080 |
|---|---|
| Mounting | 180° glass-to-glass |
| Profile | Square |
| Glass thickness | 8–12 mm tempered glass |
| Material | Forged solid brass |
| Closing-position adjustment | ±15° after installation |
| Self-centering range | Within 15° of the selected center position |
| Door weight capacity | Two hinges: 90 lb; three hinges: 130 lb |
| Springs and pin | Hardened stainless steel |
| Body size | 90 mm high; each glass-clamping plate is 55 mm wide |
| Screw cover | No snap-on screw cover; fixing screws remain visible |
| Cycle test | At least 100,000 opening and closing cycles |
| Finishes | Polished chrome, brushed nickel, matte black and satin brass |
Model Selection and Glass Preparation
The gallery dimension drawing shows the hinge body size. Obtain the glass fabrication drawing for the selected model and version to confirm the cutout and hole positions before production.

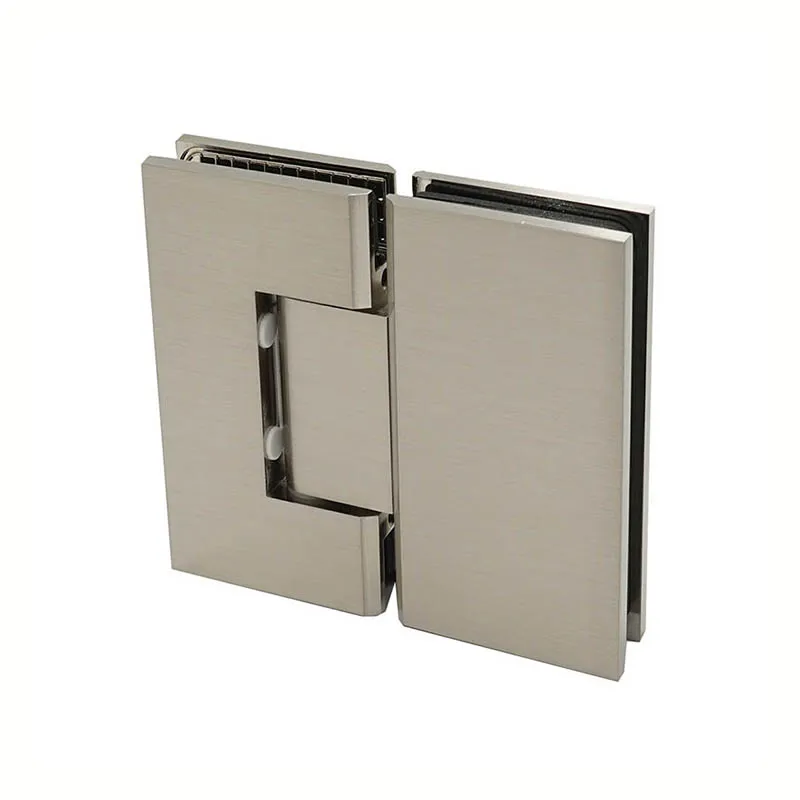

Compare ASE080 for a covered design, or view all adjustable shower door hinges. For trade quotations, specify the model, glass thickness, mounting configuration, door weight and finish.
