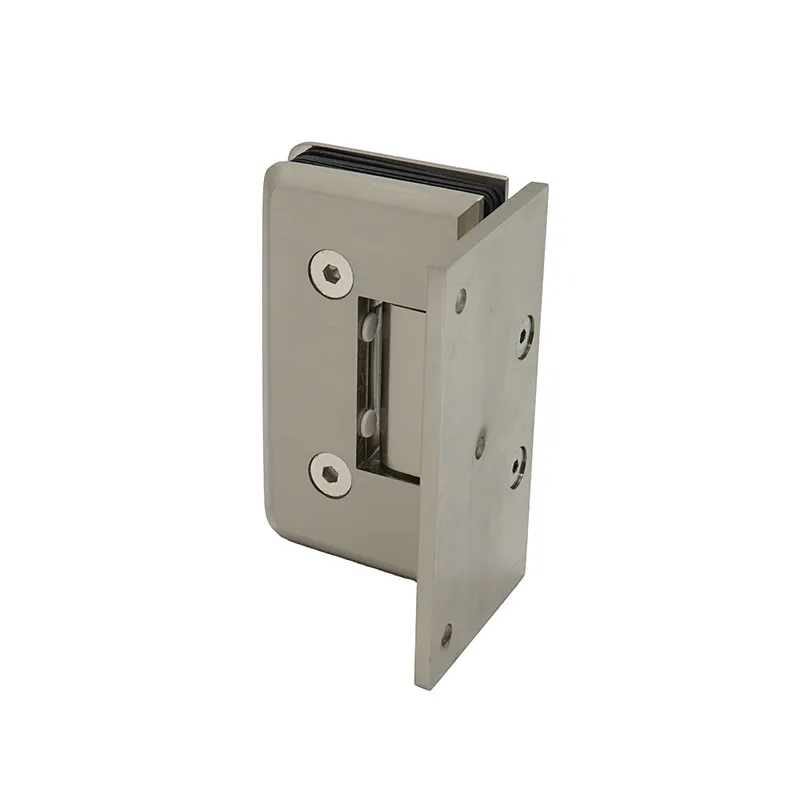

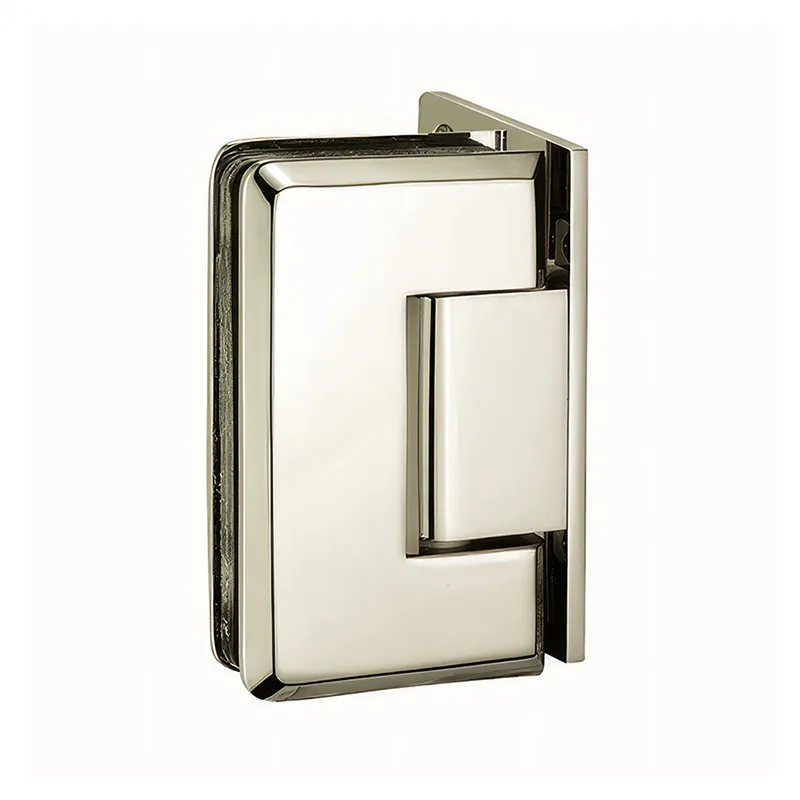

SHS501 90° Offset Back Plate Beveled Wall-to-Glass Shower Door Hinge
The SHS501 is a standard-duty 90° wall-to-glass shower door hinge with a beveled profile and offset back plate. It connects a moving shower door directly to a wall in a 90° frameless shower enclosure configuration.
The beveled exterior profile provides a different appearance from square-corner and round-corner shower hinges while retaining a reliable wall-to-glass mounting function.
90° Wall-to-Glass Configuration
SHS501 is designed for frameless shower enclosures where the moving glass door is mounted to a wall at a 90° angle.
The offset back plate is the defining plate style of this model. Glass position, cut-out and hinge quantity should be confirmed together before fabrication.
Self-Centering Action
The hinge self-centers as the door returns to within approximately 15° of the closed position.
A reversible 5° pivot pin is also available where a different resting position is required.
Product Specifications
- Model: SHS501
- Application: Wall-to-Glass
- Mounting Angle: 90°
- Plate Style: Offset Back Plate
- Profile: Beveled
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 8–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Self-Centering: Within 15° of closed position
- Optional Pivot Pin: Reversible 5°
- Screw Cover: Optional snap-on cover
- Load Reference: 2 hinges / 99 lb (45 kg); 3 hinges / 132 lb (60 kg)
- Cycle Test: At least 100,000 opening and closing cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Selecting SHS501
SHS501 is suitable when a frameless shower enclosure requires a 90° wall-to-glass beveled hinge with an offset back plate.
For a 90° wall-to-glass configuration with a full back plate, see the SHS502 90° Full Back Plate Beveled Shower Door Hinge.
Browse our Standard Duty Shower Door Hinges range for other mounting angles and hinge designs.
