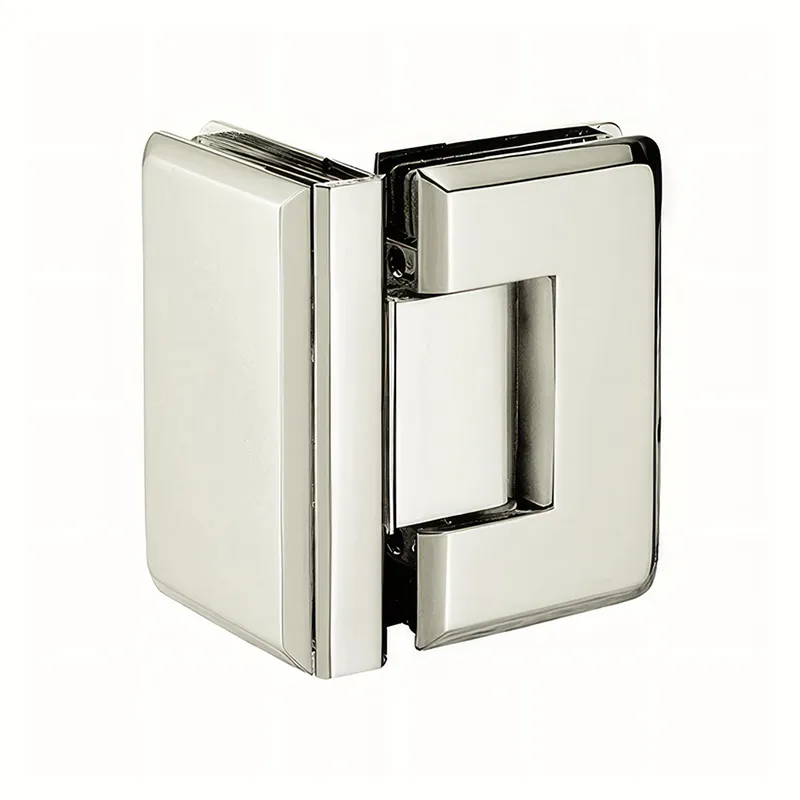

SHS590 90° Glass-to-Glass Radius Corner Shower Door Hinge
The SHS590 is a standard-duty 90° glass-to-glass shower door hinge with a beveled profile and radius corners. It connects a moving shower door to a fixed glass panel in a 90° frameless shower enclosure configuration.
The radius-corner exterior is the defining appearance of SHS590. It distinguishes this model from the standard beveled-corner SHS490 while retaining the same 90° glass-to-glass mounting function.
90° Glass-to-Glass Configuration
SHS590 is designed for frameless shower enclosures where the moving door and fixed glass panel meet in a 90° configuration.
The hinge connects glass directly to glass rather than mounting to a wall. Glass position, cut-out and hinge quantity should be confirmed together before fabrication.

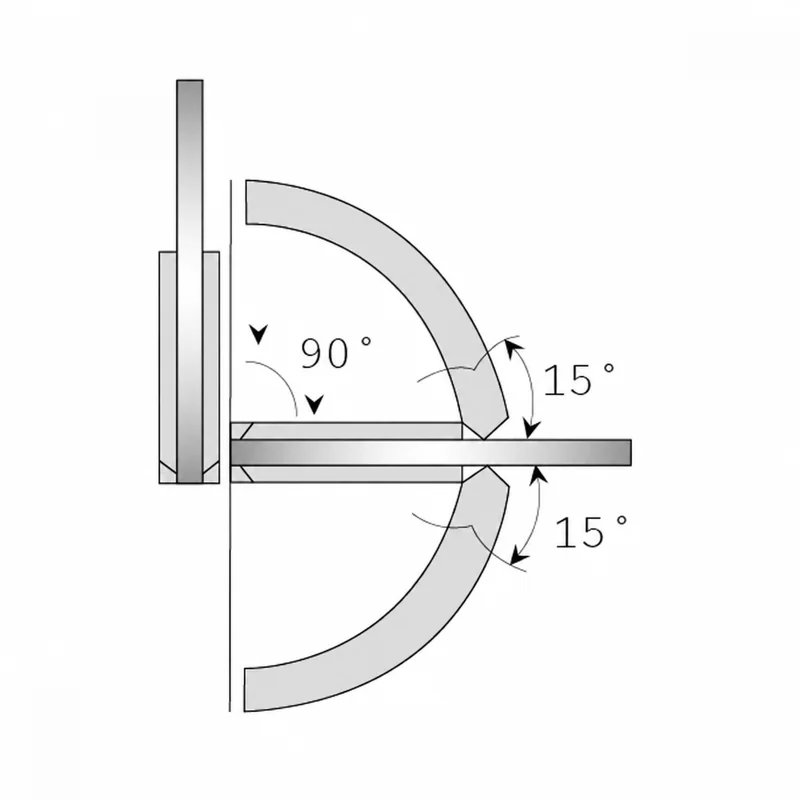

Self-Centering Action
The hinge self-centers as the door returns to within approximately 15° of the closed position.
A reversible 5° pivot pin is also available where a different resting position is required.
Product Specifications
- Model: SHS590
- Application: Glass-to-Glass
- Mounting Angle: 90°
- Profile: Beveled Profile with Radius Corners
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 10–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Self-Centering: Within 15° of closed position
- Optional Pivot Pin: Reversible 5°
- Screw Cover: Optional snap-on cover
- Load Reference: 2 hinges / 90 lb; 3 hinges / 130 lb
- Cycle Test: At least 100,000 opening and closing cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Selecting SHS590
SHS590 is suitable when a frameless shower enclosure requires a 90° glass-to-glass hinge with a beveled profile and radius corners.
For a 90° glass-to-glass configuration with a standard beveled-corner profile, see the SHS490 90° Beveled Glass-to-Glass Shower Door Hinge.
Browse our Standard Duty Shower Door Hinges range for other mounting angles and hinge designs.
