90° Wall-to-Glass Light Duty Shower Screen Hinge

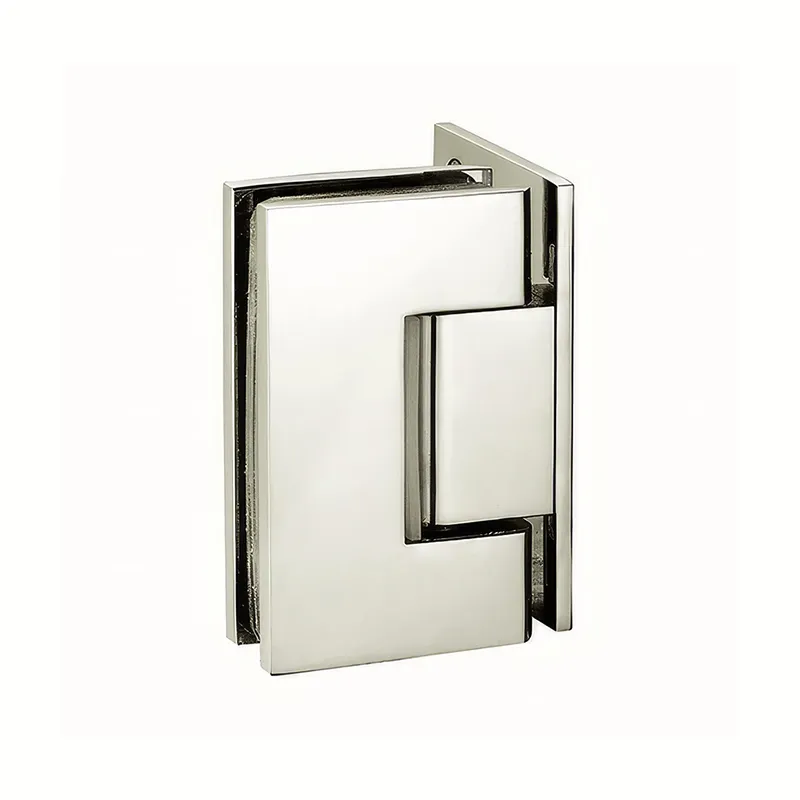

The MAXGO SHL001 connects a glass shower door to the wall using an offset back plate. Its compact 75 mm solid brass body is designed for lighter frameless shower screens and bath screens using 6–8 mm tempered glass. Square edges and corners distinguish this model within the SHL range.
Technical Specifications
| Model | SHL001 |
|---|---|
| Mounting | 90° wall-to-glass; offset back plate |
| Profile | Square edges and corners |
| Back plate options | Offset Back Plate; H-shaped back plate also available |
| Body height | 75 mm |
| Material | Solid brass |
| Glass thickness | 6–8 mm tempered glass |
| Maximum door weight | 35 kg with two hinges; 50 kg with three hinges |
| Closing action | Self-centering within 15° of the closed position |
| Glass preparation | Standard rounded-corner cutout or mouse-ear cutout; both are standard options |
| Gasket options | PVC, asbestos-free gaskets or rubber gaskets |
| Cover plates | None |
| Finishes | Polished chrome, brushed nickel, matte black and satin brass |
Glass Preparation and Model Selection
Both ordinary rounded-corner and mouse-ear glass cutouts are standard options across the SHL series. Refer to the corresponding cutout drawing when matching hardware to fabricated glass. The mounting angle describes the enclosure layout; the self-centering range is 15° from the closed position.
An H-shaped back plate is a standard available option for SHL wall-mounted models. The product gallery shows the listed back plate configuration.
Compare SHL201 and SHL401 for other profiles in the same mounting layout, or see the complete SHL light duty shower screen hinge range. For trade enquiries, include the model, glass thickness, door weight, cutout pattern and finish, plus the required back plate.
