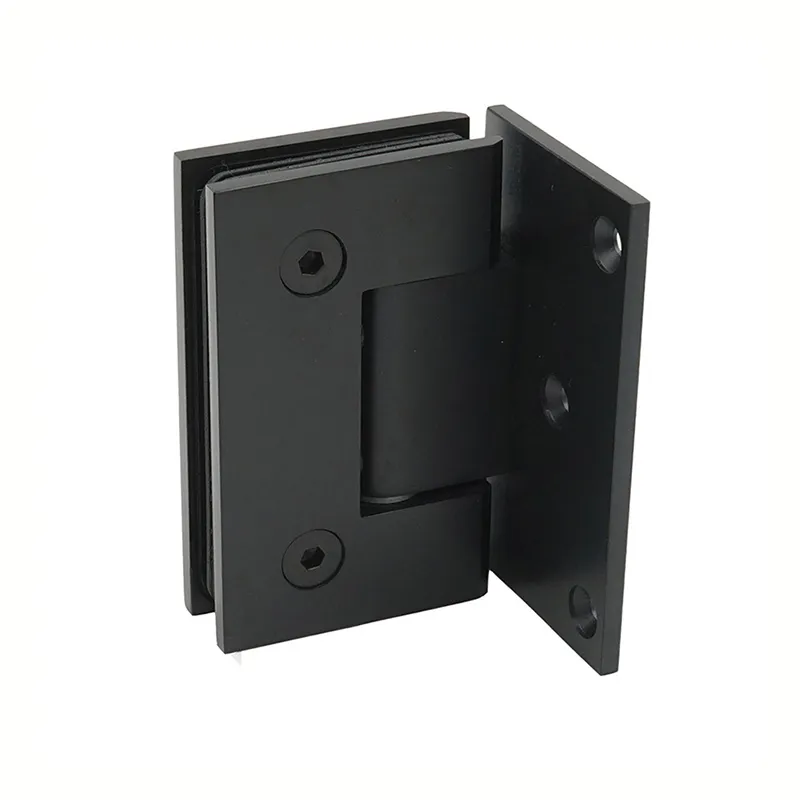

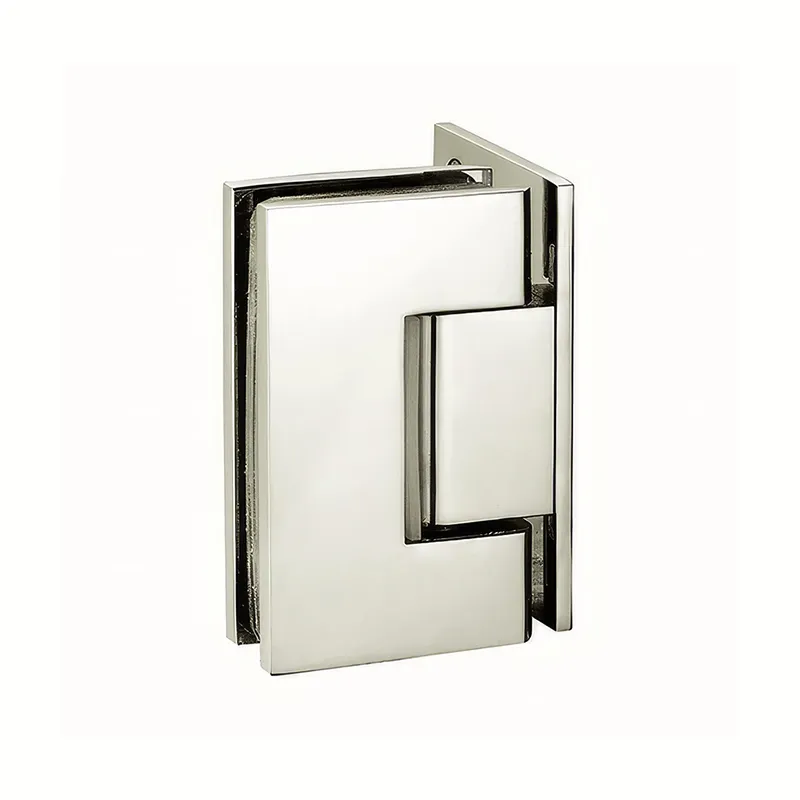

SHS001 90° Offset Back Plate Shower Door Hinge
The SHS001 is a standard-duty 90° wall-to-glass shower door hinge featuring an offset back plate and square-corner design. It is designed for frameless shower doors using 8–12 mm tempered glass.
The offset back plate provides a different wall fixing position from a conventional full-back plate, while the square-corner body gives the hinge a clean, straight-edged appearance.
Self-Centering Action
The hinge self-centers as the door returns to within approximately 15° of the closed position.
A reversible 5° pivot pin is also available for applications where a different resting position is required.
Product Specifications
- Model: SHS001
- Application: Wall-to-Glass
- Mounting Angle: 90°
- Back Plate: Offset Back Plate
- Corner Style: Square Corner
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 8–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Self-Centering: Within 15° of closed position
- Optional Pivot Pin: Reversible 5°
- Screw Cover: Optional snap-on cover
- Load Reference: 2 hinges / 99 lb (45 kg); 3 hinges / 132 lb (60 kg)
- Cycle Test: At least 100,000 opening and closing cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Selecting SHS001
SHS001 is suitable when the shower enclosure requires a 90° wall-to-glass hinge with an offset back plate and square-corner design.
For projects requiring a different back plate, corner profile or glass-to-glass configuration, browse our Standard Duty Shower Door Hinges range.
