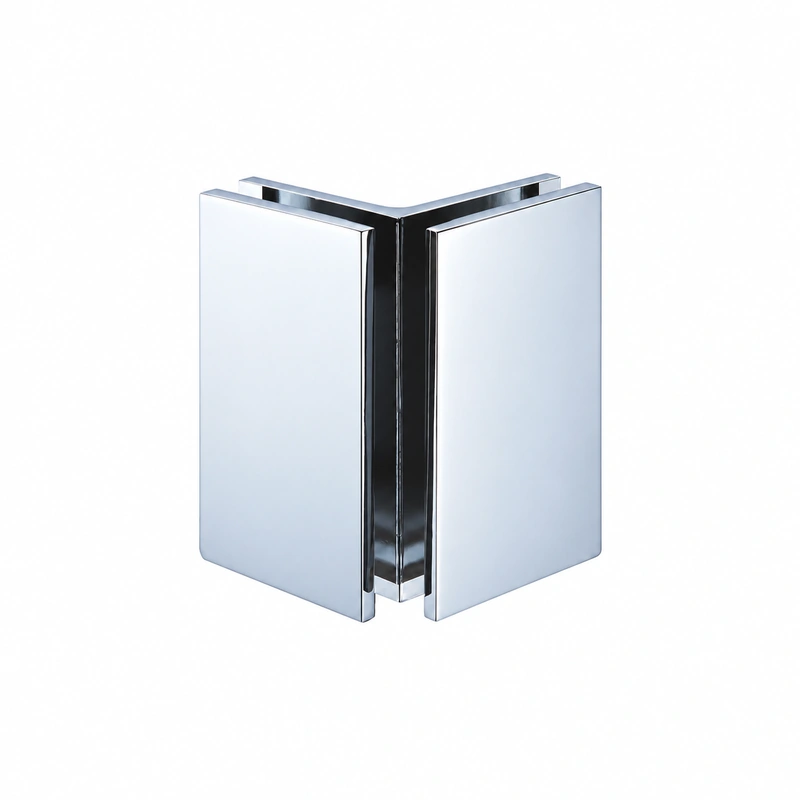

The MAXGO GCH090 90 degree square glass bracket joins fixed glass panels at a right-angle shower corner. Its flat face and square edges coordinate with square shower hinges and handles.
Select this glass-to-glass configuration where two stationary panels meet at 90°. Both sides attach to glass, so the panel layout and glass preparation should be checked together before manufacture.
GCH090 features and specifications
- Material: Solid brass
- Connection: 90° glass to glass
- Profile: Square
- Glass: Monolithic tempered glass, 8–12 mm (5/16"–1/2")
- Glass preparation: Round holes to the matching connection drawing
Glass preparation and installation

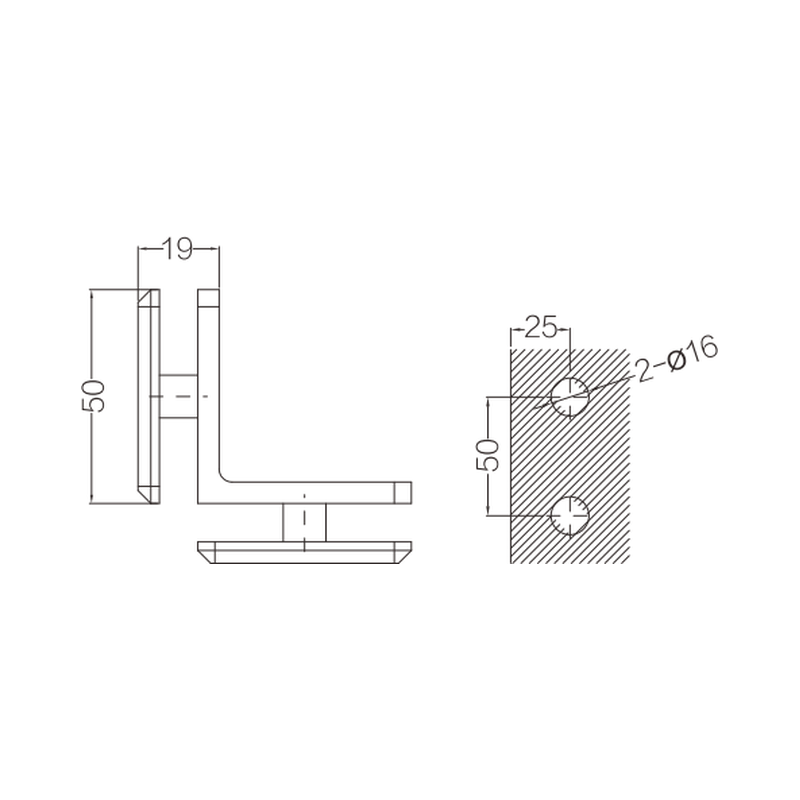

Use the 90° glass-to-glass dimension and glass drilling drawing in the gallery. Confirm hole positions and edge distances against the actual bracket before ordering the glass. Complete all glass cutting and drilling before tempering. Fit gaskets appropriate for the glass thickness and keep metal surfaces clear of the glass.
Align the panels at the specified connection angle before securing the bracket. Determine bracket quantity and positions for the individual enclosure.
Finishes and ordering
Available finishes are Polished Chrome, Brushed Nickel, Polished Nickel, Matte Black and Satin Brass. Specify GCH090, the finish, glass thickness and quantity when requesting a quotation.
Related models
For a beveled face at the same right-angle glass corner, compare GCH290. Browse the shower glass bracket range for other connection angles and profiles.
