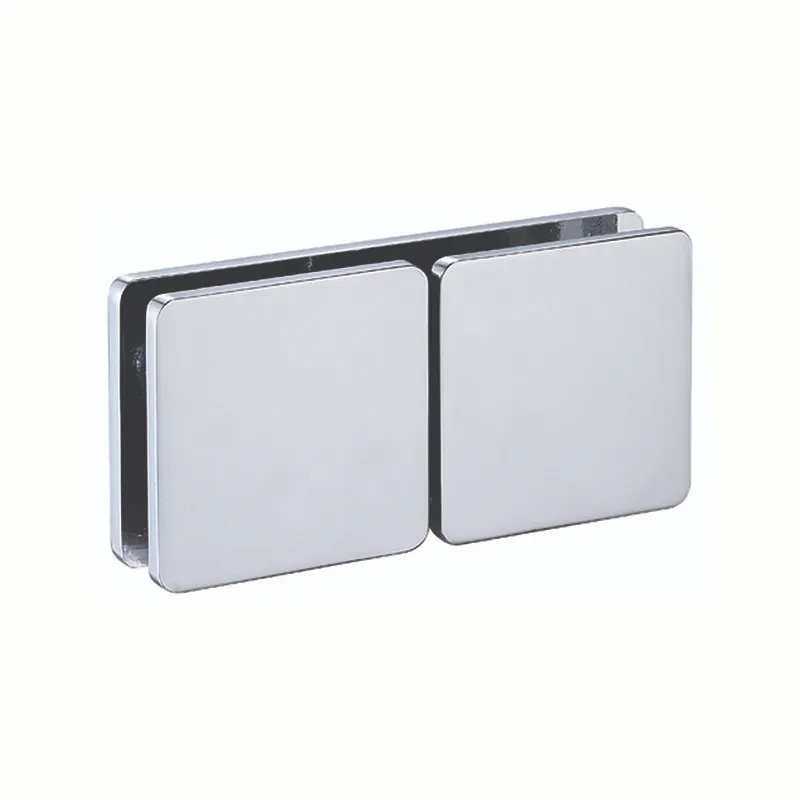

MAXGO GC480 is a solid brass glass clamp for stationary panels in frameless shower enclosures. It connects stationary panels in a straight 180° alignment. Its rounded profile matches GC435 and GC490 at other junctions.
Features and Specifications
- Model: GC480
- Material: solid brass
- Connection: Rounded 180° glass-to-glass connection
- Glass: 6–12 mm monolithic tempered glass
Dimensions and Glass Preparation
45 mm and 50 mm versions are available. Specify the required body size and use the corresponding drawing before glass fabrication.
Confirm the complete glass preparation profile and fixing positions from the approved model drawing. Complete all holes and notches before tempering.
Installation and Finish Options
Check that the panel junction matches the specified 180° connection. Fit the correct gaskets for the glass thickness, prevent direct metal-to-glass contact and tighten evenly. Clamp quantity and other supports depend on the complete enclosure design.
Selectable finishes: Matte Black, Polished Chrome, Satin Brass and Satin Chrome. Brushed Nickel is also available by enquiry. Specify the model, body size and finish when ordering.
Compare other connections: GC401, GC402, GC435. Match the mounting geometry and drawing to your panel layout.
