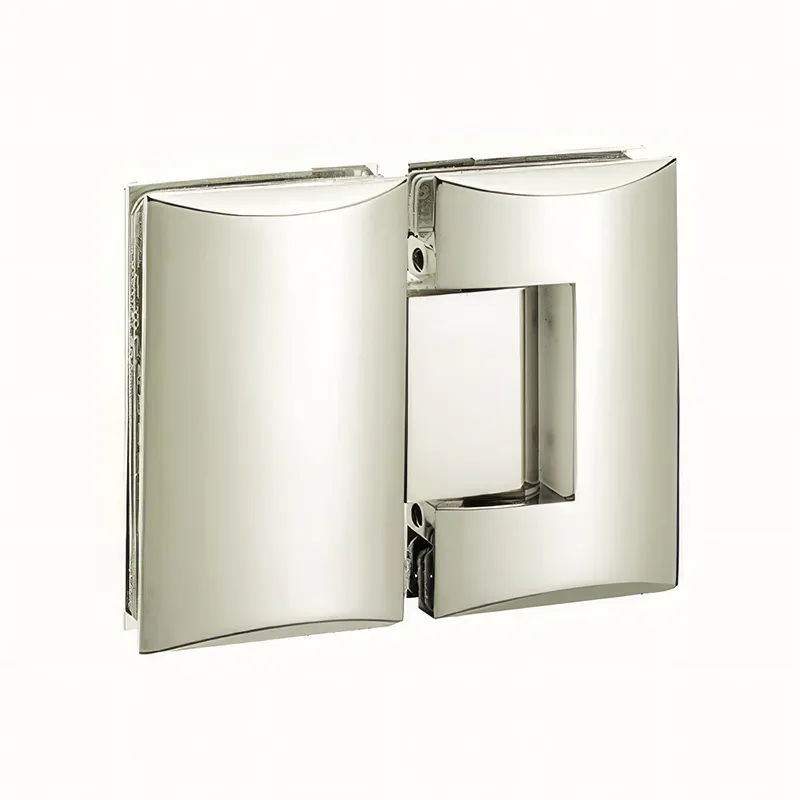

SHS680 Standard Duty 180° Beveled Corner Shower Door Hinge
The SHS680 is a standard-duty 180° shower door hinge with a beveled corner profile. It is designed for frameless glass shower enclosures where the moving door and fixed glass panel align in a straight 180° configuration.
The beveled corner profile gives the hinge a clean, angular exterior appearance while maintaining its glass-to-glass mounting function.
180° Glass-to-Glass Configuration
SHS680 is designed for glass-to-glass shower door installation where the moving door and fixed glass panel are aligned at 180°.
Glass position, cut-out and hinge quantity should be confirmed together before fabrication.
Closing Performance
The hinge self-centers as the door returns to within approximately 15° of the closed position.
A reversible 5° pivot pin is also available where a different resting position is required.
Product Specifications
- Model: SHS680
- Application: Glass-to-Glass
- Mounting Angle: 180°
- Profile: Beveled Corner
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 10–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Self-Centering: Within 15° of closed position
- Optional Pivot Pin: Reversible 5°
- Screw Cover: Optional snap-on cover
- Load Reference: 2 hinges / 90 lb; 3 hinges / 130 lb
- Cycle Test: At least 100,000 opening and closing cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
- Accessories: Gaskets, stainless steel mounting screws and Allen wrench
Glass Cut-Out and Installation

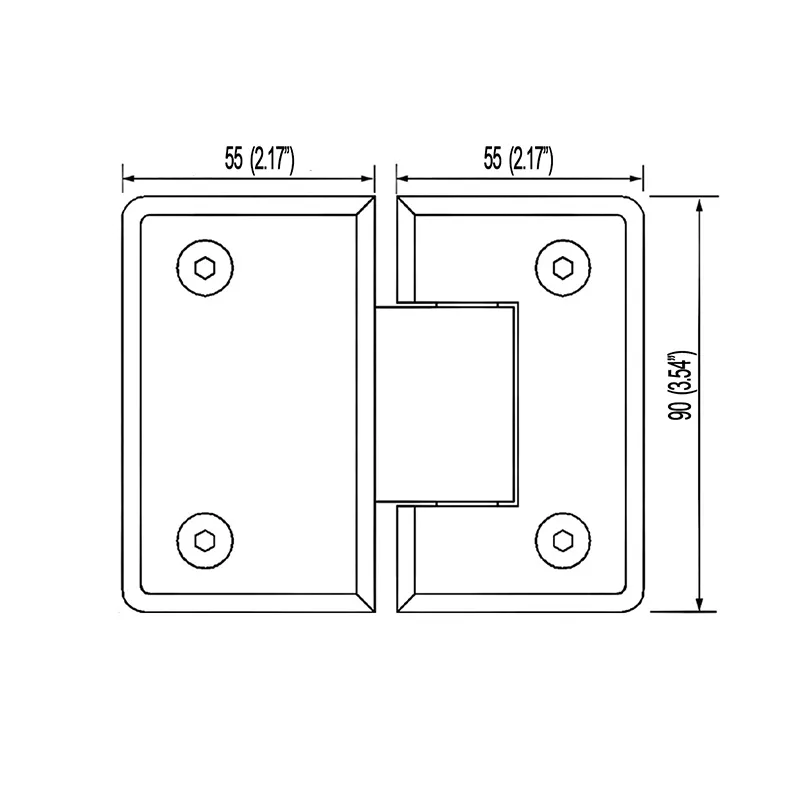

Use the SHS680 technical drawing to confirm the glass cut-out, panel position and hinge quantity before glass fabrication.
For correct installation, use the supplied gaskets and mounting hardware. Door size and weight should be checked against the hinge quantity and load reference.
Selecting SHS680
SHS680 is suitable when a frameless shower enclosure requires a standard-duty 180° shower door hinge with a beveled corner profile.
Browse our Standard Duty Shower Door Hinges range for other mounting angles and hinge designs.
