SCE080 Adjustable 180° Rectangular Glass-to-Glass Shower Hinge

SCE080 Adjustable 180° Glass-to-Glass Shower Hinge

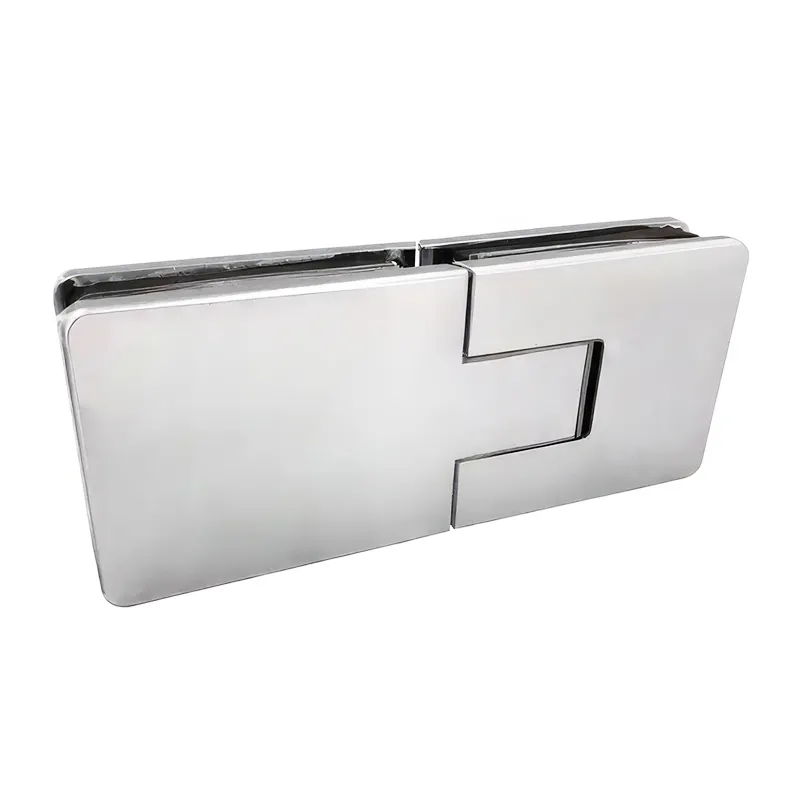

SCE080 connects a frameless shower door to a fixed glass panel in a straight 180° configuration. Its rectangular exterior profile provides the visual distinction for this model.

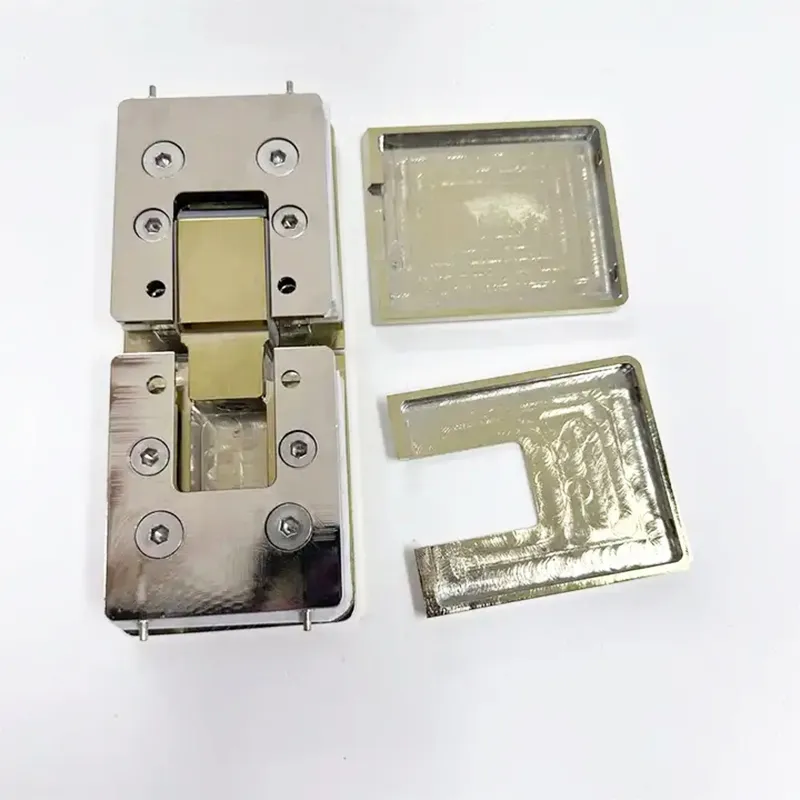

The hinge is made from solid brass and uses snap-on covers to conceal the mounting screws.

Adjustable Closing Position

The closed position can be adjusted after installation. Loosen the Allen adjustment screws, align the door with the fixed panel, then retighten the screws to set its closing position.

The hinge self-centers as the door returns to within approximately 15° of the set position.

Glass Preparation

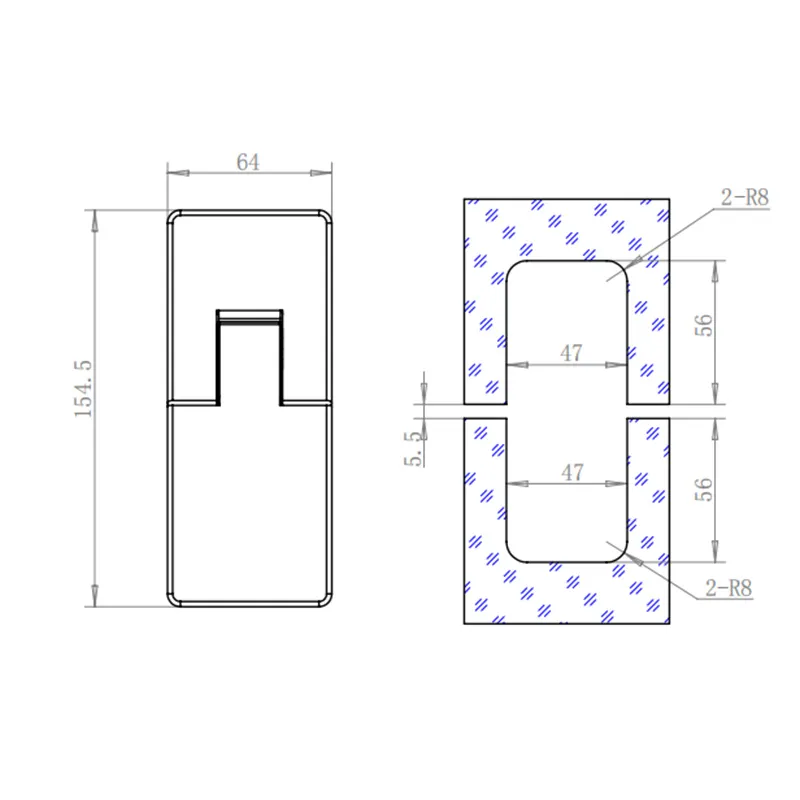

Confirm the glass cut-outs, hinge positions and door-to-panel gap against the SCE080 technical drawing before fabrication. Select gaskets suited to the installed glass thickness.

Product Specifications

• Model: SCE080
• Application: Glass-to-Glass
• Configuration: 180°
• Exterior Profile: Rectangular
• Material: Solid Brass
• Glass Thickness: 8–12 mm Tempered Glass
• Closing Position: Adjustable After Installation
• Self-Centering: Within Approximately 15° of the Set Closing Position
• Screw Cover: Snap-on Covers Conceal Mounting Screws
• Spring and Pin: Hardened Stainless Steel
• Cycle Test: At Least 100,000 Opening and Closing Cycles
• Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass

Selecting SCE080

Choose SCE080 for a straight 180° glass-to-glass installation requiring an adjustable closing position, concealed mounting screws and a rectangular hinge profile.
For the SCH series slim-gap design in a 180° configuration, see the SCH080 Adjustable Glass-to-Glass Shower Hinge.
Browse the Concealed Screw Shower Door Hinges range for other mounting angles and exterior designs.
