SCE280 Adjustable 180° Glass-to-Glass Shower Door Hinge with Concealed Screws MAXGO®

SCE280 Adjustable 180° Glass-to-Glass Shower Door Hinge

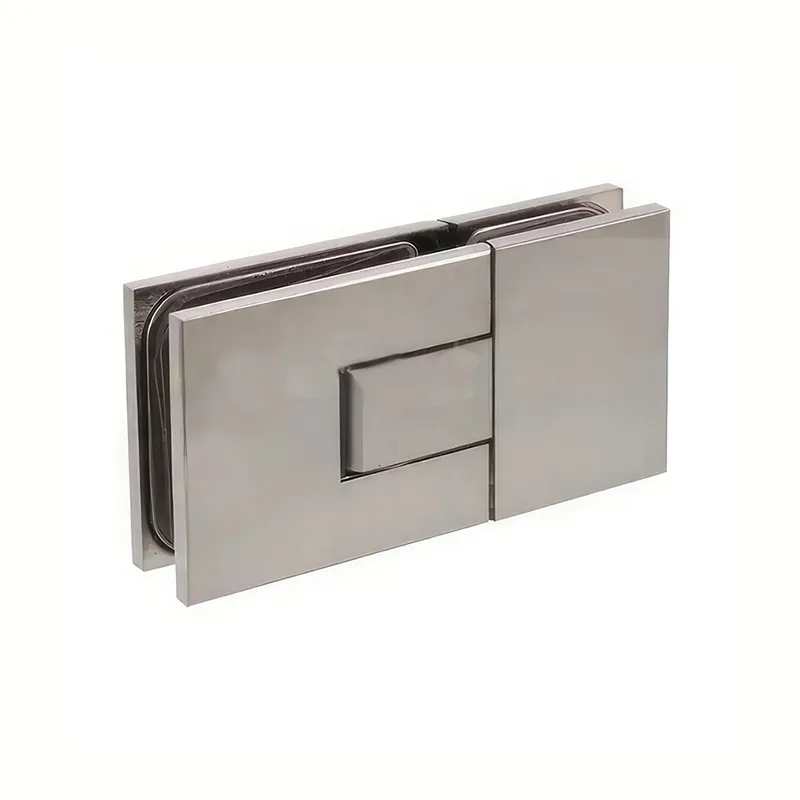

SCE280 connects a frameless shower door to a fixed glass panel in a straight 180° configuration. The solid brass hinge has covers that conceal the mounting screws.

Its closing position can be adjusted after the door is installed, allowing the door to be aligned with the fixed panel.

Adjustable Closing Position

Loosen the Allen adjustment screws, move the door to the desired closed position, then retighten the screws. The hinge self-centers as the door returns to within approximately 15° of that position.

Glass Preparation

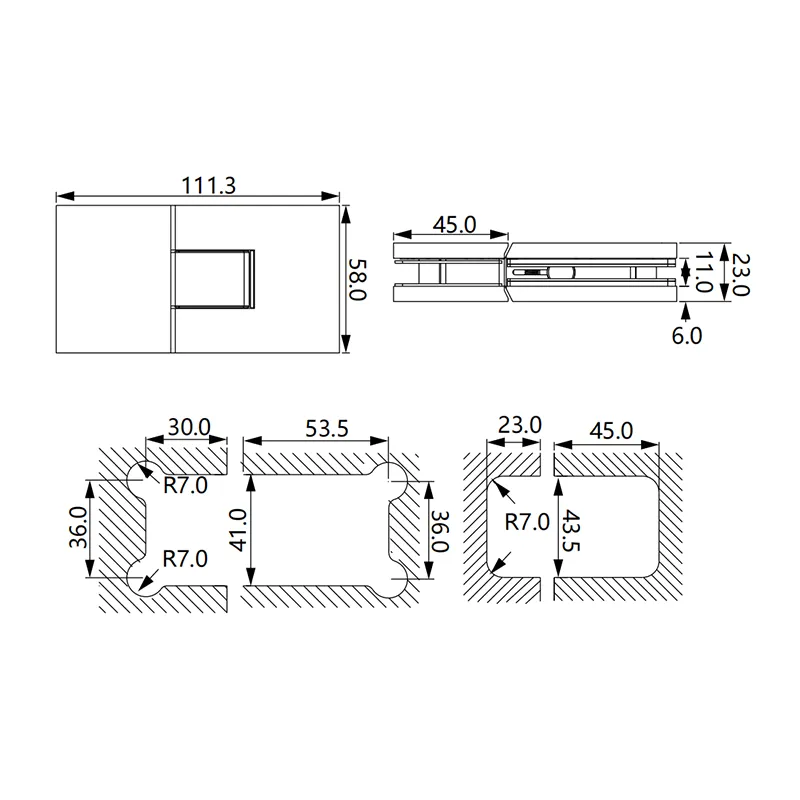

Confirm the SCE280 dimensions, glass cut-outs, hinge positions and door-to-panel gap against its own technical drawing before fabrication. When comparing SCE280 with SCE080, check both models’ drawings rather than assuming they use identical dimensions or cut-outs.

Product Specifications

• Model: SCE280
• Application: Glass-to-Glass
• Configuration: 180°
• Material: Solid Brass
• Glass Thickness: 8–12 mm Tempered Glass
• Closing Position: Adjustable After Installation
• Self-Centering: Within Approximately 15° of the Set Closing Position
• Screw Covers: Covers Conceal Mounting Screws
• Spring and Pin: Hardened Stainless Steel

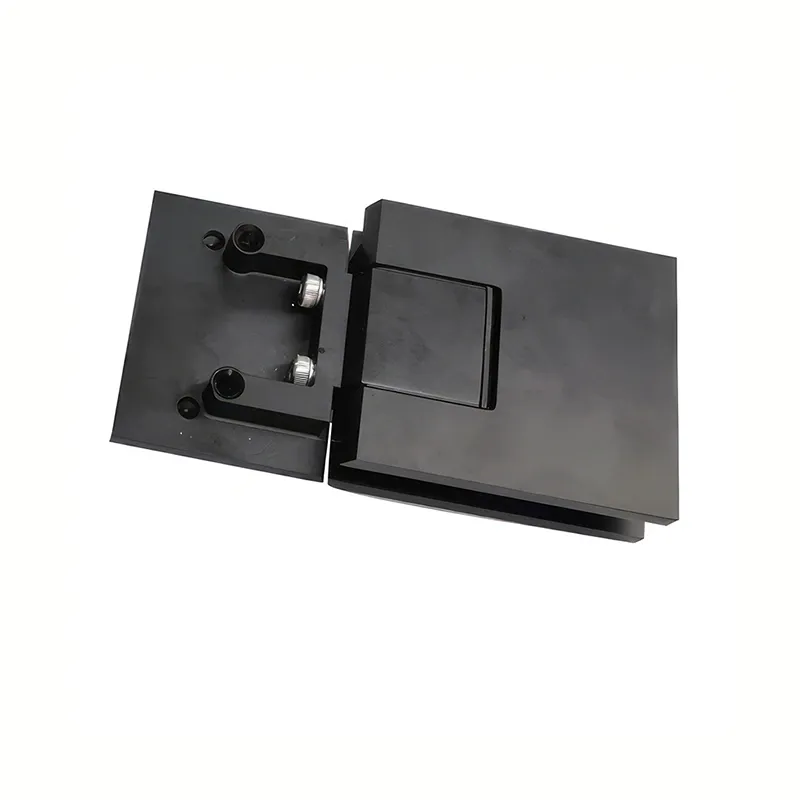

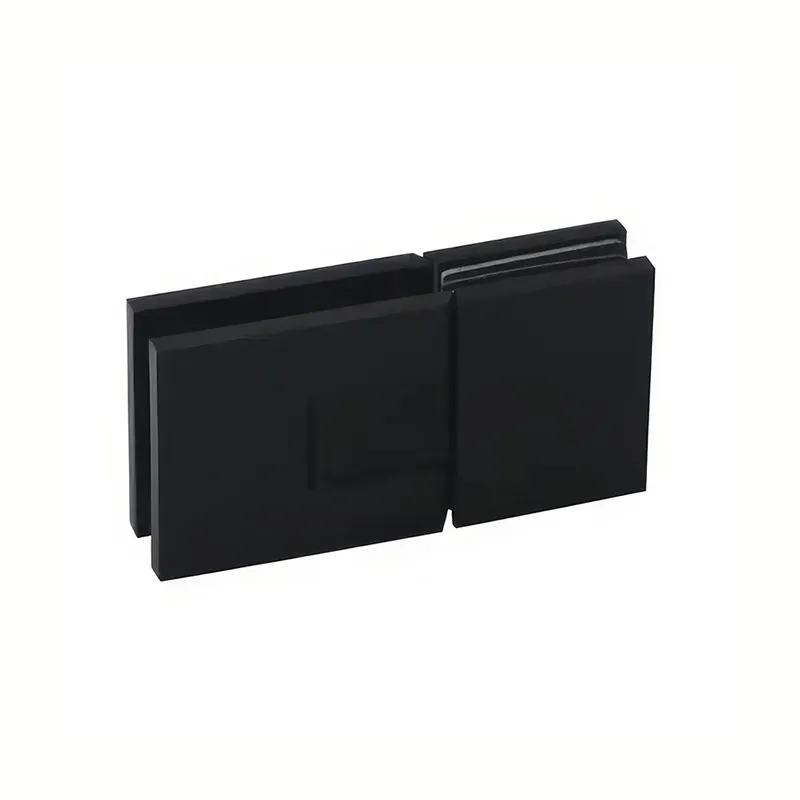

• Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
• Dimensions and Glass Cut-Out: Refer to the SCE280 Technical Drawing

Selecting SCE280

Choose SCE280 for an adjustable 180° glass-to-glass shower door installation with concealed mounting screws. Confirm its dimensions and glass cut-out against the project drawing before selecting or substituting the hinge.
Compare the SCE080 Adjustable 180° Glass-to-Glass Shower Hinge when selecting a different hinge design for the same mounting arrangement.
Browse the Concealed Screw Shower Door Hinges range for other angles and mounting types.
