135° Adjustable Glass-to-Glass Shower Hinge

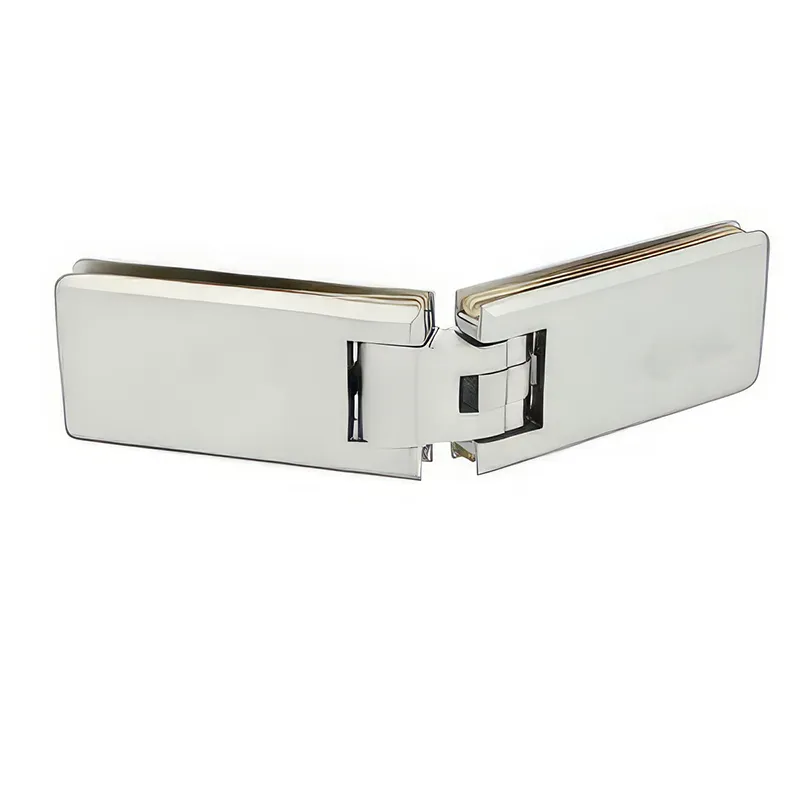

The MAXGO ASD035 connects a moving shower door to a fixed glass panel in a 135° mounting configuration. Its rectangular profile and forged solid brass construction suit frameless shower enclosures using 8–10 mm tempered glass.
The horizontal rectangular body distinguishes the ASD range from the upright ASC, ASE and ASH hinge profiles.
±15° Adjustment and 15° Self-Centering
The closing position can be adjusted by ±15° after installation. Once the position is set, the hinge self-centers when the door returns to within 15° of the selected center position. These are separate specifications: the adjustment sets the closed position, while the self-centering range describes the return action around that position.
Product Specifications
| Model | ASD035 |
|---|---|
| Mounting | 135° glass-to-glass |
| Profile | Rectangular |
| Glass thickness | 8–10 mm tempered glass |
| Material | Forged solid brass |
| Closing-position adjustment | ±15° after installation |
| Self-centering range | Within 15° of the selected center position |
| Door weight capacity | Two hinges: 95 lb (43 kg); three hinges: 135 lb (61 kg) |
| Springs and pin | Hardened stainless steel |

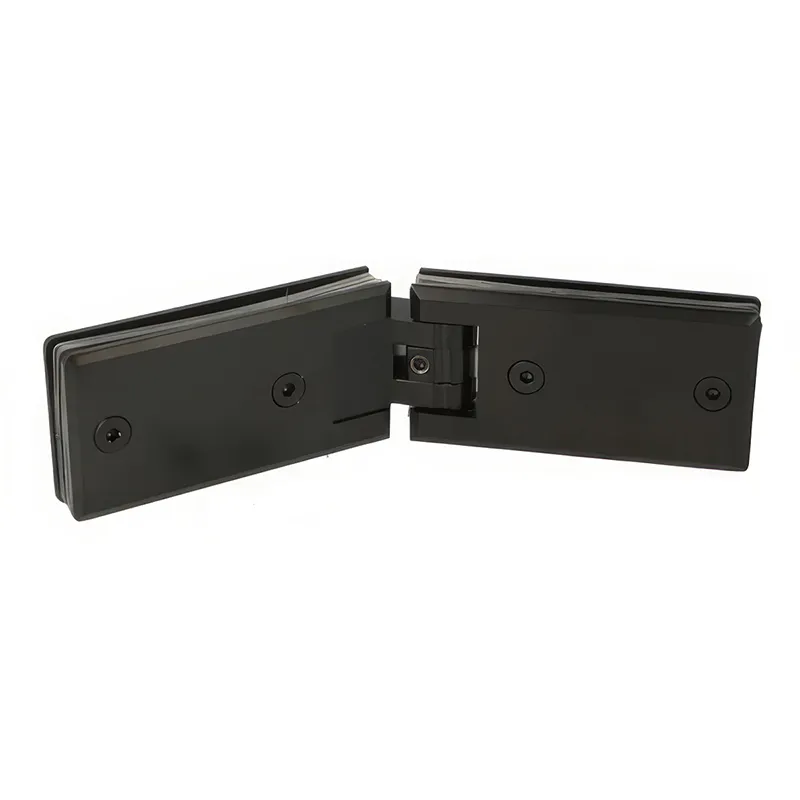

| Finishes | Polished chrome, brushed nickel and matte black |
| Included accessories | Gaskets, mounting screws and Allen wrench |
Model Selection and Glass Preparation

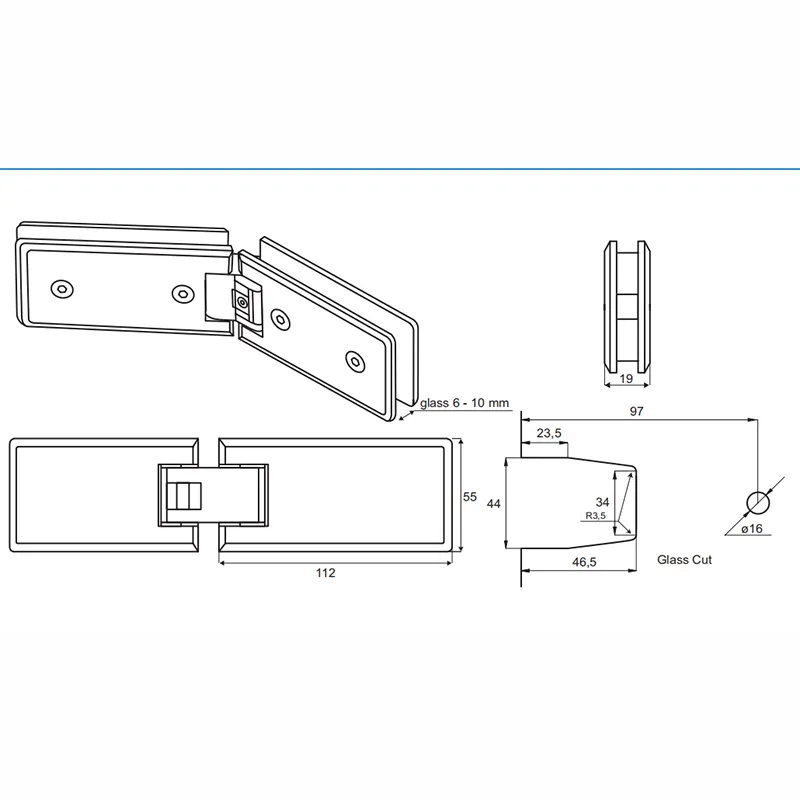

Use the model drawing for body dimensions and glass preparation. Match the 8–10 mm glass specification and required mounting layout before fabrication.
Compare ASC035 for another back plate or body profile, or view all adjustable shower door hinges. For trade quotations, specify the model, glass thickness, mounting configuration, door weight and finish.
