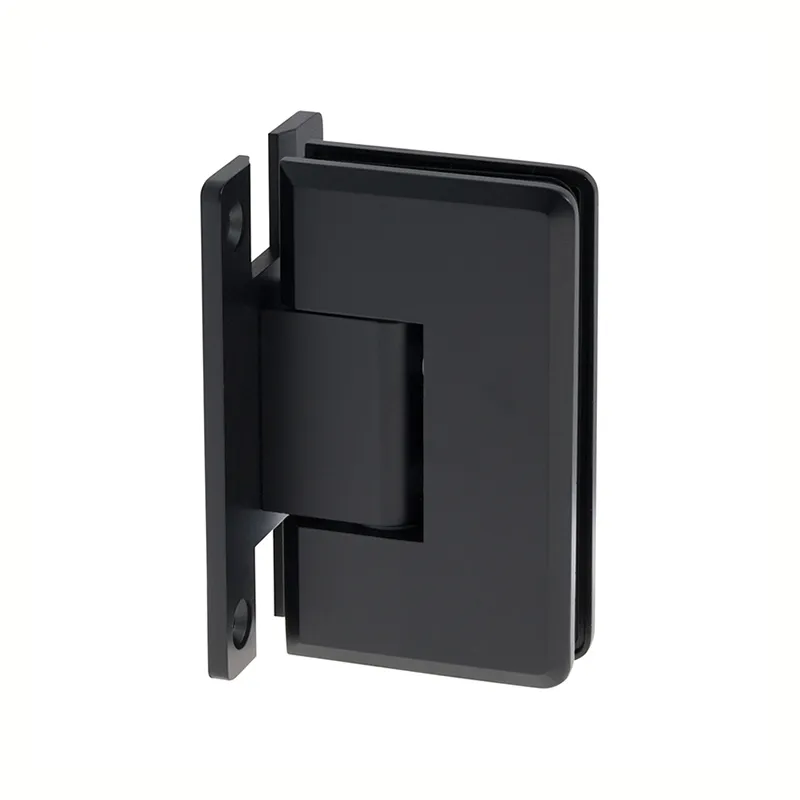

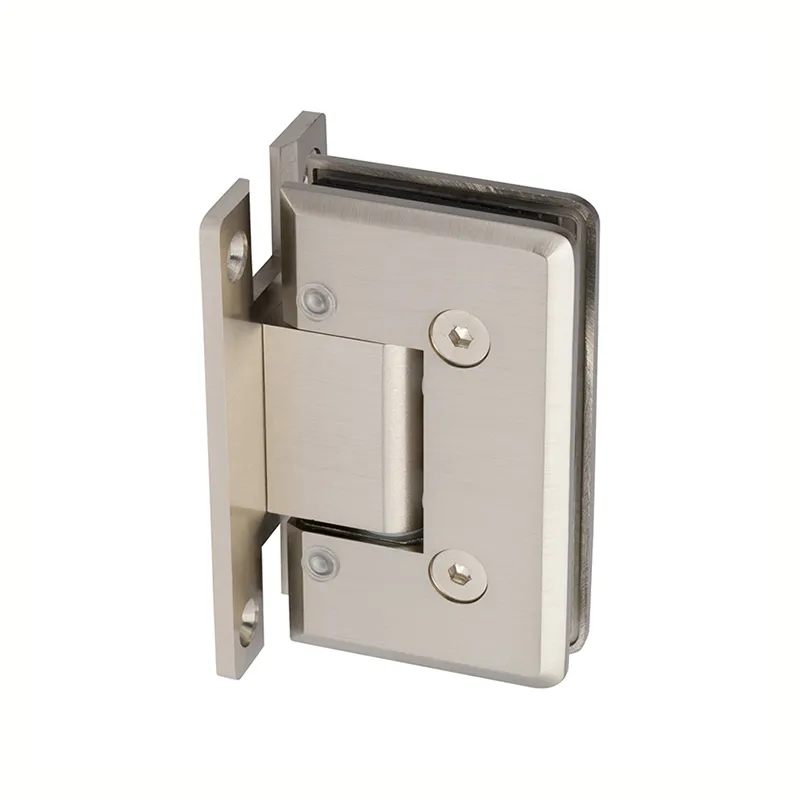

ASE201 Adjustable 90° Wall-to-Glass Shower Hinge
The ASE201 mounts a moving shower door to a wall in a 90° wall-to-glass configuration. It has a full back plate and a body with beveled edges and radius corners.
Made from forged solid brass, the hinge is suitable for 8–12 mm tempered glass. Snap-on covers conceal the mounting screws after installation.
Adjustable Closing Position
The door’s closed position can be adjusted after installation. Loosen the Allen set screws, move the door to the required closed position, then retighten the screws. The hinge self-centers within approximately 15° of the selected closing position.
Full Back Plate and Profile
The full back plate defines the wall-mount configuration of ASE201. Its beveled edges and radius corners describe the exterior shape of the hinge. When selecting between similar adjustable wall-mounted models, check both the back plate and the required glass cut-out.
Product Specifications
- Model: ASE201
- Application: Wall-to-Glass
- Mounting Configuration: 90°
- Back Plate: Full Back Plate
- Profile: Beveled Edges with Radius Corners
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 8–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Adjustment: Adjustable Closing Position
- Self-Centering: Within Approximately 15° of the Selected Closing Position
- Springs and Pin: Hardened Stainless Steel
- Screw Covers: Snap-on Covers Concealing the Mounting Screws
- Load Reference: 2 Hinges / 90 lb; 3 Hinges / 130 lb
- Cycle Test: At Least 100,000 Opening and Closing Cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Glass Preparation and Installation
Use the ASE201 technical drawing to confirm the glass cut-out and hole positions before fabrication. Check the door dimensions and weight, wall fixing conditions, and hinge quantity for the installation.
Selecting ASE201
Choose ASE201 for a 90° wall-to-glass installation requiring an adjustable closing position, a full back plate, and a beveled profile with radius corners.
For a square-corner hinge with an offset back plate, see the ASE001 Adjustable 90° Wall-to-Glass Shower Door Hinge.
