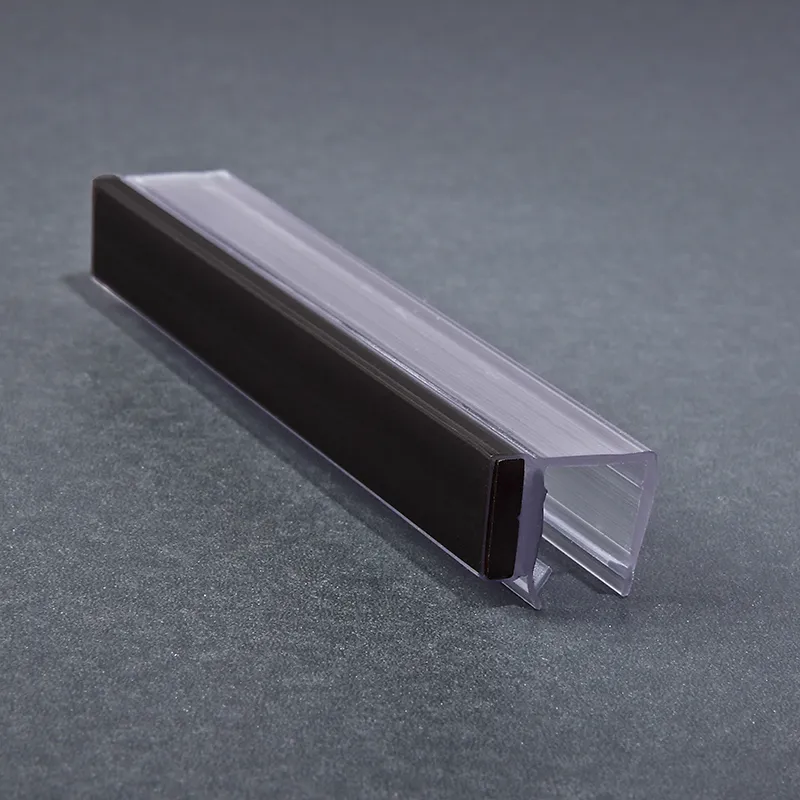

PS33 is a side-mounted magnetic shower seal with the magnet positioned alongside the glass channel. This cross-section is used in the sliding door and aluminum receiver arrangements illustrated on the product page.
Application and profile selection
The application drawing shows the profile closing against a matching magnetic face at a perpendicular glass junction, and against a magnetic receiver on aluminum. Check the receiver position and polarity so the two faces meet correctly.
Features and specifications
- Model: PS33
- Material: co-extruded PVC profile with magnetic strip
- Glass: monolithic tempered glass; select the matching channel size
- Magnetic strip options: white or black
- PVC profile: clear or custom colors to match the enclosure design
Dimensions
| Glass thickness (mm) | a (mm) | b (mm) |
|---|---|---|
| 6 | 10 | 5 |
| 8 | 10 | 5 |
| 10 | 10 | 5 |

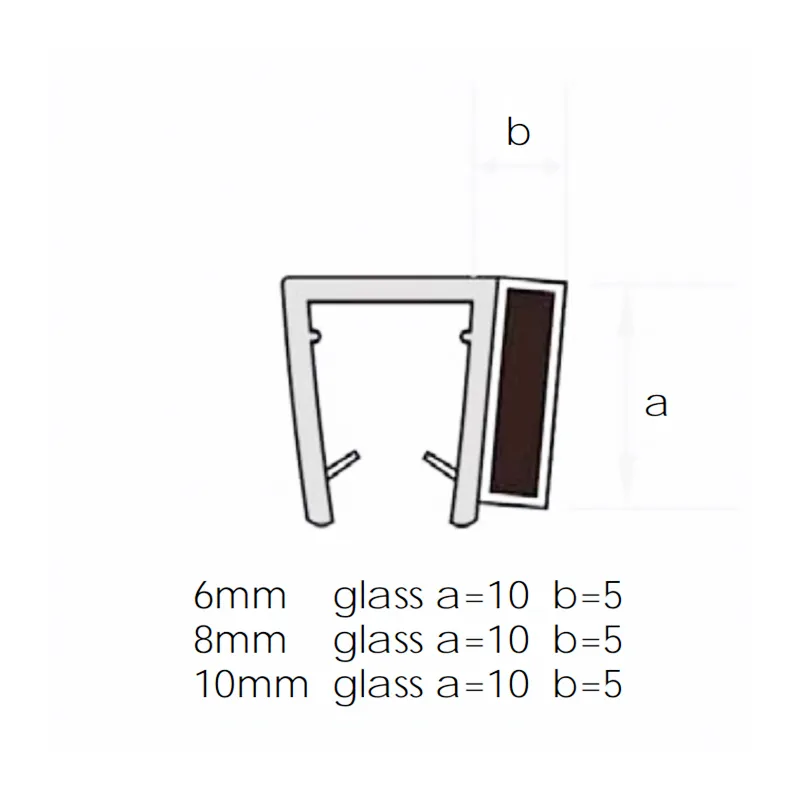

All dimensions are in millimeters. The letters a and b refer to the labels in the product drawing. Use the drawing to check the full profile geometry.
Installation notes
Measure the glass and check the closed joint before fitting. Align the magnetic faces and confirm that they attract before cutting the profiles to the required height. Test the door movement and closure after fitting.
Related profile
PS33 places the magnetic face beside the glass channel. PS16 places paired magnetic faces at the meeting edges of an inline glass joint, so these profiles serve different closing positions. See PS16 for its drawing and sizes.
