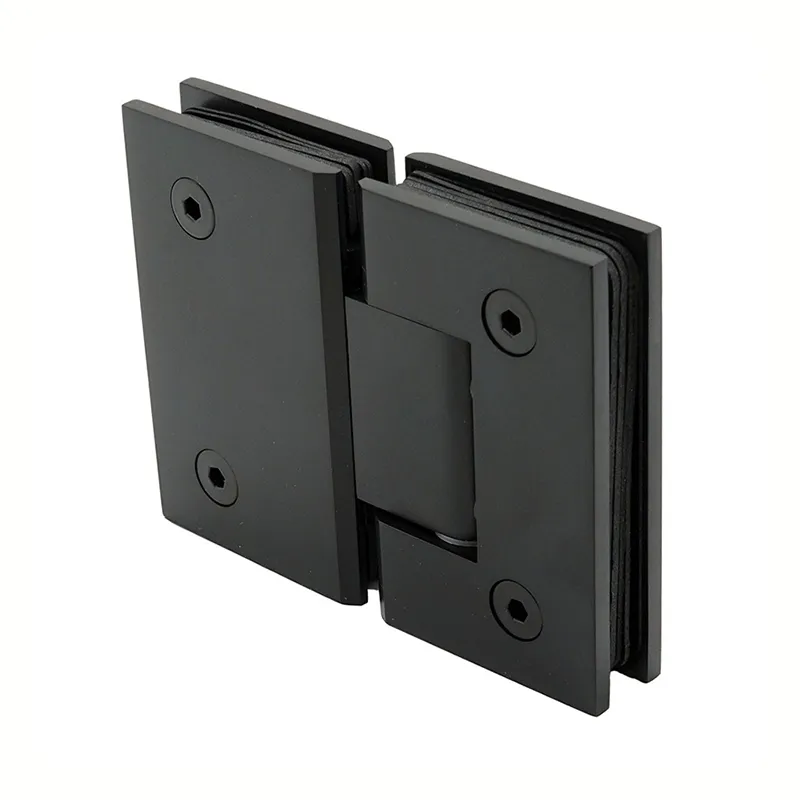

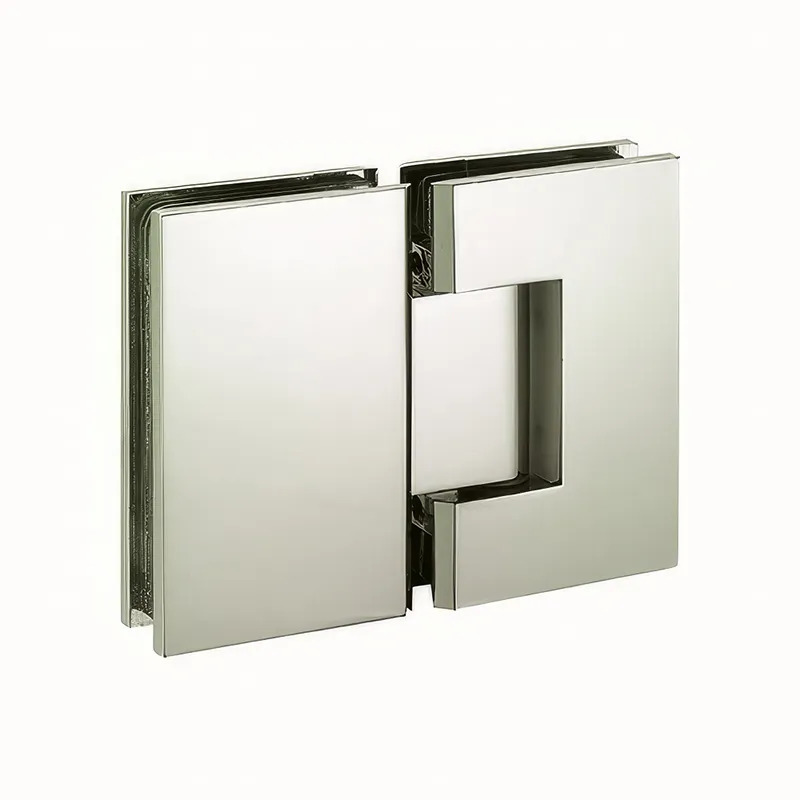

SHS080 180° Glass-to-Glass Shower Door Hinge
The SHS080 is a standard-duty 180° glass-to-glass shower door hinge with a square-corner design. It connects a moving shower door to a fixed glass panel in a straight 180° glass configuration.
The square-corner profile gives the hinge a clean, straight-edged appearance and keeps the design consistent with the SHS090 90° and SHS035 135° square-corner hinge series.
180° Glass-to-Glass Configuration
SHS080 is designed for frameless shower layouts where the moving door and fixed glass panel align in a 180° configuration.
Unlike wall-mounted hinges, the hinge connects glass directly to glass. Glass position, cut-out and hinge quantity should be confirmed together before fabrication.
Self-Centering Action
The hinge self-centers as the door returns to within approximately 15° of the closed position.
A reversible 5° pivot pin is also available where a different resting position is required.
Product Specifications
- Model: SHS080
- Application: Glass-to-Glass
- Mounting Angle: 180°
- Corner Style: Square Corner
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 8–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Self-Centering: Within 15° of closed position
- Optional Pivot Pin: Reversible 5°
- Screw Cover: Optional snap-on cover
- Load Reference: 2 hinges / 99 lb (45 kg); 3 hinges / 132 lb (60 kg)
- Cycle Test: At least 100,000 opening and closing cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Selecting SHS080
SHS080 is suitable when a frameless shower enclosure requires a 180° glass-to-glass hinge with a square-corner design.
For a 90° glass-to-glass configuration with the same square-corner style, see the SHS090 90° Glass-to-Glass Shower Door Hinge.
For a 135° configuration, see the SHS035 135° Glass-to-Glass Shower Door Hinge.
