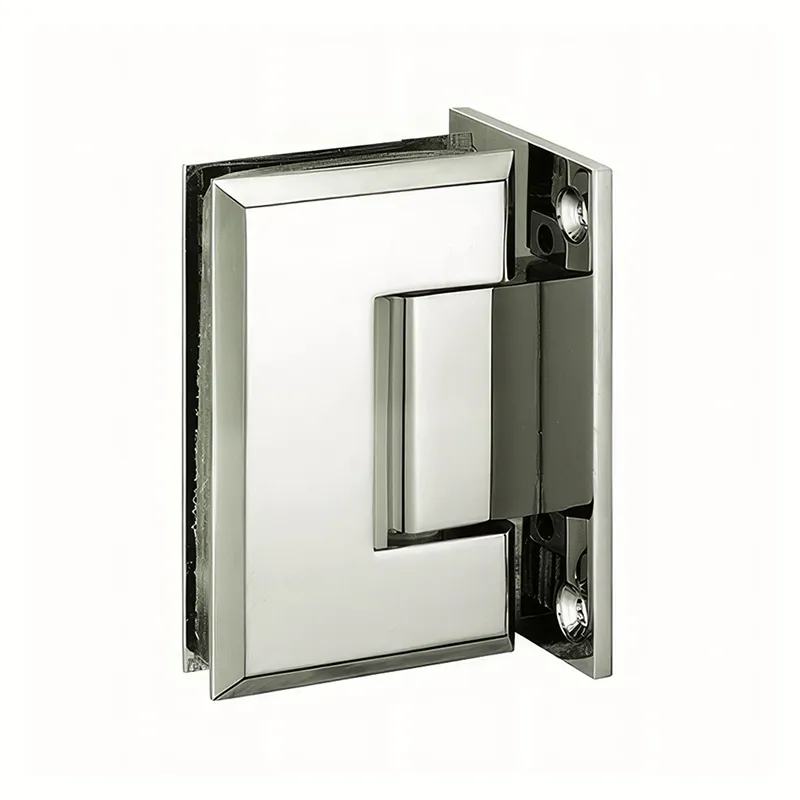

SHS402 90° Full Back Plate Beveled Shower Door Hinge
The SHS402 is a standard-duty 90° wall-to-glass shower door hinge featuring a full back plate and beveled design. It is designed for frameless shower doors using 8–12 mm tempered glass.
The full back plate distinguishes SHS402 from the offset-back SHS401 while retaining the same beveled appearance and standard-duty hinge function.
Full Back Plate Design
SHS402 uses a full back plate for wall mounting, while SHS401 uses an offset back plate.
The primary difference between the two models is the back plate configuration rather than the hinge operation.
For the same beveled design with an offset back plate, see the SHS401 90° Offset Back Plate Beveled Shower Door Hinge.
Self-Centering Action
The hinge self-centers as the door returns to within approximately 15° of the closed position.
A reversible 5° pivot pin is also available where a different resting position is required.
Product Specifications
- Model: SHS402
- Application: Wall-to-Glass
- Mounting Angle: 90°
- Back Plate: Full Back Plate
- Profile: Beveled
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 8–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Self-Centering: Within 15° of closed position
- Optional Pivot Pin: Reversible 5°
- Screw Cover: Optional snap-on cover
- Load Reference: 2 hinges / 99 lb (45 kg); 3 hinges / 132 lb (60 kg)
- Cycle Test: At least 100,000 opening and closing cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Selecting SHS402
SHS402 is suitable when a frameless shower enclosure requires a 90° wall-to-glass beveled hinge with a full back plate.
For the same beveled design with an offset back plate, see the SHS401 90° Offset Back Plate Beveled Shower Door Hinge.
