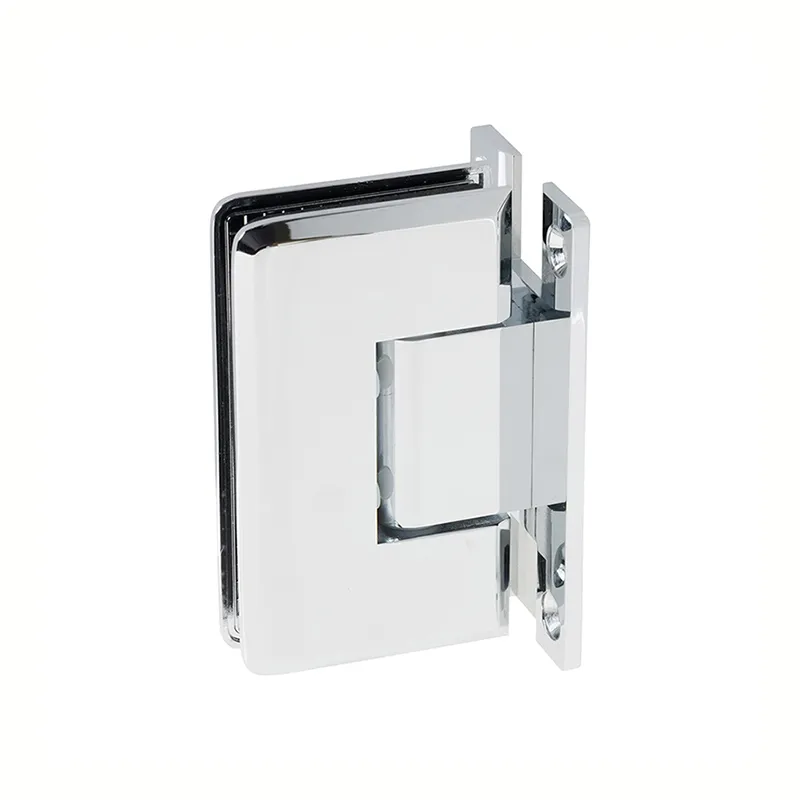

HEAVY DUTY SHOWER DOOR HINGE 90 DEGREE WALL MOUNT RADIUS CORNER H BACK PLATE

ITEM:SHH001
90° H back Wall Mount Hinge

Add to Quote

Product Information

  • Solid Brass Swaged Construction
  • Glass Thickness:3/8” (10mm) to 1/2” (12mm) Tempered Glass
  • Stainless Steel Hardened Coil Springs and Pin
  • 90 Degree Wall Mount H Back Shower Door Hinges
  • Self-centering within 15 degrees from closing position
  • Reversible Pivot Pin with 0° and 5° Positive Stops Optional
  • Snap-on covers Conceal Screws Available
  • Available in Several Popular Finishes
  • 2 Hinges/110 lb(50kg),3 Hinges/140 lb(64kg)
  • Open/Close tested to at least 100,000 cycles

Commonly used in Residential Bath and Commercial Hotel Applications
Industry standard fits typical glass cutout templates both mouse ears and square corner
Accessories – gaskets, stainless steel mounting screws, allen wrench

Each shower hinge contains a reversible pivot pin with one side marked at 90 degrees and the opposite side at 85 degrees. Standard hinges come with the 90-degree side activated, while pre-set models have the pin pre-set at 85 degrees for a tighter closure toward the shower interior. The pin can be rotated to activate the other side. Custom Hinge pivot pins are available.


Frequently Asked Questions

Q: Quality Standards and After-Sales Service?
A: Our shower hardware adheres to European and American export standards, with a maximum warranty of 10 years.

Q: Compatibility of Shower Hinges with Glass?
A: MAXGO hinges are compatible with the vast majority of shower enclosures, suitable for 6-12mm glass.

Q: Customization and Design Capabilities?
A: We offer OEM and ODM services, supported by a professional team specializing in shower room design.

Q: Pricing and Service Capabilities?
A: We serve over 100 shower room manufacturers and shower hardware distributors, ensuring competitive pricing.

Q:How do we import goods?
A:We have abundant experience in exporting, and we can offer DDP services to most countries.
