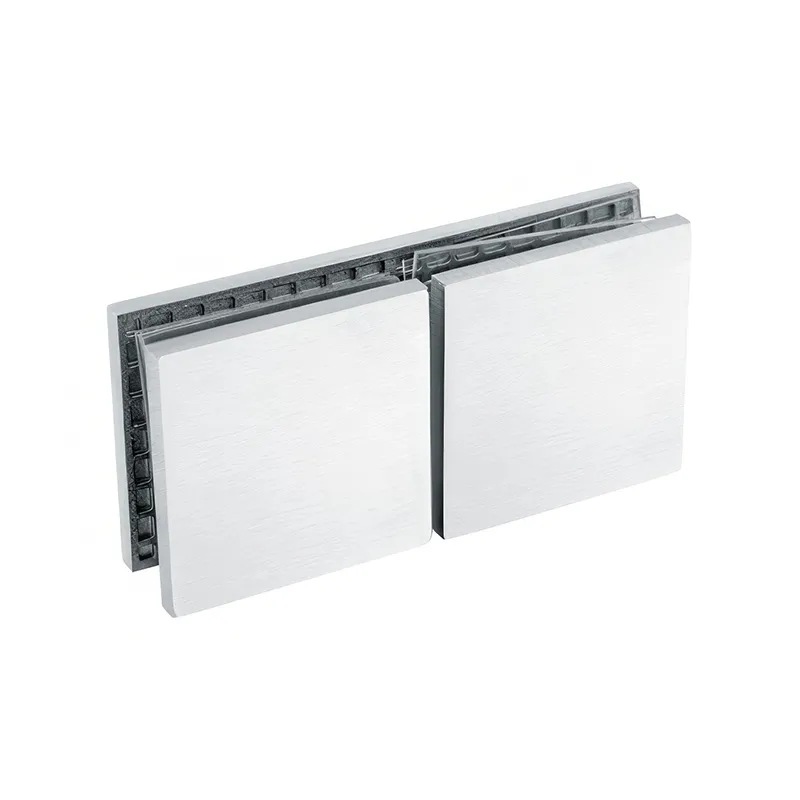

Square Clamp for Inline Fixed Glass Panels
SSG080 connects two fixed shower glass panels in the same plane. This 180 degree square stainless steel glass clamp is intended for an inline joint, with straight-edged faces on both sides of the connection. Choose SSG090 or SSG035 when the panels meet at a corner; choose SSG280 for an inline connection with beveled faces.
Features and Specifications
| Model | SSG080 |
|---|---|
| Material | Cast stainless steel; 304 and 316 options available |
| Mounting type | Glass-to-glass |
| Connection angle | 180° inline |
| Profile | Square |
| Glass type | Monolithic tempered glass |
| Glass thickness | 6–12 mm |
| Application | Fixed shower glass panels |
| Glass preparation | Round holes required; confirm hole diameter and position against the model-specific fabrication drawing |
| Finishes | Brushed Stainless Steel, Polished Stainless Steel, Matte Black |
Glass Preparation and Installation
Prepare the round holes before tempering the glass. Confirm the hole diameter and position for the model being ordered, and use the appropriate gaskets for the selected glass thickness.
Align the fixed panels to the specified connection angle before securing the clamp. These fittings secure fixed glass panels; select hinges separately for the moving door.
Material and Finish Options
Specify 304 or 316 stainless steel when ordering. Choose Brushed Stainless Steel, Polished Stainless Steel or Matte Black to coordinate with the other shower fittings. Confirm the material grade and finish together for the project.
