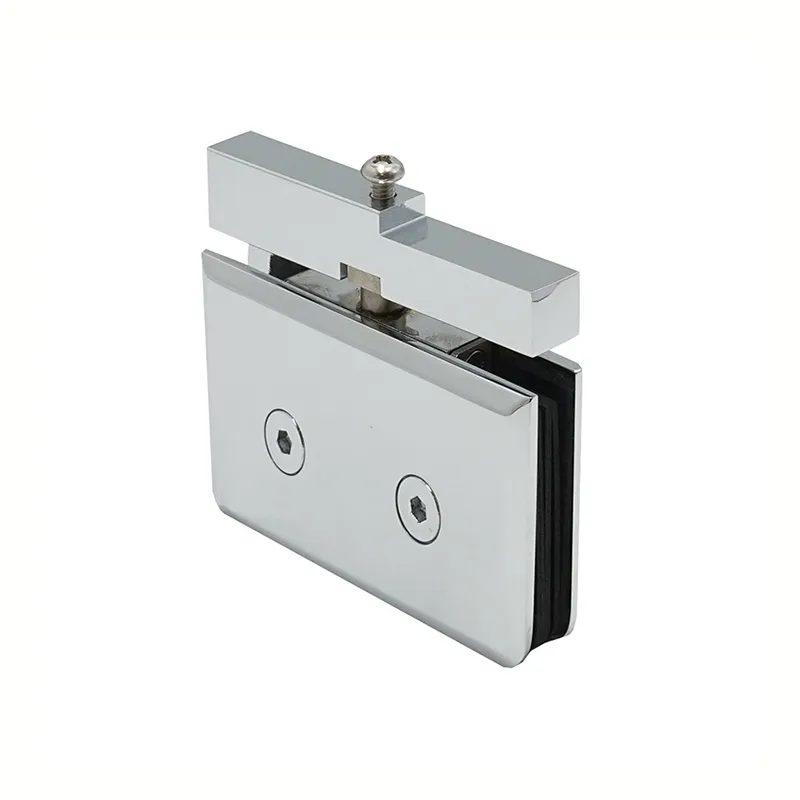

Top Pivot Bevel Glass Hinge Left Or Right For 3/8″ Glass

ITEM:SHP004
Top Pivot Hinges

Add to Quote
  • Material:Solid Brass
  • Glass Thickness: 3/8” (10mm)
  • Stainless Steel Hardened Coil Springs and Pin
  • Self-centering within 15 degrees from closing position
  • Available in Several Popular Finishes
  • Use Tempered Glass

Commonly used in Residential Bath and Commercial Hotel Applications
Industry standard fits typical glass cutout templates both mouse ears and square corner
Accessories – gaskets, stainless steel mounting screws, allen wrench

Standard Reversible Pivot Pin: Each Shower Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Shower Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, Please confirm the use environment with our sales staff in advance.
