The MAXGO LSH016 is a glass-to-glass lifting shower hinge for frameless enclosures. The LSH016 connects the moving door to an inline fixed panel with two rounded clamp plates. Its compact body has visible fixing screws and no cover plates; LSH012 provides the covered alternative.
The self-raising mechanism lifts the door by 5 mm during opening and works with the door’s own weight to provide the closing action.
Specifications
- Model: LSH016
- Mounting: 180° glass-to-glass
- Design: compact, exposed screws
- Material: solid brass
- Glass thickness: 6–10 mm tempered glass
- Lift height: 5 mm
- Maximum door weight using two hinges: 45 kg
- Handing: left-hand and right-hand versions
Glass Preparation and Ordering

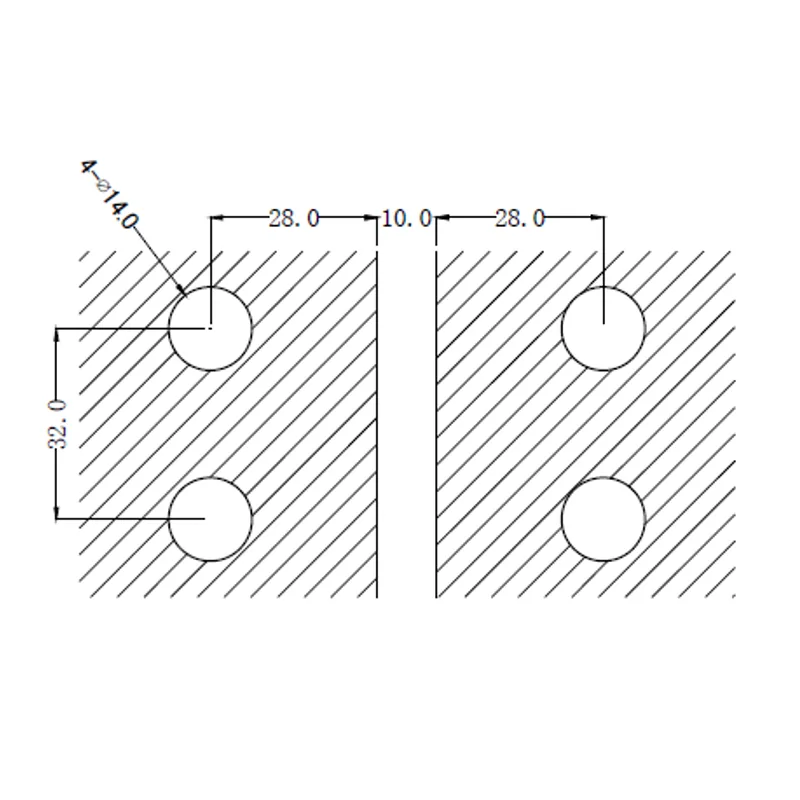

The dimension drawing shows a 122 × 60 mm body with R6 corners. The drilling drawing shows four Ø14 mm holes across two panels, 32 mm vertical centres, 28 mm edge offsets and a 10 mm glass gap.
The 180° designation describes the inline door-to-fixed-panel arrangement, rather than the door’s opening travel. Specify the model, glass thickness, handing and finish when ordering. Provide door dimensions for project selection.
Finishes and Supplied Accessories
Available finishes include Polished Chrome, Brushed Nickel, Matte Black and Satin Brass. Supplied accessories include gaskets, stainless steel mounting screws and an Allen key. Suitable applications include residential shower enclosures and hotel bathrooms.
