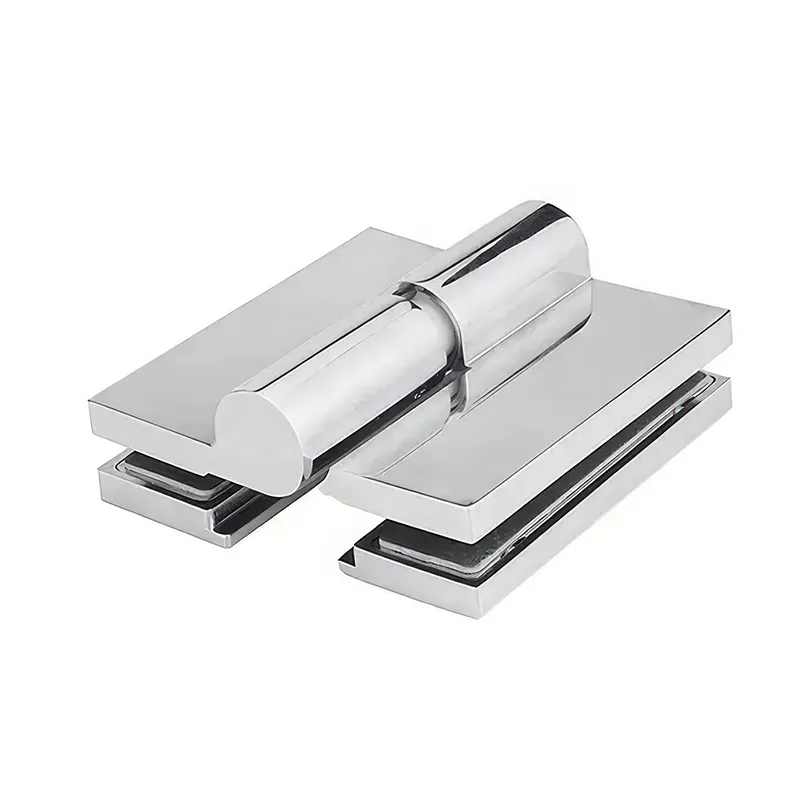

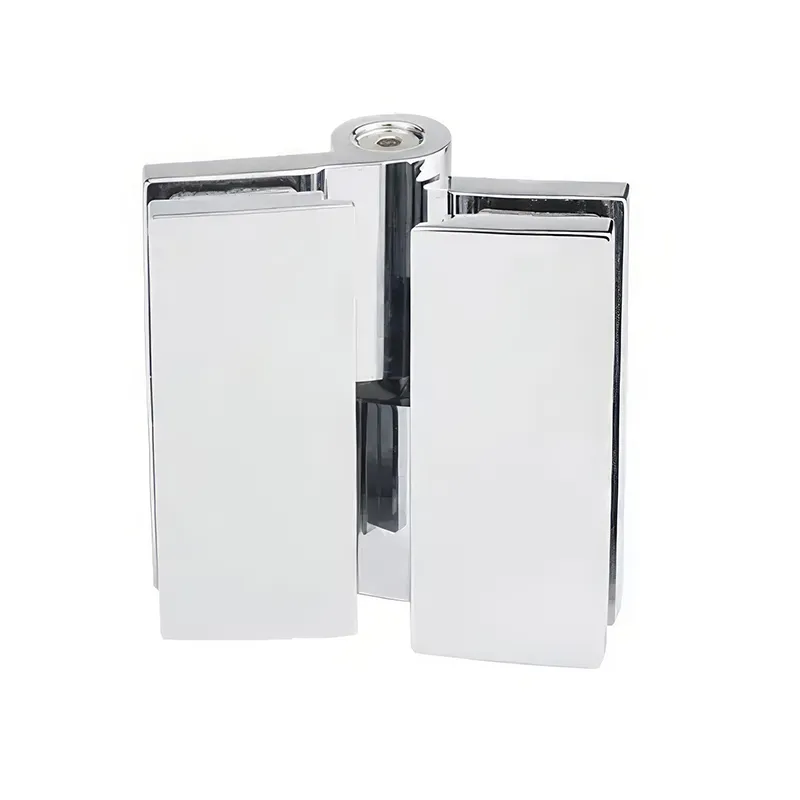

The MAXGO LSH002 is a 180° glass-to-glass lifting hinge with snap-on cover plates. It connects a shower door to a fixed glass panel in an inline enclosure. The rising mechanism provides a 5 mm lift as the door opens, and the mechanism works with the door’s weight to produce the closing action.
Features & Specifications
- Model: LSH002
- Installation: 180° glass-to-glass mounting
- Material: Solid brass
- Glass thickness: 6–10 mm tempered glass
- Lift height: 5 mm
- Handing: Left- and right-hand versions; confirm the required version when ordering
- Function: Self-raising with a weight-assisted closing action
- Screw covers: Snap-on masking caps conceal the fixing screws
Glass Preparation & Installation
The 180° specification describes the inline relationship between the fixed panel and door. Select the appropriate left- or right-hand version for the planned opening direction; product photos alone should not be used to determine handing.
Confirm the LSH002 cutout drawing before fabricating the glass. Secure the fixed panel, use the supplied gaskets between the hinge and glass, and check door alignment, bottom clearance and the raising and closing action before fitting the covers. Confirm allowable door size, weight and hinge quantity for the project.
Finishes & Supplied Accessories
Available finishes are Polished Chrome, Brushed Nickel, Matte Black and Satin Brass. Supplied accessories include gaskets, stainless steel mounting screws and an Allen key. Suitable applications include residential shower enclosures and hotel bathrooms.
LSH002 or a Wall-Mount Lifting Hinge?
Choose LSH002 when the door is hinged from an inline fixed glass panel. For a door mounted directly to a wall, see the LSH001L left-hand 90° wall-mount self-raising hinge. Compare mounting arrangement, body shape and glass cutouts when selecting other models from our self-raising shower door hinge range.
