90° Glass-to-Glass Heavy Duty Shower Hinge
The MAXGO SHH290 connects a frameless glass door to a fixed glass panel in a 90° enclosure layout. The square design distinguishes this model within the SHH heavy duty shower door hinge series.
The 100 mm hinge body accommodates 10–12 mm tempered glass. Its solid brass construction and 15° self-centering action suit frameless shower enclosure specifications for glass fabricators, enclosure manufacturers and hardware distributors.
Technical Specifications
| Model | SHH290 |
|---|---|
| Mounting | 90° glass-to-glass |
| Profile | Square corner profile |

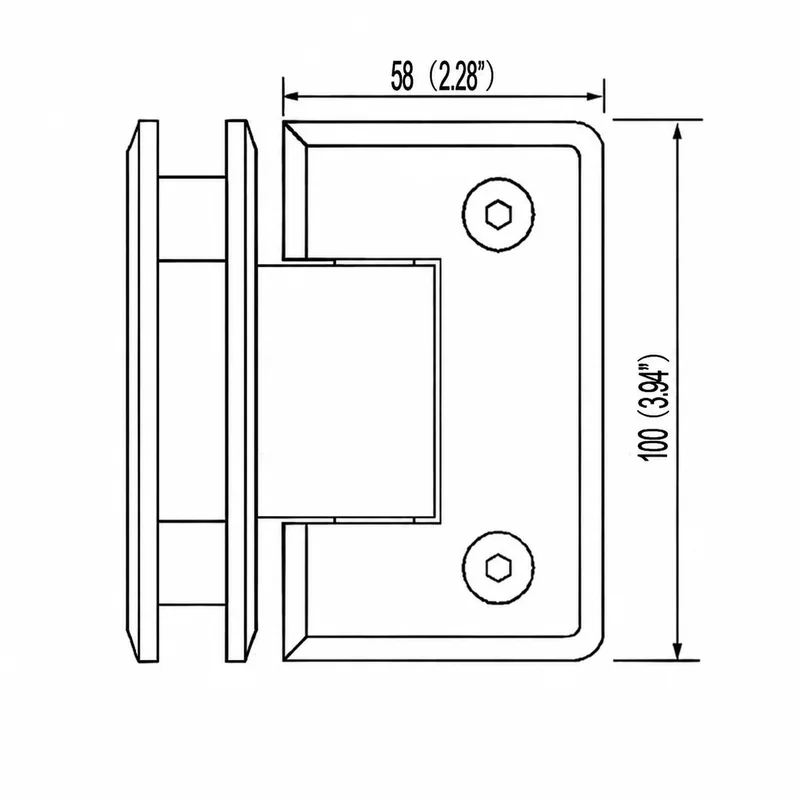

| Body dimensions | 100 mm high × 58 mm plate width (approximately 3.94″ × 2.28″) |
| Glass thickness | 10–12 mm (3/8–1/2″) tempered glass |
| Construction | Solid brass body; stainless steel spring and pin |
| Operation | Non-adjustable hinge; self-centering within 15° of the closed position |
| Two-hinge capacity | Maximum door weight 50 kg (110 lb); maximum door width 914 mm (36″) |
| Three-hinge capacity | Maximum door weight 64 kg (140 lb); maximum door width 914 mm (36″) |

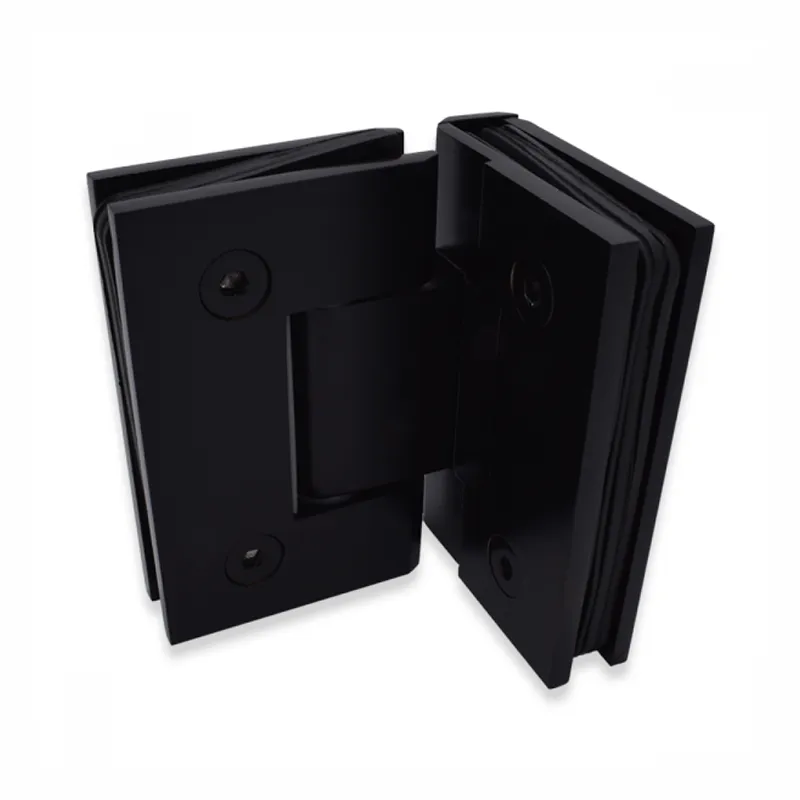

| Finishes | Polished chrome, brushed nickel, matte black and satin brass |
| Included accessories | Gaskets, stainless steel mounting screws and Allen key |
Model Selection
Door weight and door width limits both apply. Adding a third hinge increases the weight capacity to 64 kg; the maximum width remains 914 mm. The mounting angle identifies the enclosure layout, not the self-centering range. Use the model drawing to confirm the glass preparation before fabrication.
Compare SHH090 for an alternative hinge profile, or view the complete SHH heavy duty shower door hinge range. Specify the model, glass thickness, door dimensions, hinge quantity and finish when requesting a quotation.
