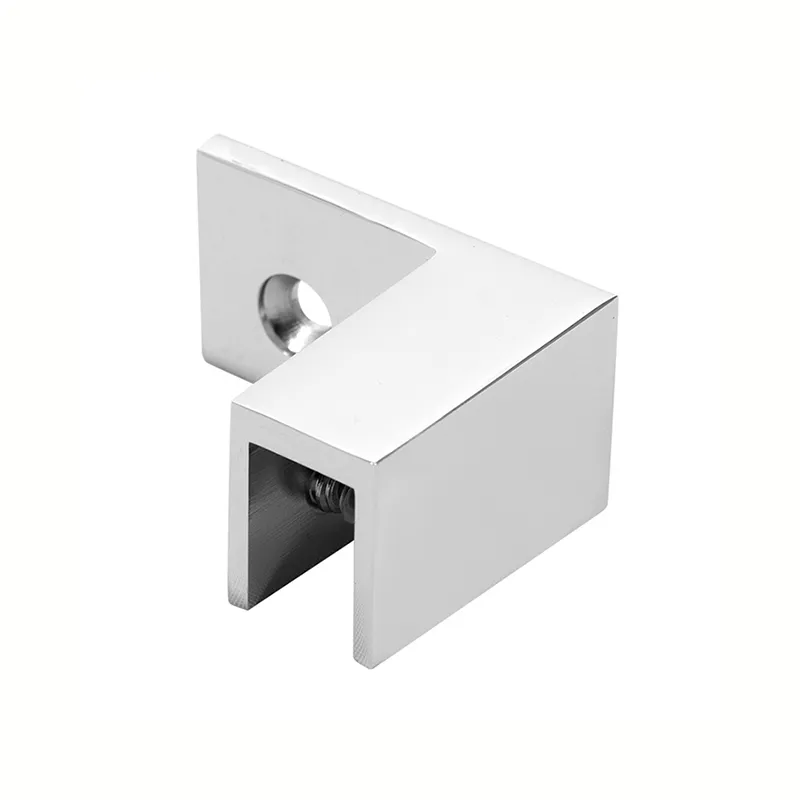

MAXGO GF0L is a left hand sleeve over glass clamp for connecting a fixed shower glass panel to a wall. The open channel fits over the glass edge, and the clamping screw secures the panel without a glass notch.
Features & Specifications
Model: GF0L
Material: Solid brass
Glass thickness: 5/16″–1/2″ (8–12 mm)
Glass type: Monolithic tempered glass
Glass fabrication: No notch required
Fixing method: Glass edge held by clamping screws
Configuration & Dimensions
Left hand wall mount configuration. GF0R is the corresponding right hand model; check the fixing direction against the enclosure layout before ordering.

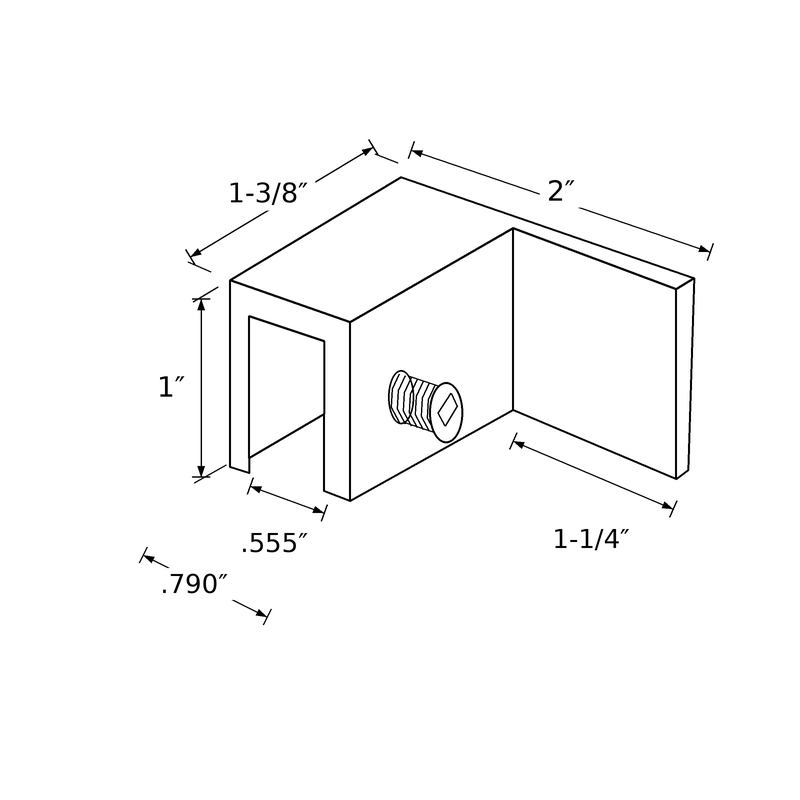

Refer to the dimension drawing in the gallery for the channel and body dimensions.
Installation
Check the glass thickness, panel alignment and supporting fixing arrangement before installation.
Fit the glass fully into the channel with the appropriate protective contact pieces. Tighten the clamping screws carefully and evenly to secure the glass; avoid direct metal contact with the glass. Follow the enclosure or shelf installation drawing for the complete support arrangement.
Available Finishes

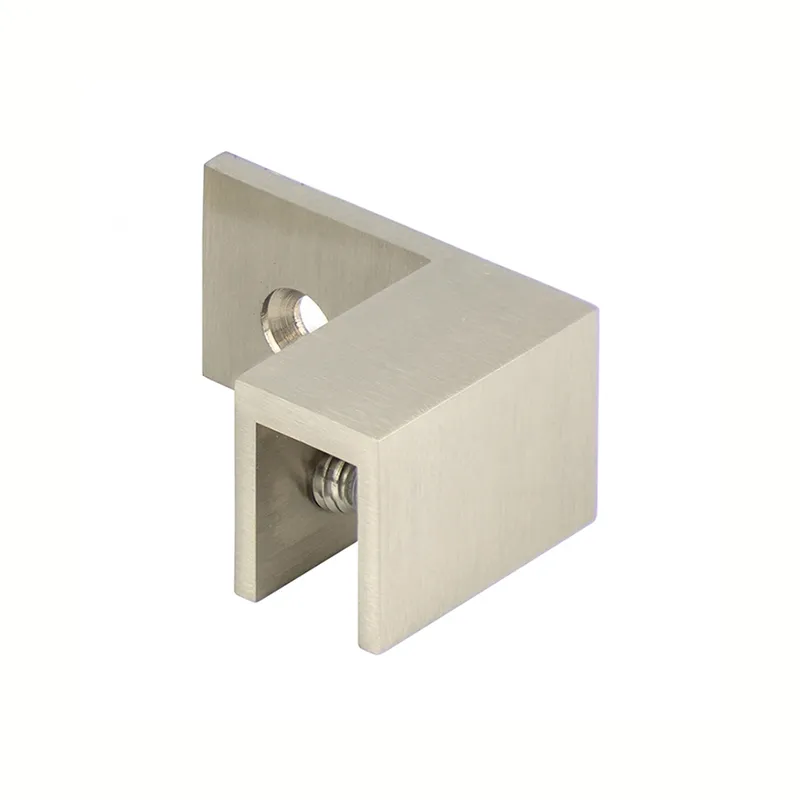

Polished Chrome, Satin Chrome, Matte Black and Satin Brass. Specify the required finish when requesting a quotation.
Ordering
Provide the model, finish, glass thickness and quantity. MAXGO can confirm technical drawings and OEM/ODM requirements for your project.
