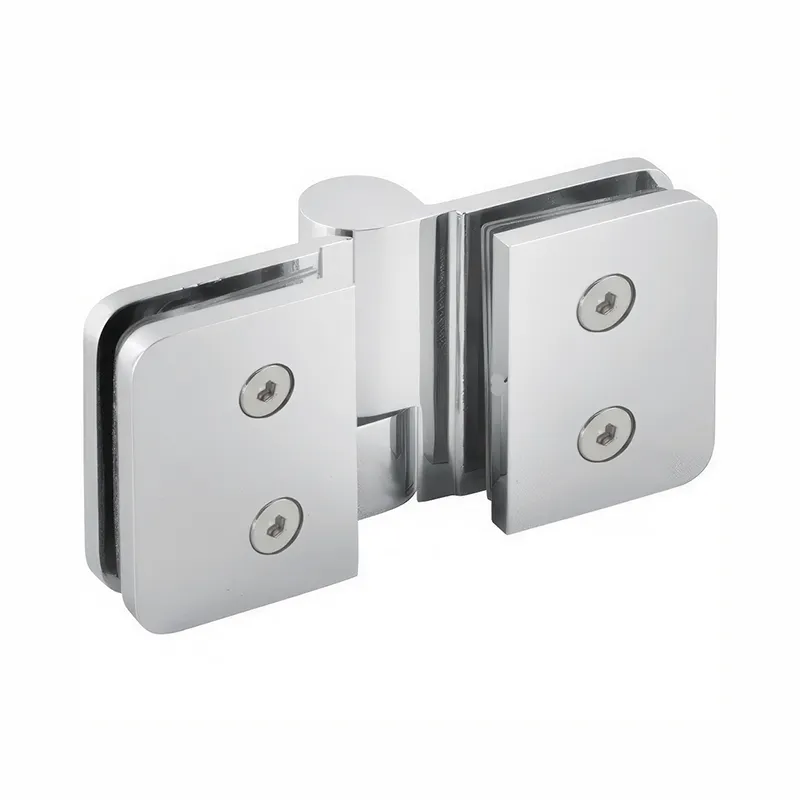

The MAXGO LSH016 is an exposed screw glass-to-glass lifting hinge for inline shower enclosures. Two rounded glass clamp plates connect the door to a fixed glass panel at 180°. Its compact body and cylindrical hinge barrel coordinate with the LSH014 wall-mount model.
This version has no cover plates, leaving the clamp screws visible. The door rises by 5 mm during opening, while the rising mechanism and the door’s weight provide the closing action.
Features & Specifications
- Model: LSH016
- Installation: 180° glass-to-glass mounting
- Design: Compact body with two rounded glass clamp plates
- Material: Solid brass
- Glass thickness: 6–10 mm tempered glass
- Lift height: 5 mm
- Handing: Left- and right-hand versions
- Fixings: Exposed screws; no cover plates
Glass Preparation & Installation
The 180° mounting specification describes the inline relationship between the door and fixed panel. Choose the left- or right-hand version to match the planned opening direction.

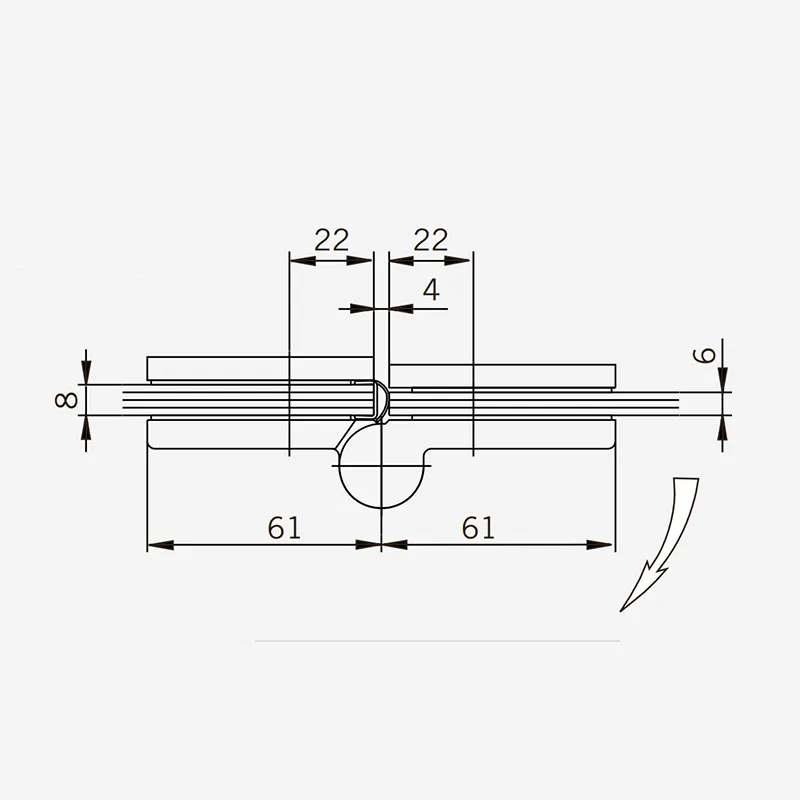

Use the LSH016 cutout drawing for both glass panels and ensure the fixed panel is securely supported. Fit the supplied gaskets, align the door and check bottom clearance and the raising and closing action. Confirm allowable door size, weight and hinge quantity before installation.
Finishes & Supplied Accessories
Available finishes are Polished Chrome, Brushed Nickel, Matte Black and Satin Brass. Supplied accessories include gaskets, stainless steel mounting screws and an Allen key. The hinge is intended for residential shower enclosures and hotel bathrooms.
Matching Model & Covered Alternative
The matching LSH014 90° wall-mount lifting hinge with exposed screws serves doors mounted directly to a wall. LSH016 serves the inline glass-to-glass arrangement.
For a covered version, see the LSH012 glass-to-glass lifting hinge with concealed screws. Both models share the confirmed glass thickness, lift height and left/right options; LSH016 has visible screws without cover plates. Check the selected model’s cutout drawing before glass fabrication.
