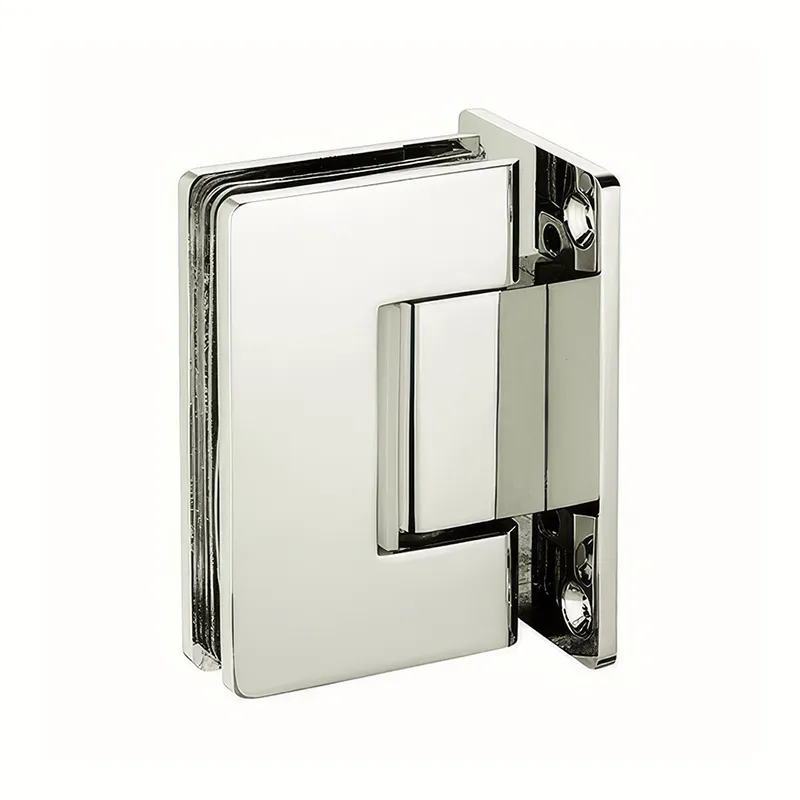

SHS202 90° Full Back Plate Shower Door Hinge
The SHS202 is a standard-duty 90° wall-to-glass shower door hinge featuring a full back plate and round-corner design. It is designed for frameless shower doors using 8–12 mm tempered glass.
The full back plate provides a broad wall mounting surface, while the rounded corner profile gives SHS202 a softer exterior appearance than the square-corner SHS002.
Round Corner Design
SHS202 is intended for projects where a rounded hinge profile is preferred while retaining the same 90° wall-to-glass and full-back mounting configuration.
The difference from SHS002 is primarily the external corner profile rather than the hinge function.
For the same full-back configuration with a square-corner body, see the SHS002 90° Full Back Plate Shower Door Hinge.
Self-Centering Action
The hinge self-centers as the door returns to within approximately 15° of the closed position.
A reversible 5° pivot pin is also available where a different resting position is required.
Product Specifications
- Model: SHS202
- Application: Wall-to-Glass
- Mounting Angle: 90°
- Back Plate: Full Back Plate
- Corner Style: Round Corner
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 8–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Self-Centering: Within 15° of closed position
- Optional Pivot Pin: Reversible 5°
- Screw Cover: Optional snap-on cover
- Load Reference: 2 hinges / 99 lb (45 kg); 3 hinges / 132 lb (60 kg)
- Cycle Test: At least 100,000 opening and closing cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Selecting SHS202
SHS202 is suitable when the shower enclosure requires a 90° wall-to-glass hinge with a full back plate and round-corner design.
Prefer a straight-edged profile? See the SHS002 90° Full Back Plate Shower Door Hinge – Square Corner.
