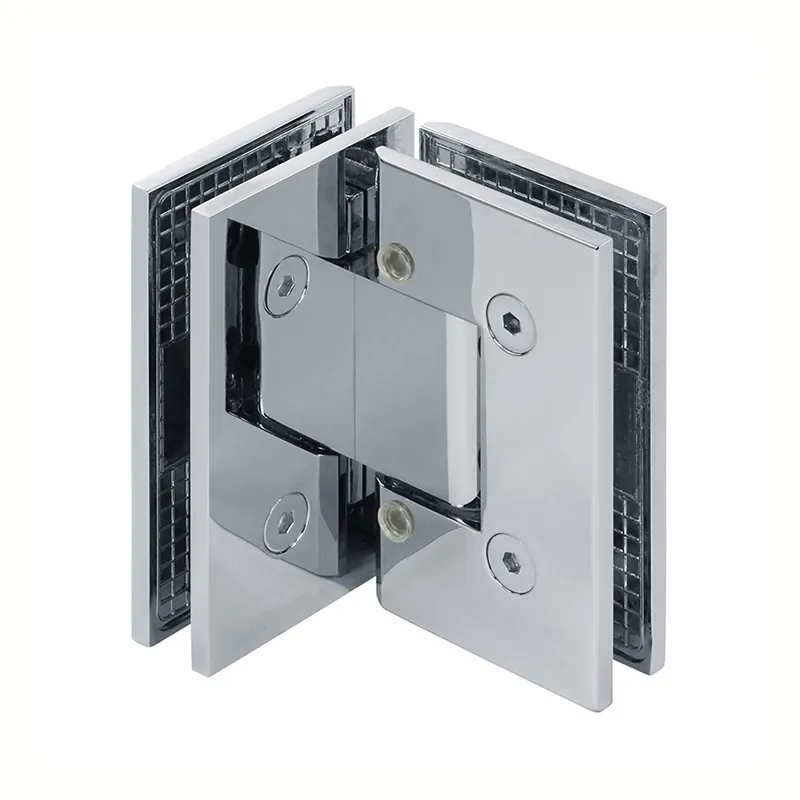

ASE090 Adjustable 90° Glass-to-Glass Shower Door Hinge
The ASE090 connects a moving shower door to a fixed glass panel in a 90° configuration. It combines an adjustable closing position with a square-corner profile.
Snap-on covers conceal the fixing screws after installation. The hinge is made from forged solid brass for 8–12 mm tempered glass.
Adjustable Closing Position
The door’s closed position can be adjusted after installation using the Allen set screws. Once the position is set and the screws are tightened, the hinge self-centers within approximately 15° of that closing position.
The 90° specification refers to the glass-to-glass mounting configuration.
Product Specifications
- Model: ASE090
- Application: Glass-to-Glass
- Mounting Configuration: 90°
- Profile: Square Corner
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 8–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Adjustment: Adjustable Closing Position
- Self-Centering: Within Approximately 15° of the Selected Closing Position
- Springs and Pin: Hardened Stainless Steel

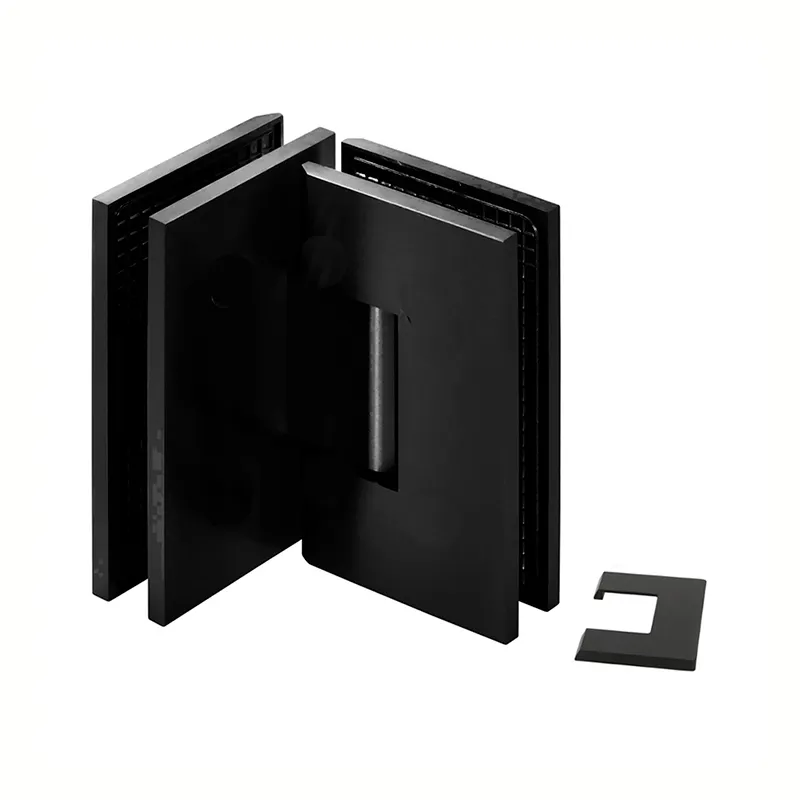

- Screw Covers: Snap-on Covers Concealing the Fixing Screws
- Load Reference: 2 Hinges / 90 lb; 3 Hinges / 130 lb
- Cycle Test: At Least 100,000 Opening and Closing Cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Glass Preparation and Installation
Check the ASE090 drawing for the glass cut-out and hole positions before fabrication. Confirm the door size, weight, fixed-panel support, and hinge quantity for the installation.
Selecting ASE090
Choose ASE090 for a 90° glass-to-glass installation requiring an adjustable closing position, square corners, and concealed fixing screws.
For the same covered design in other configurations, see ASE035 for 135° and ASE080 for 180°. Browse the Adjustable Shower Door Hinges range for further option
