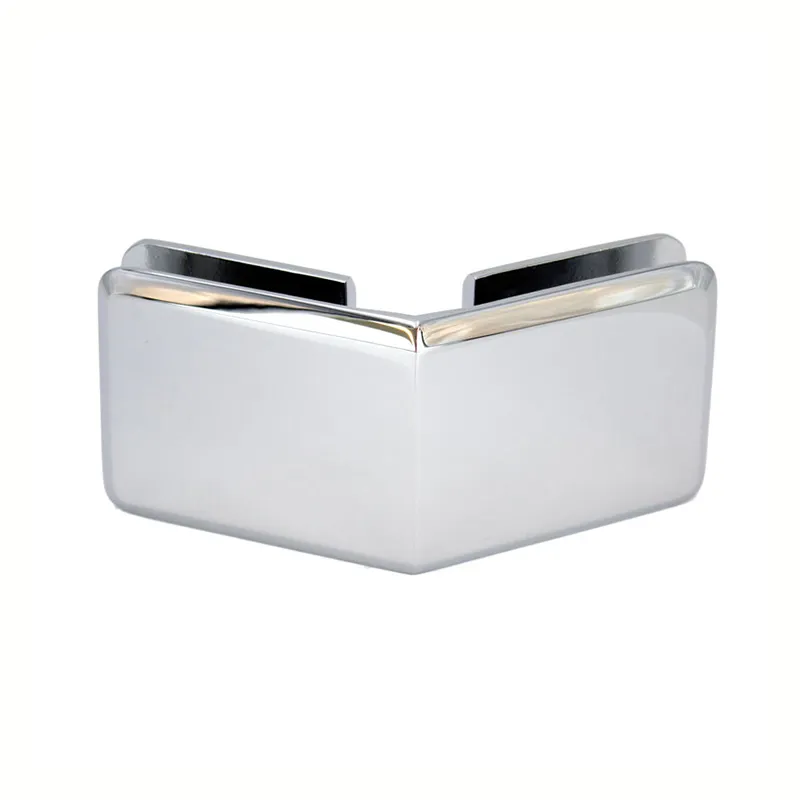

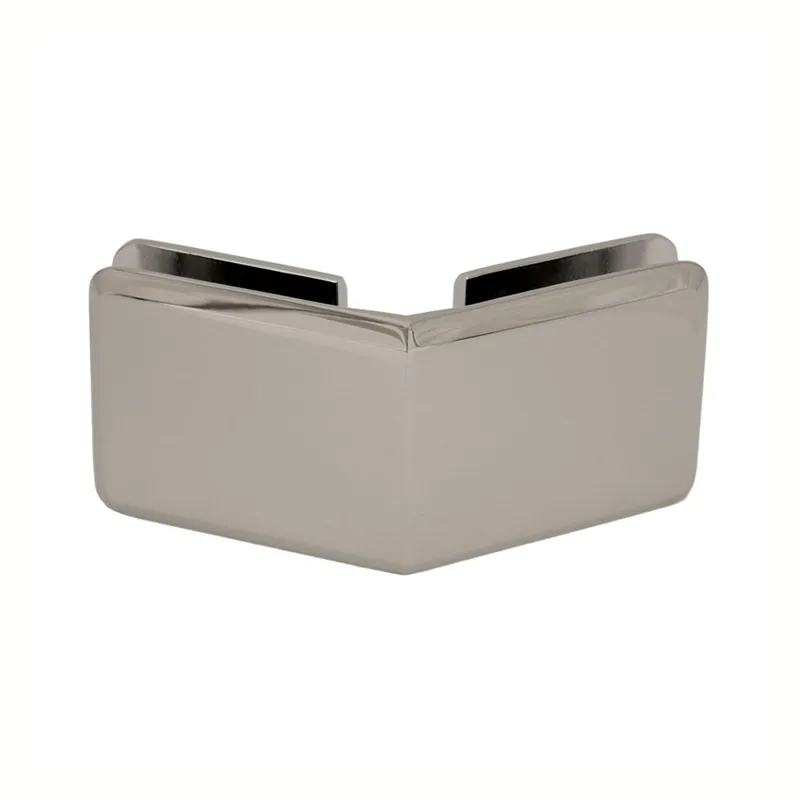

MAXGO GC036 is a solid brass glass clamp for stationary panels in frameless shower enclosures. It connects fixed glass panels at 135°. Its larger 64 × 51 mm faces distinguish it from the open face GC035.
Features and Specifications
- Model: GC036
- Material: solid brass
- Connection: Beveled 135° glass-to-glass connection
- Glass: 6–12 mm monolithic tempered glass
Dimensions and Glass Preparation

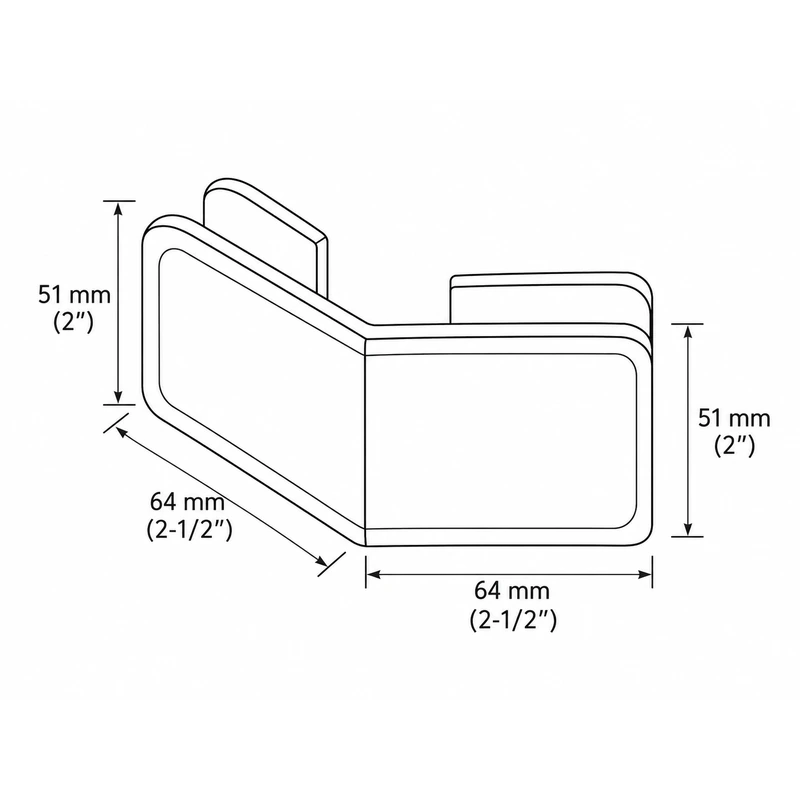

Each face measures 64 × 51 mm. Use the GC036 drawing for the complete mounting and glass preparation dimensions.
Confirm the complete glass preparation profile and fixing positions from the approved model drawing. Complete all holes and notches before tempering.
Installation and Finish Options
Check that the panel junction matches the specified 135° connection. Fit the correct gaskets for the glass thickness, prevent direct metal-to-glass contact and tighten evenly. Clamp quantity and other supports depend on the complete enclosure design.
Selectable finishes: Matte Black, Polished Chrome, Satin Brass, Satin Chrome. Specify the model and finish when ordering.
Compare other connections: GC001, GC003, GC035. Match the mounting geometry and drawing to your panel layout.
