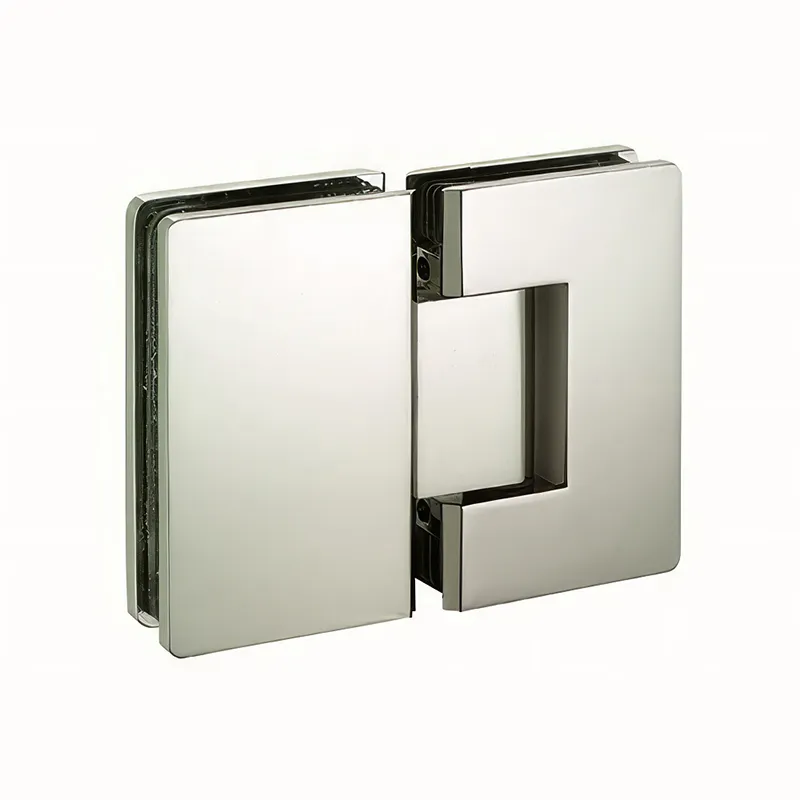

Heavy Duty 180° Shower Door Hinge

Add to Quote

Product Information

  • Solid Brass Swaged Construction
  • Glass Thickness:3/8” (10mm) to 1/2” (12mm) Tempered Glass
  • Stainless Steel Hardened Coil Springs and Pin
  • Heavy Duty 180 Degree Shower Door Hinges
  • Self-centering within 15 degrees from closing position
  • Reversible Pivot Pin with 0° and 5° Positive Stops Optional
  • Snap-on covers Conceal Screws Available
  • Available in Several Popular Finishes
  • 2 Hinges/110 lb(50kg),3 Hinges/140 lb(64kg)
  • Open/Close tested to at least 100,000 cycles

The Shower Hinge Gasket are available in variety materials:PVC/Rubber/Asbestos free asbestos.
Industry standard fits typical glass cutout templates both mouse ears and square corner
Accessories – gaskets, stainless steel mounting screws, allen wrench
Commonly used in Residential Bath and Commercial Hotel Applications

Each shower hinge contains a reversible pivot pin with one side marked at 90 degrees and the opposite side at 85 degrees. Standard hinges come with the 90-degree side activated, while pre-set models have the pin pre-set at 85 degrees for a tighter closure toward the shower interior. The pin can be rotated to activate the other side. Custom Hinge pivot pins are available.

Ensure you select the correct number of hinges without exceeding the maximum weight or width limits. It’s crucial to temperd the glass panels after cutting.

Frequently Asked Questions

Q: Quality Standards and After-Sales Service?
A: Our shower hardware adheres to European and American export standards, with a maximum warranty of 10 years.

Q: Compatibility of Shower Hinges with Glass?
A: MAXGO hinges are compatible with the vast majority of shower enclosures, suitable for 6-12mm glass.

Q: Customization and Design Capabilities?
A: We offer OEM and ODM services, supported by a professional team specializing in shower room design.

Q: Pricing and Service Capabilities?
A: We serve over 100 shower room manufacturers and shower hardware distributors, ensuring competitive pricing.

Q:How do we import goods?
A:We have abundant experience in exporting, and we can offer DDP services to most countries.
