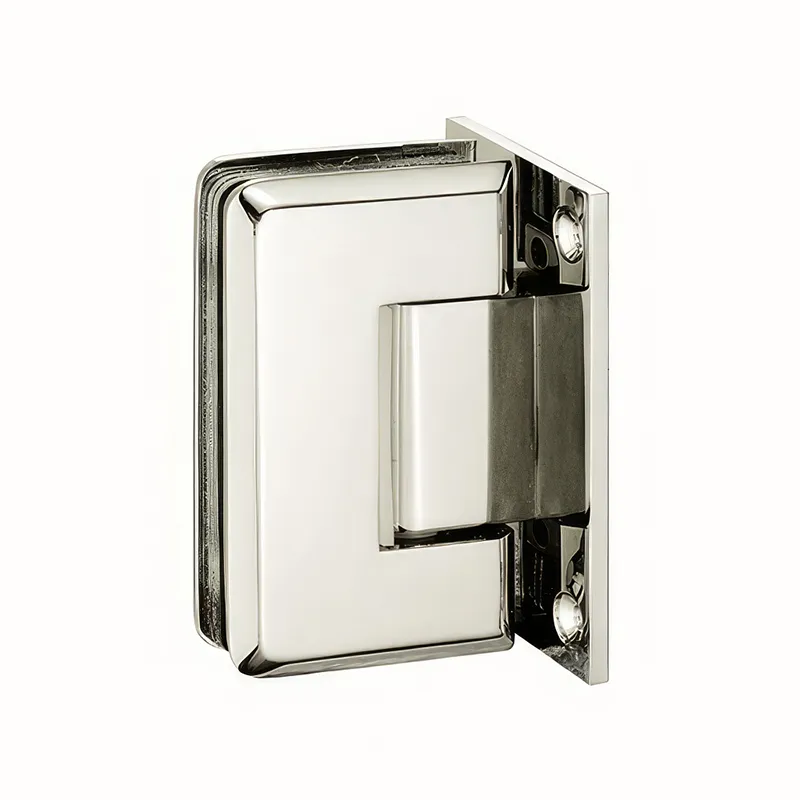

90° Wall-Mount Hinge with Full Back Plate
The MAXGO SHH002 heavy duty full back plate shower hinge connects a frameless glass door directly to the wall. The full mounting plate distinguishes it from the H back plate SHH001, allowing you to select the plate layout required by your installation.
This non-adjustable hinge has a 100 mm body height, compared with the 90 mm height of MAXGO standard-duty hinges. The larger SHH format provides the heavy-duty option for projects requiring greater door support. Select the hinge quantity to suit the complete door specification.

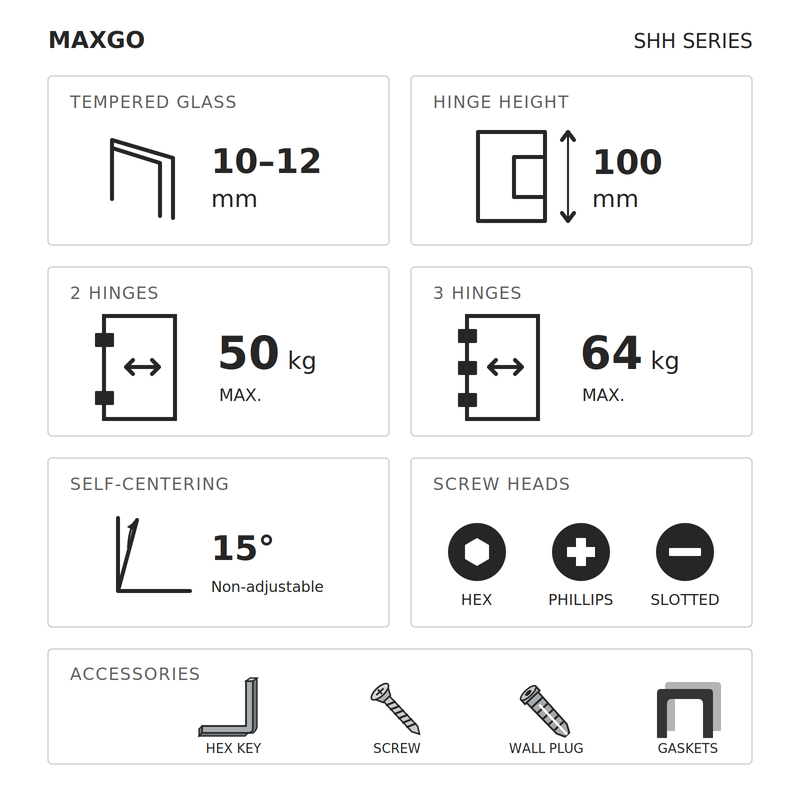

Features & Specifications
- Model: SHH002
- Mounting: 90° wall-to-glass mounting with a full back plate
- Hinge height: 100 mm (3.94 in.)
- Glass thickness: 10–12 mm (3/8–1/2 in.) tempered glass
- Construction: Solid brass body with stainless steel spring and pin
- Profile: Radius corners
- Operation: Non-adjustable; self-centering within 15° of the closed position
- Maximum door weight: 50 kg (110 lb) with two hinges; 64 kg (140 lb) with three hinges
- Finishes: Chrome, brushed nickel, black and satin brass
- Included accessories: Gaskets, stainless steel mounting screws and Allen key
Installation & Selection
The stated mounting angle describes the enclosure layout, not the door opening range. Check the model-specific drawing and glass cutout before fabrication and tempering. Confirm door weight, width, hinge quantity and supporting structure with MAXGO before installation.
For a different layout, see the SHH001 H back plate wall-mount hinge. Explore the SHH heavy-duty shower hinge range to compare mounting configurations.
