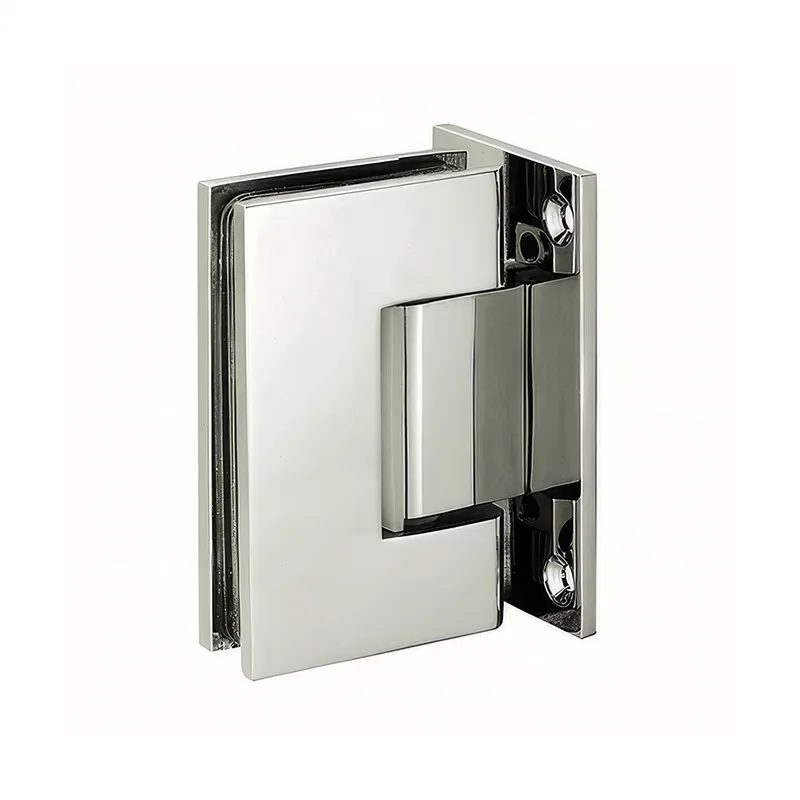

SHS002 90° Full Back Plate Shower Door Hinge
The SHS002 is a standard-duty 90° wall-to-glass shower door hinge featuring a full back plate and square-corner design. It is designed for frameless shower doors using 8–12 mm tempered glass.
The full back plate provides a broader wall mounting surface than the offset-back SHS001, while the square-corner body maintains the same clean, straight-edged appearance within the SHS standard-duty range.
Self-Centering Action
The hinge self-centers as the door returns to within approximately 15° of the closed position.
A reversible 5° pivot pin is also available for applications where a different resting position is required.
Product Specifications
- Model: SHS002
- Application: Wall-to-Glass
- Mounting Angle: 90°
- Back Plate: Full Back Plate
- Corner Style: Square Corner
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 8–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Self-Centering: Within 15° of closed position
- Optional Pivot Pin: Reversible 5°
- Screw Cover: Optional snap-on cover
- Load Reference: 2 hinges / 99 lb (45 kg); 3 hinges / 132 lb (60 kg)
- Cycle Test: At least 100,000 opening and closing cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Selecting SHS002
SHS002 is suitable when the shower enclosure requires a 90° wall-to-glass hinge with a full back plate and square-corner design.
For installations requiring an offset wall mounting plate, see the SHS001 90° Offset Back Plate Shower Door Hinge.
For other plate styles, corner profiles or glass-to-glass configurations, browse our Standard Duty Shower Door Hinges range.
