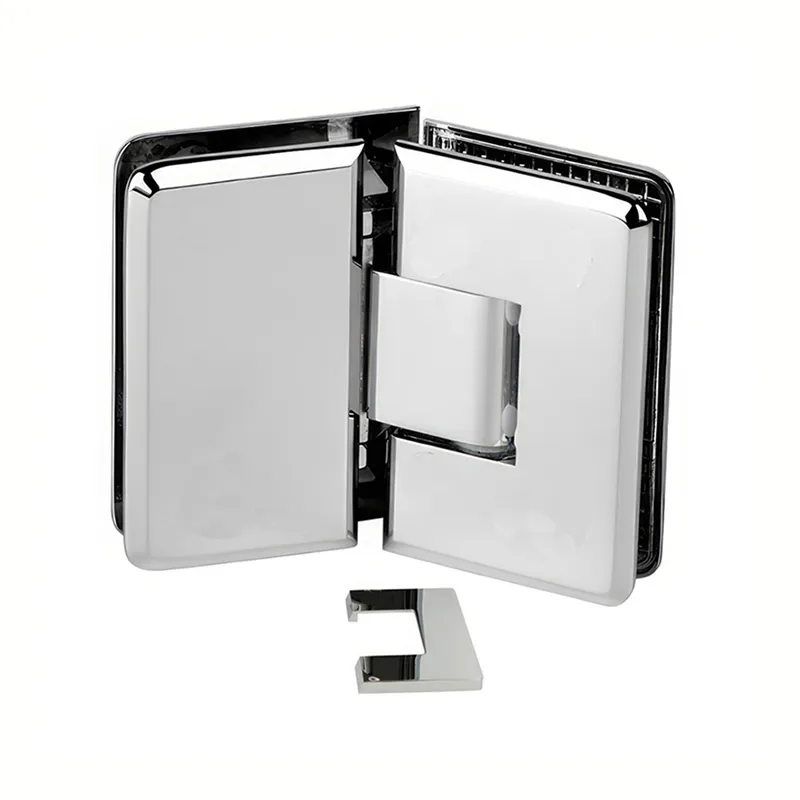

ASE235 Adjustable 135° Glass-to-Glass Shower Door Hinge
The ASE235 connects a moving shower door to a fixed glass panel in a 135° configuration. Its beveled corner profile provides the exterior style, while the adjustable mechanism allows the door’s closed position to be set after installation.
The hinge is made from forged solid brass for 8–12 mm tempered glass. Snap-on covers conceal the fixing screws.
Adjustable Closing Position
Loosen the Allen set screws to position the installed door at the required closed angle, then retighten them. The hinge self-centers within approximately 15° of the selected closing position.
The 135° specification describes the glass-to-glass installation configuration.
Product Specifications
- Model: ASE235
- Application: Glass-to-Glass
- Mounting Configuration: 135°
- Profile: Beveled Corner
- Duty: Standard Duty
- Material: Forged Solid Brass
- Glass Thickness: 8–12 mm Tempered Glass
- Size: 3.54″ W × 2.17″ H
- Adjustment: Adjustable Closing Position
- Self-Centering: Within Approximately 15° of the Selected Closing Position
- Springs and Pin: Hardened Stainless Steel

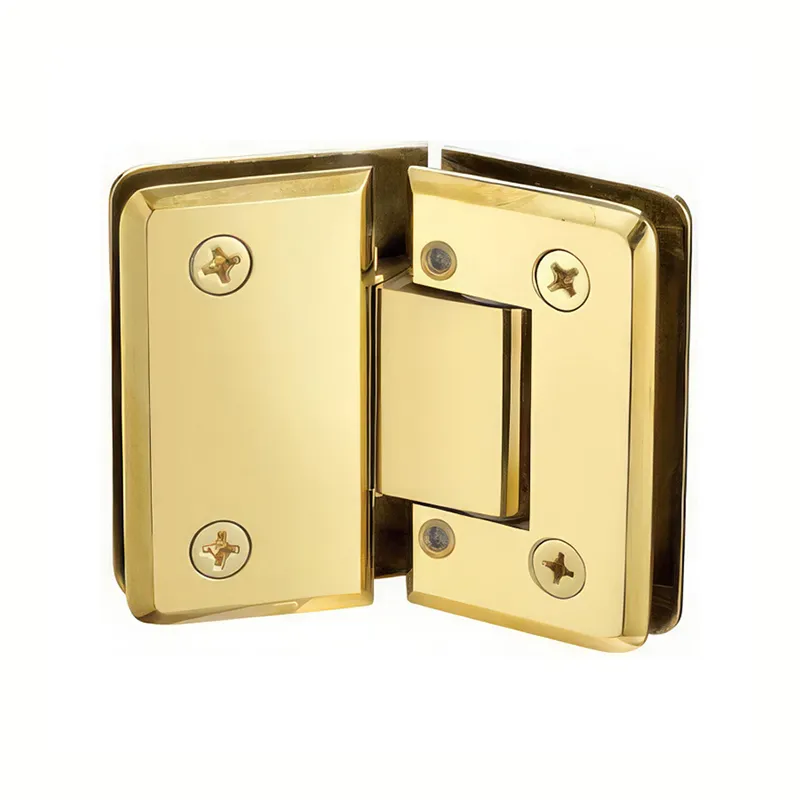

- Screw Covers: Snap-on Covers Concealing the Fixing Screws
- Load Reference: 2 Hinges / 90 lb; 3 Hinges / 130 lb
- Cycle Test: At Least 100,000 Opening and Closing Cycles
- Finishes: Polished Chrome, Brushed Nickel, Matte Black, Satin Brass
Glass Preparation and Installation
Use the ASE235 technical drawing to confirm the glass cut-out and hole positions before fabrication. Check the door dimensions and weight, fixed-panel support, and hinge quantity for the installation.
Selecting ASE235
Choose ASE235 for a 135° glass-to-glass installation requiring an adjustable closing position and a beveled corner profile.
For a square-corner design at the same mounting angle, see the ASE035 Adjustable 135° Glass-to-Glass Shower Door Hinge. Browse the Adjustable Shower Door Hinges range for other profiles and angles.
