ASD001 Adjustable 90° Wall-to-Glass Shower Door Hinge – Rectangular Offset Back Plate
The ASD001 is an adjustable 90° wall-to-glass shower door hinge for frameless shower enclosures. It connects a moving glass door directly to a wall or jamb and uses a rectangular offset back plate.
Made from solid forged brass, this hinge is designed for 8–10 mm tempered glass. Its rectangular profile provides a clean, linear appearance for wall-mounted shower door installations.
Adjustable Spring Tension and Closing Position
The ASD001 allows the spring tension and door closing position to be adjusted after installation.
Once the door is properly supported and hung, loosen the Allen set screws, move the door to the required closed position, then tighten the screws again. The hinge self-centers when the door returns to within approximately 15° of the selected closed position.
This adjustment helps the installer achieve correct door alignment where the wall, jamb or latch position requires fine-tuning.
90° Wall-to-Glass Application
ASD001 is designed for frameless shower doors that open from a wall-mounted 90° position.

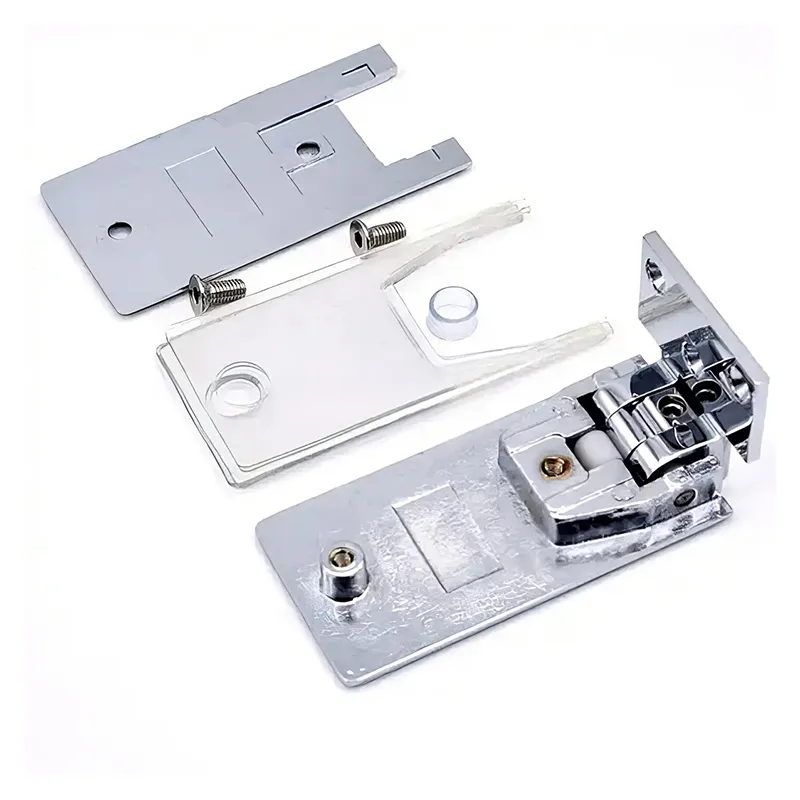

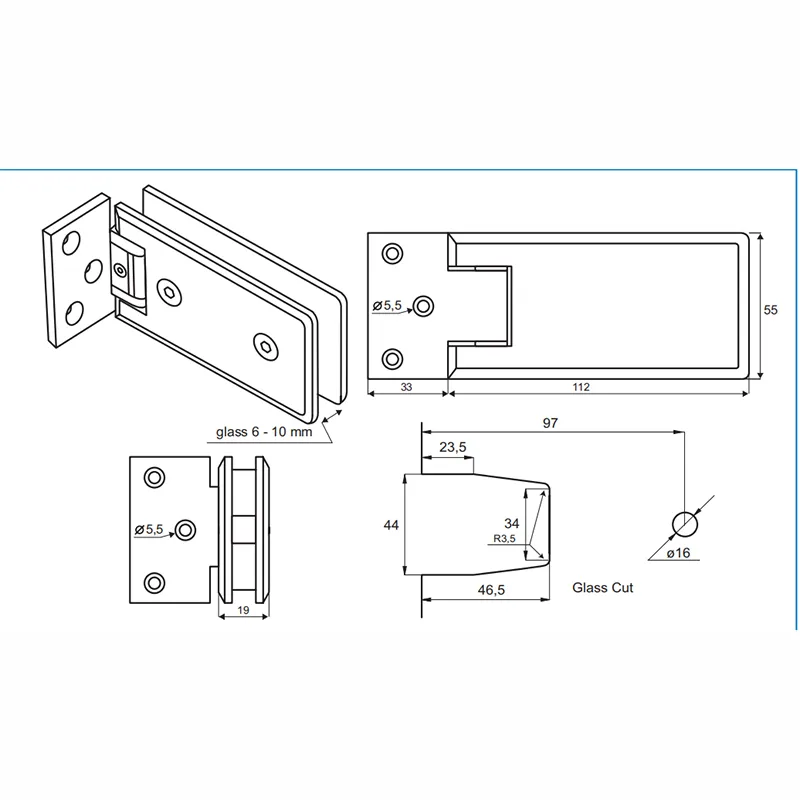

Before installation, confirm that the wall or jamb provides suitable fixing support. Confirm the door weight, hinge quantity, glass cut-out and required clearances before glass fabrication. Use suitable tempered safety glass and follow the applicable technical drawing.
Product Specifications
- Model: ASD001
- Application: Wall-to-Glass
- Mounting Angle: 90°
- Plate Type: Offset Back Plate
- Profile: Rectangular
- Material: Solid Forged Brass
- Glass Thickness: 8–10 mm Tempered Glass
- Adjustment: Spring Tension and Closing Position Adjustable After Installation
- Self-Centering: Within 15° of the Selected Closed Position
- Internal Components: Stainless Steel Hardened Coil Springs and Pin
- Load Reference: 2 Hinges / 95 lb (41 kg); 3 Hinges / 135 lb (61 kg)

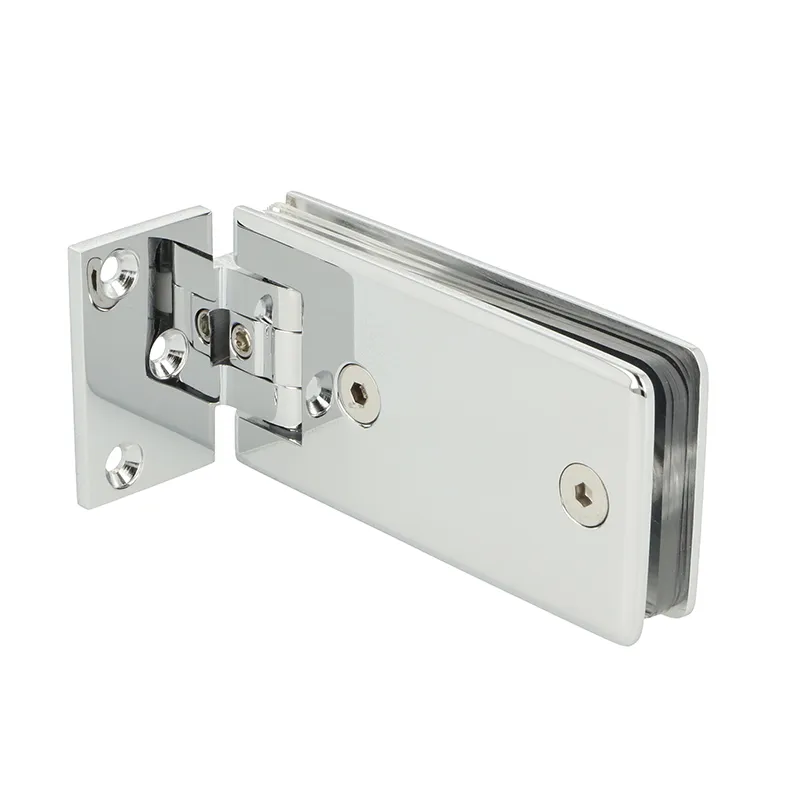

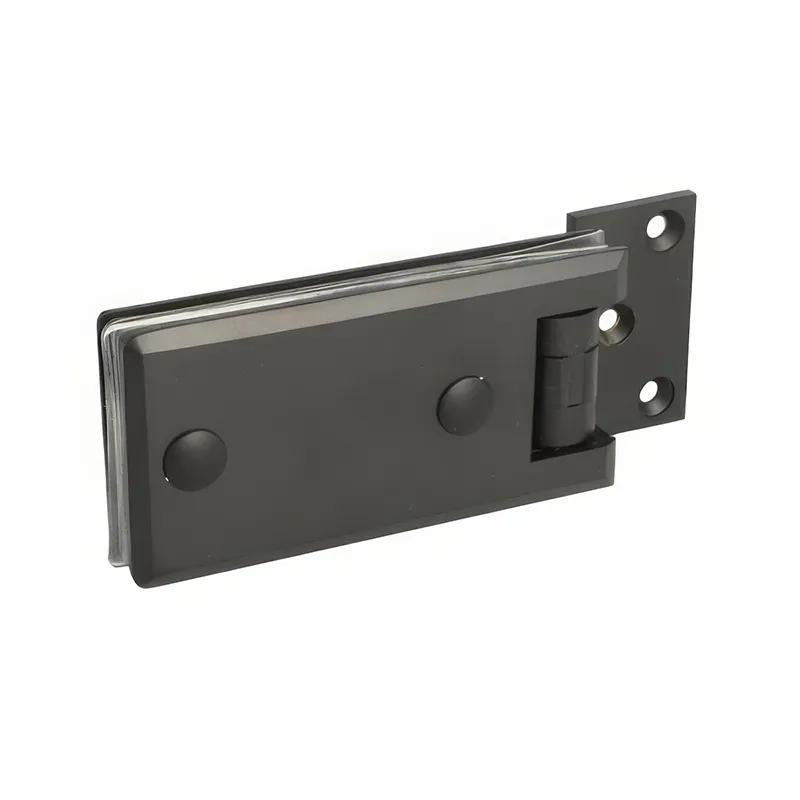

- Finishes: Polished Chrome, Brushed Nickel and Matte Black
- Accessories: Gaskets, Stainless Steel Mounting Screws and Allen Wrench
Installation Notes
Support the glass door securely before making any adjustment. Do not remove the set screws during installation.
After setting the required closing position, tighten the screws securely and test the complete opening and closing movement before handing over the installation.
Selecting ASD001
Choose ASD001 when a frameless shower enclosure requires an adjustable 90° wall-to-glass hinge with a rectangular offset back plate.
For a full back plate version in the same rectangular adjustable series, see ASD002 Adjustable Rectangular 90° Wall-to-Glass Shower Door Hinge.
Browse our Adjustable Shower Door Hinges range for other adjustable mounting options.
For general guidance on hinge adjustment, see How to Adjust a Frameless Shower Door Hinge.
